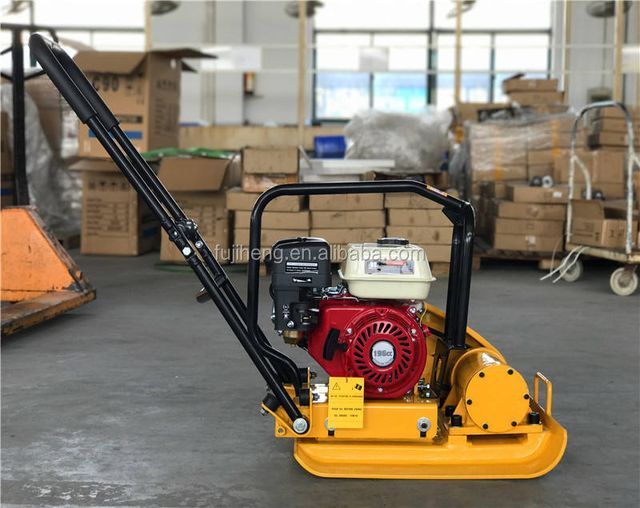

China (Plate Press) Gasoline Engine C90 Plate Press

Product details
payment terms:L/C, T/Tproduct name:Vibratory plate compactor
Health status:newstrength:5.5 hp
Supply capacity:30000 sets per monthPackaging Details:Make new carton and logo design for customers
Power type:gasolineOrigin:Jiangsu, China
port:ShanghaiCertification:ISO9001, CE, EPA
Dimensions (L*W*H):780*450*1265MMapplication:to compact
After-sales service provided:Engineers available to service machinery overseasbrand:OEM production
Product Description



Model

FSHC-90

FSHC-100

FSHC-140

type

vibrating

vibrating

two-way

Sheet size L*W(mm)

550*420

610*460

600*480

Maximum driving speed(m/min)

15-20

15-20

20-25

limited climbing ability

20

20

20

frequency (rpm)

5600

5600

3840

Impact force(KN)

13

20

30

engine model

FSH20-A 5.0HP

FSH20-A 5.0HP

FSH20-A 5.0HP

start the system

recoil starter

recoil starter

recoil starter

Package size(L*W*H)mm

600*470*730

650*480*700

700*500*800

20 feet unit

108

108

60

net weight/kg)

85

97

110
