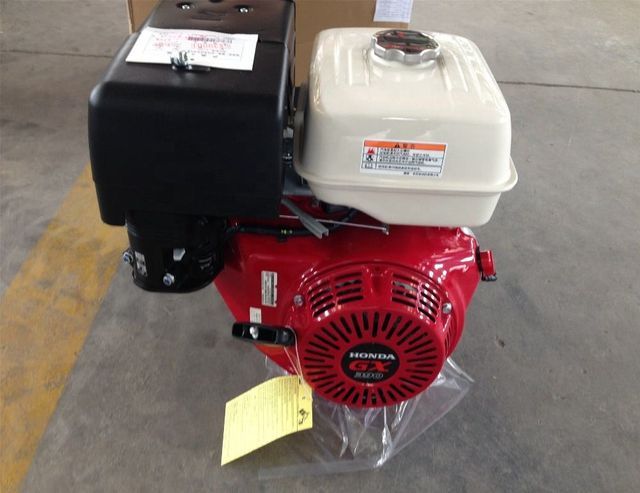

GX390/15HP gasoline engine/single cylinder engine/Japanese engine

Click here to contact

Product details

type:	piston	Marketing Type:	2020 New Products
Applicable industries:	Hotels, building material stores, machinery repair shops, farms, home use, food stores	Health status:	new
brand:	Processing	Supply capacity:	500 pieces per day
port:	Shanghai	payment terms:	L/C, D/P, T/T
Engine type:	gasoline	Package preview:
Showroom location:	not any	Warranty:	1.5 years
Packaging Details:	Brown carton, you can choose colored carton with your own brand	Local service locations:	not any
Mechanical test report:	if	Origin:	Jiangsu, China
color:	as you need	After Warranty Service:	Video Technical Support, Spare Parts
engine model:	192f	Video outbound inspection:	if

Model	GX160	GX200	GX390
engine type	Air-cooled four-stroke OHV	Air-cooled four-stroke OHV	Air-cooled four-stroke OHV
Bore x stroke	68×45mm	68×54mm	88×64mm
shift	163 cubic centimeters	196 cubic centimeters	389 cubic centimeters
Net Power Output*	4.8 hp (3.6 kW) @ 3,600 rpm	5.5 hp (4.1 kW) @ 3,600 rpm	11.7 hp (8.7 kW) @ 3,600 rpm
net torque	7.6 lb-ft (10.3 Nm) @ 2,500 rpm	9.1 lb-ft (12.4 Nm) @ 2,500 rpm	19.5 lb-ft (26.4 Nm) @ 2,500 rpm
PTO shaft rotation	Counterclockwise (from PTO shaft side)	Counterclockwise (from PTO shaft side)	Counterclockwise (from PTO shaft side)
Compression ratio	9.0:1	8.5:1	8.2:1
Light/Charging Coil Options	25W, 50W/1A, 3A, 7A	25W, 50W/1A, 3A, 7A	25W, 50W/1A, 3A, 10A, 18A
carburetor	Butterfly	Butterfly	Butterfly floating
Ignition system	transistor magneto	transistor magneto	Digital CDI with Variable Timing
start the system	recoil starter	recoil starter	recoil/electric
lubrication system	splash	splash	splash
Speed control system	Centrifugal machinery	Mechanical	Centrifugal mass type
air purifier	Duality	Duality	Duality
oil capacity	0.61 US quarts (0.58 liters)	0.63 US quarts (0.6 liters)	1.16 US quarts (1.1 liters)
Fuel tank capacity	3.3 US quarts (3.1 liters)	3.3 US quarts (3.1 liters)	6.4 US quarts (6.1 liters)
fuel	Unleaded Octane 86 or higher	Unleaded Octane 86 or higher	Unleaded Octane 86 or higher
net weight	33 lbs. (15.1 kg)	35 lbs. (16.1 kg)	69 lbs (31.5 kg)
