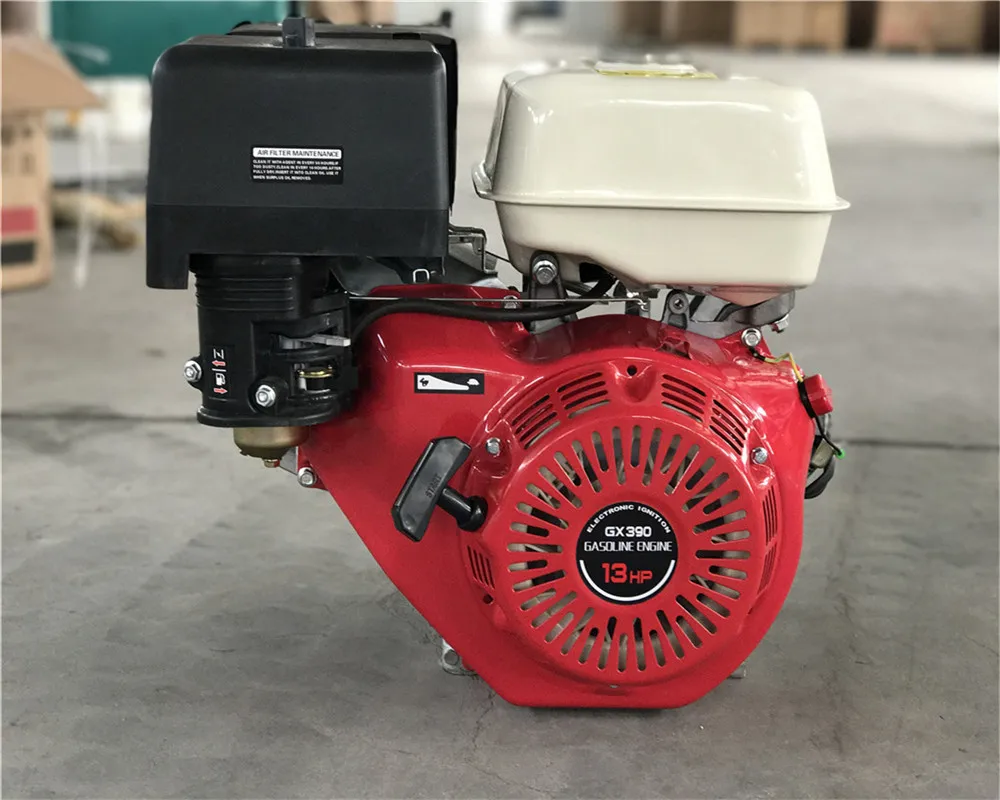

HONDA 13 HP GX390 gasoline engine

Supplier: Yancheng Fujiheng Power Machinery Company Limited
Region: Jiangsu, China
Contact: Mr Tang Red
Price: $40.00 / >=50 sets
Min. Order: 50 sets

Click here to contact

Product details

model:	GX390	stroke:	4 stroke
Packaging Details:	Export standard carton packing for each unit	After-sales service provided:	Overseas service center available
start:	other	cylinder:	single cylinder
Health status:	new	payment terms:	L/C, T/T
Supply capacity:	500 sets per day	fuel:	gasoline
Warranty:	1 year	cool style:	air cooled
usage:	other	Origin:	Jiangsu, China
Dimensions (LWH):	390335365mm	port:	Shanghai
Certification:	CE certification	brand:	Honda
color:	Red	weight:	16 kg

Model	GX160 (FSH-168F)	GX200 (FSH200)	GX270(FSH177F/P)	GX390(FSH188F/P)
engine type	(air-cooled; four-stroke; OHV; single cylinder)
Bore x stroke	68x45(mm)	68x54(mm)	77*58mm	88*64mm
shift	163cc	196cc	270cc	389cc
Compression ratio	8.5: 1	8.5: 1	8.2:1	8.0:1
maximum power output	(5.5HP)4.1kw	(6.5HP)4.8kw
Rated output power	(5.5HP)3.1kw	(6.5HP)3.8kw	9HP/5.4KW	13HP/8.2KW
Maximum torque	10.8N. rice	13.2N. rice
Ignition system	TCI Corporation
start the system	recoil start
Oil system capacity	0.6 liters		1.1 liters
fuel capacity	3.6 liters		6.0L	6.5L
Fuel consumption	≤395g/kW/h		≤374/kw.h	≤374/kw.h
Dimensions (LxWxH)	385330350mm		455420475mm	510420475mm
net weight	17 kg		27 kg	34 kg

Product strength:
very low noise
small and light
low fuel consumption
For pumps, generators, construction machinery
The original recoil starter marks the engine starting easier and stable performance

application:

A simple, compact and lightweight engine suitable for a wide range of applications. Ideal for farming, rental, construction sites and home use.
