ceramic microfiltration membrane for wine filtration with PLC control
-
Supplier: ZIBO DONGQIANG MEMBRANE TECHNOLOGY CO.,LTD. -
Region: Shandong, China -
Contact: Mr yuanqiang zhao -
Price: $3000.00 /piece -
Min. Order: 1 piece
| pore size: | 500nm; | Payment Terms: | L/C,T/T,Western Union,paypal; |
| Place of Origin: | Shandong China; | Brand Name: | DQ; |
| After Warranty Service: | Online support; | Local Service Location: | none; |
| After-sales Service Provided: | No overseas service provided; | Warranty: | 1 year; |
| Applicable Industries: | Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Retail,Construction works ,Energy & Mining,Food & Beverage Shops; | Length (mm): | 200-1500mm; |
| Condition: | New; | Supply Ability: | 30 Piece/Pieces per Month; |
| Showroom Location: | none; | Port: | Qingdao; |
| Processing: | Filter; | Packaging Detail: | wooden carton; |
| Product type: | cross flow filter; | Certification: | CE,CE; |
| Model Number: | DQCMF; | housing: | stainless steel; |
| Processing Types: | Juice; |

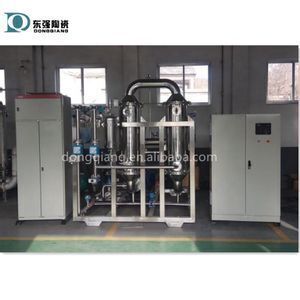

ceramic microfiltration membrane for wine filtration with PLC control
1:System Components:
Membrane module(membrane,ss housing),feed tank,centrifugal pump,flow/pressure /temperature meter,electric control panel,valves and pipes;
Type of module(number of membranes/housing) : 1,3,7,12,19,37,61,91 pcs
Length of membrane: 250-1200mm
Outer diameter of membrane: 12/25/30/40/52/60mm
Material of body: SS304,SS316L,Titanium,FRPP,MSRL;
Material of seals: EPDM;Fluoro Rubber;Silicon;
2: Filtration mode: cross flow filtration;
3: Properties:
Support material: | α-alumina |
|
|
Pore sizes: | UF: 10,20,30,50nm |
| |
MF: 100,200,500,800,1200nm |
| ||
Membrane material: | Zirconia,Titania,Alumina |
| |
Length of membrane: | 250-1200mm(special length upon customer's request) | ||
Outer diamater: | 12/25/30/40/52/60mm |
|
|
Working pressure: | ≤1.0MPa |
|
|
Burst pressure: | ≥9.0MPa |
|
|
Working temperature: | -5-120℃ |
|
|
PH range: | 0-14 |
|
|
4: Specification:
5:Cleaning: CIP
6:Applications:
Separation of liquids and solids;separation of oil and water;separation of liquids and liquids;
(especially for filtration of food and beverage industries,chemcical and petrochemical industries,
pharmaceutical and mining industries.)
7: Ceramic Membrane Comparison with traditional filtration system
Compared with such tradition filter like Filter Press, Centrifuge, DE Filter and organic membrane, Ceramic Membrane has many unique advantages.
1. Excellence resistance to acid, alkaline and oxidation chemicals.
2. Solvent stability, high thermal stability.
3. Fine reparability with narrow pore size distribution.
4. Extremely long work life compared with polymeric membrane.
5: Easy to be cleaned and sanitized with back flush.
*For more detailed information,pls contact us.
-
