Paper and leather both sides texture embossing machine

Supplier: Jiangmen Huayue Photographic Equipment Factory
Region: Guangdong, China
Contact: Mr yi che
Price: $2900.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machinery Test Report:	Not Available;	Port:	guangzhou/shenzhen /jiangmen/hongkong;
Key Selling Points:	Easy to Operate;	After-sales Service Provided:	Overseas service center available;
working width:	900mm;	Applicable Industries:	Manufacturing Plant,Printing Shops,Advertising Company;
machine size:	13209301345mm;	Voltage:	220V;
Payment Terms:	T/T,Western Union;	Brand Name:	HY;
working thickness:	20mm;	speed:	15m/min;
Power:	2.5KW;	Video outgoing-inspection:	Provided;
voltage:	220v/50hz;	After Warranty Service:	Video technical support,Online support;
Weight:	350KG;	Marketing Type:	Ordinary Product;
Core Components:	Motor,Gear;	Item name:	Paper and leather both sides texture embossing machine;
Dimension(LWH):	13209301345mm;	power:	2.5kw;
Supply Ability:	200 Set/Sets per Week;	Condition:	New;
Showroom Location:	none;	Warranty of core components:	1 Year;
Packaging Detail:	Standard export wooden box Paper and leather both sides texture embossing machine;	Local Service Location:	none;
Place of Origin:	Guangdong China;	Warranty:	one year,ONE YEAR;
Certification:	CE;

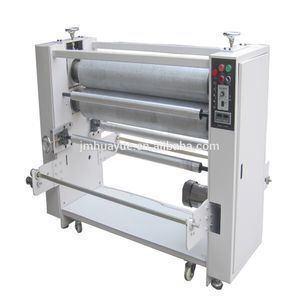

Paper and leather both sides texture embossing machine

This Paper and leather both sides texture embossing machine is designed with CE standard.

It is ideal for double sided embossing texture on photos, papers, posters, etc. Easy to operate, low cost and widely used.

1.Can use paper , card,gift box and name card,business card,foil paper, aluminum foil and so on .

2.Can be do texture embossing ,or double sides make texture embossing effect as your choice .

3.Automatic fix temperature.

4.low cost, environmential protection.

5.after embossing good touch and good looking .

6.Pneumatic controlled, more convenient.

Specification

Paper and leather both sides texture embossing machine(YFM-C)
Specification	24 inches	800
Max working width	630mm	780mm
Max working thickness	20mm	20mm
Temperature range	100-130°C	100-130°C
Speed	14m/min	14m/min
Max. press	1.0 MPa (10.2cm²)	1.0 MPa (10.2cm²)
Power supply	AC220V/50HZ	AC220V/50HZ
Power consumption	2.3KW	2.5KW

For the country which use power supply in 110V, we will send you one power transformer together to 110V with the machine and you can use it. But buyer need to pay extra USD250.

Feature

Paper and leather both sides texture embossing machine

Quality and reliable product

Lower production cost,less wastes

1) The photo is IS GOOD EFFECT

2) Glossy and Matt film both available.
3) Excellent adhesive on photo.
4) High transparency, make the color so beautiful.
5) Enhancing colors and sharpening images.
6) Anti-corrosion, prevent the image from scratching, moisture, polluted. mildew, yellow etc.
7) Environmental protection.
8) Photos can be kept longer after laminating.

Consumables: BOPP film (Pre-coated film)

Machine for hot lamination	Hot film roll laminating machine, Thermal roll laminating machine, BOPP film roll laminating machine, etc.
Heating temperature	General printing products: 70-85 degrees; Special printing products: 85-95 degrees.
Pressure	8-15Mpa
Speed	8-20m/min
Remark	Special printing products mean products with thick ink layers, deep colours, high moisture content and heavy paper basic weight

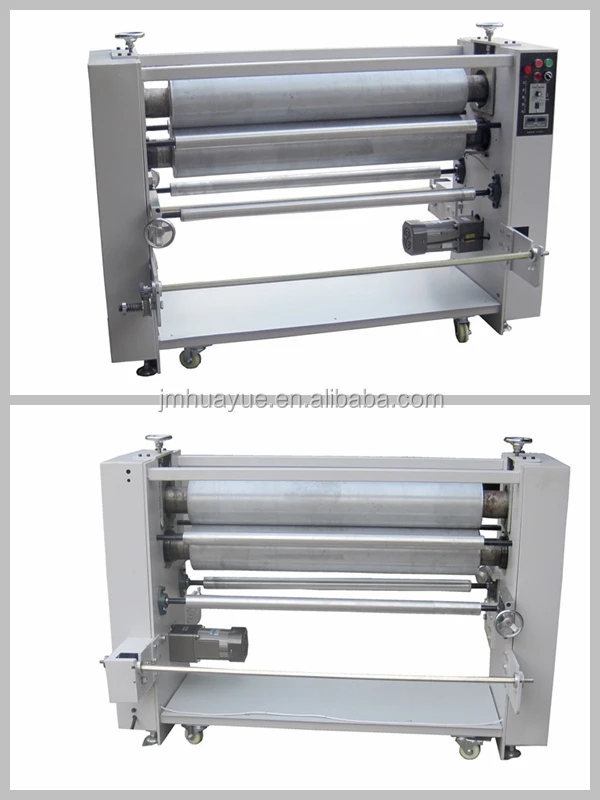

Machine details and effect

Company details

Container loading:

Payment

Customers can choose the payment terms you accept.

Shipping

Because the machine is very heavy, it is always transported by ocean shipping. The ocean shipping cost depends on the destination port and package size. Port to port.

We arrange the local shipment,which’s easy for you to control the transportation cost. If your own forwarder in China can help you to handle the export ,we also accept the factory price(EXW.)

If you need the machine very urgently. We can also ship by air and express. We have good cooperations with them, this saves your shipping cost and guarantee your goods safe.Please contact for the shipping cost.

**Please note: Import duties, taxes and charges are not include in the item price or shipping cost. These charges are the buyer's responsibility. Please check with your local custom office to know the details.

Warranty

One year warranty from you receive the item.
We will provide free replacement part in warranty. (Eliminate vulnerable and artificial damage.) But any warranty shipping cost is responsible by buyer.
Installation labor is your responsibility. (We have detailed instrution of parts replacing.)
For the sales service of our product, we will provide free technical support of equipment lifelong.
