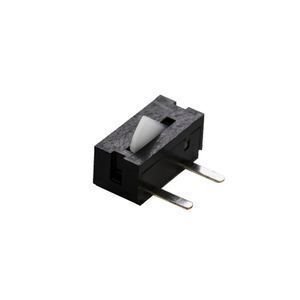

KFC-V-105-2 small limit switch smd smt 2 pin tact switch high temperature resistance camera switch

Product details
Gross weight per batch:0.5 KG;Model Number:KFC-V-105-2;
Selling Units:Multiple of 1,000;Insulation Resistance:100m;
Operating Temperature:-25-70;Max. Voltage:30V;
Place of Origin:Zhejiang China;Circuit:NO;
Package size per batch:20X10X10 cm;Brand Name:KANGERLE;
Packaging Detail:1000pcs in a bag, then in a box;Max. Current:0.1A;
Product Description
 Product Name Chinakel Detector Switch V/W
 Rated Load DC 30V 0.1A
 Temperature -25-70°C
 Operating Force ≤ 1N(100gf)
 Contact Configuration NO, NC
 Insulation Resistance ≥ 100MΩ
 Contact Resistance ≤ 500mΩ
 Withstand Voltage AC 500V/min
 Life ≥ 50000 times
