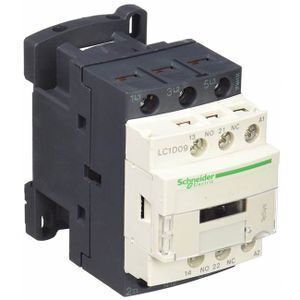

100% original made in indonesia LC1D09M7 220 VAC 9A Schneider TeSys Contactor

Product details
Single package size:40X30X15 cm;Product Name:Schneider LC1D09M7 TeSys D contactor Schneider Contactor;
Packaging Detail:40pcs per carton each carton/ G.W 16KGs/ 40*30*30cm;Number of Poles:3;
Number of Pole:3;Series:LC1;
Power Rating:4KW;Contact Voltage Rating:690VAC;
Place of Origin:Indonesia;Single gross weight:17.5 KG;
Coil Voltage:220 Vac;Mounting Style:DIN Rail Mount;
Main Circuit Rating Voltage:<= 690 V DC for power circuit;Phase:3;
Model Number:LC1D09M7;Main Circuit Rating Current:9 A (<= 60 °C) at <= 440 V AC AC-3 for power;
Electricity Type:AC;Selling Units:Single item;
Number Of Auxiliary Contacts:2;Certificate:UL CE ROHS;
Contact Current Rating:9A;Package Preview:;
Brand Name:Schneider;

Schneider LC1D09M7 TeSys D contactor / Schneider Contactor





Product Description

Specification

Schneider LC1D09M7 TeSys D contactor / Schneider Contactor

Brand/Series

TeSys D Series

Coil Voltage

220VAC

Contact Current Rating

9A

Current, Rating

9 A

Depth

86 mm

Dimensions

77 x 45 x 86 mm

Enclosure Type

IP2x

Horsepower Rating

7.5HP

Length

77 mm

Mounting Type

DIN Rail, Plate

Number of Poles

3 Pole

Power Rating

5.5kW

Primary Type

Contactor

Size

77 H x 45 W x 86 Dia. mm

Special Features

Motor Control, Resistive Load

Standards

CCC, CSA, DNV, EN 60947-1, EN 60947-4-1, GL, IEC 60947-1, IEC 60947-4-1, JEM 1038BV, LROS, RINA, RMRoS, UL

Temperature, Operating, Maximum

60 °C

Temperature, Operating, Minimum

-5 °C

Temperature, Operating, Range

-5 to +60 °C

Terminal Type

Screw Clamp

Type

General Purpose

Voltage, Control

220 VAC

Voltage, Rating

690 VAC, 300 VDC

Width

45 mm
