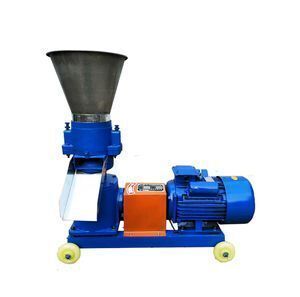

Wood pellet mill machine/sawdust pellet machine/wood pellets making machine price

Supplier: Zhengzhou Zhuomiao Import & Export Trading Co., Ltd.
Region: Henan, China
Contact: Mr Gao
Price: $300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	900300800mm;	Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Farms,Home Use,Food Shop,Food & Beverage Shops;
Key Selling Points:	Easy to Operate;	Voltage:	220,380V;
Warranty:	1 Year;	After Warranty Service:	Video technical support,Online support,Spare parts;
Core Components:	Bearing,Motor,Gear,Engine,Gearbox;	Video outgoing-inspection:	Provided;
Power (kW):	4;	Local Service Location:	none;
Showroom Location:	none;	Supply Ability:	10000 Set/Sets per Month;
Output (kg/h):	50 - 80 kg/h;	Motor Power (Kw):	4;
Weight (KG):	105 KG;	After-sales Service Provided:	Online support;
Brand Name:	ZHUOMIAO;	Pellet Diameter (mm):	2 - 6;
Place of Origin:	Henan China;	Application:	Poultry Farm;
Payment Terms:	L/C,T/T,Western Union;	Certification:	ISO9001;
Port:	Qingdao;	Raw Material Processed:	Grass,Rice Husk,Wood Sawdust,Biomass,Straw,Cotton Stalks;
Condition:	New;	Marketing Type:	Ordinary Product;
Packaging Detail:	Wooden case;	Machinery Test Report:	Provided;
Warranty of core components:	1 Year;

Animal Feed Pellet Machine

The poultry feed pallet machine is widely used to produce feed pellets and biomass fuel pellets. Wide Application Range: Any kind of biomass materials containing wood fiber, such as peanut shell, bagasse, castor shell, straw, sawdust, coffee grounds, rice husk, sunflower shell, cotton stalk, tobacco residue, leaf mustard stalk, bamboo, jute residue, tea residue, wheat-straw, palm shell, bean shell, coconut shell, dregs of decoction, and wood waste, etc.

Features:

(1) Adopt reduction box with low noise, long lifespan gear and can rotate forward and reverse. Other manufacturers adopt low cost bevel gear that cannot rotate reverse.

(2) The pressing die and main shaft adopt Cr12, which is more wear-resisting because of high Cr content. The special heat treatment makes their hardness to be 60HRC. Other manufacturers use 45# instead with low hardness and wear-resistance.

(3) The roller, pressing die, main shaft and roller shaft are processed by vacuum heat treatment other than carburizing and quenching (that other manufacturers use) to have higher hardness, wear-resistance and longer lifespan.

(4) The sealing of spare parts for small pellet machine is excellent. The roller shaft is sealed on both sides, while other manufacturers only seal one side.

(5) The feeding hopper applies whole sheet metal edge instead of welding to be more stable and firm.

(6) The compression ratio of small pellet press determines the quality of your pellets. We have professional team doing the raw material test and have obtained best compression ratio for over 20 kinds of common seen biomass.

(7) The electric components adopt top brands in China to guarantee stable performance.

Specifications:

Model	Motor(kw)	Capacity(kg/h)	Speed(RPM)	Dimension(mm)	Weight(kg)
KLJ-120	3	20-40	320	10205301120	66
KLJ-125	3	40-50	320	10405501140	78
KLJ-150	4	75-125	320	12806001250	94
KLJ-180	7.5	125-175	320	14007501300	138
KLJ-210	11	200-250	320	15008501400	189
KLJ-260	15	350-500	380	19008001600	300
KLJ-300	18.5	500-800	380	20008601700	410
KLJ-360	30	800-1200	400	20809001750	550
KLJ-400	337	1200-1500	400	220012001950	660
