Name: | Extrusion Machine; | Plastic Processed: | PE,PP,ABS,HDPE,PPR; |
Screw Design: | Single-screw; | Dimension(L*W*H): | 1500mm*1080mm*1350mm; |
Applicable Industries: | Building Material Shops,Manufacturing Plant,Farms,Retail,Construction works ,Energy & Mining; | Output (kg/h): | 1 - 5; |
Voltage: | 220,380v; | Application: | PIPE,Profile; |
Power (kW): | 1.5; | Packaging Detail: | Wooden case; |
Local Service Location: | none; | Place of Origin: | Jiangsu China; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; | Condition: | New; |
After-sales Service Provided: | Video technical support,Online support; | Weight: | 200kg; |
Usage: | Wide Usage; | Supply Ability: | 50000 Set/Sets per Month; |
Certification: | ISO9001; | Screw L/D Ratio: | 28:1; |
Key Selling Points: | Multifunctional; | Warranty: | 1 Year; |
After Warranty Service: | Video technical support,Online support; | Showroom Location: | none; |
Screw diameter (mm): | 25; | Brand Name: | ZHUOMIAO; |
Raw material: | PP PE Granules; | Screw Material: | 38CrMoAlA; |
Port: | Qingdao,Ningbo,Shanghai; |
single screw extruder specially designed for PP PE HDPE pellets extruding, it also can combine with the PP PE PC pipe production line, PP PE PC profile production line.
We produce Single screw extruder, and also high speed high efficient Single screw extruder.
The set is advanced in design,high in output,good in plasticization and low in energy consumption.
The involute gear driving is characterized by low noise,stable running,big bearing capacity and long service life.
Single screw extruder' screw structure also can re-designed accoring to customer's detail raw material and the purposes.

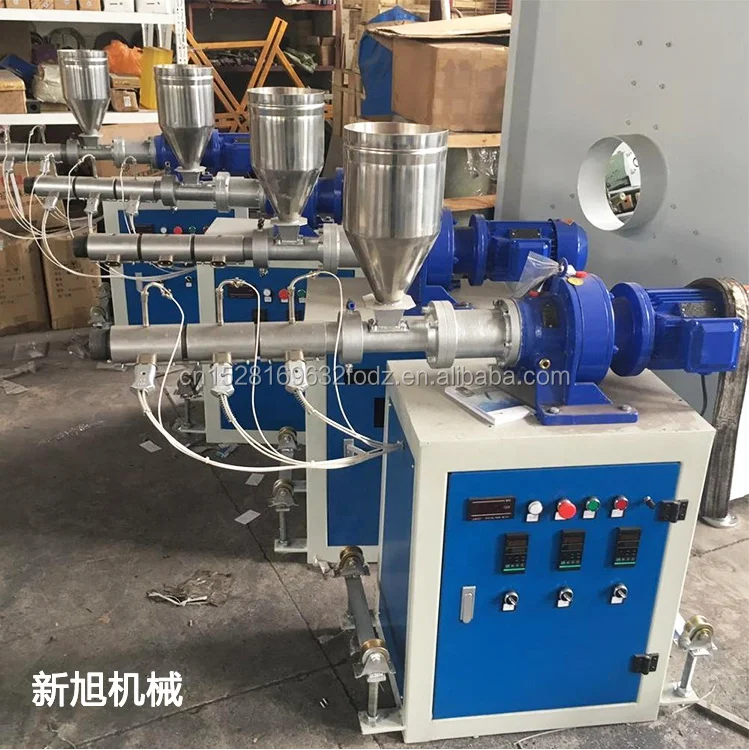

we have many kind of types,such as 25/25;30/25;35/25;45/25;45/28;45/30;50/28;55/25;65/28; 65/30;65/33;70/30;75/33;90/30;90/33;120/15;120/22;120/32;120/33;130/32;150/10;150/30;180;200......etc ,some small single screw extruder be equipped as colormark co-extruder ,or lab extruder; some big single screw extruder ,together with our auxiliary machine,will be equipped as whole production line to make pipe,to make profile, to make granule.
For pipe making machine, we can supply machine for pipe diameter from 16mm to 630mm,
different diameter range will be equipped with different machines.
For granulating line, there is different capacity,different type,
such as single stage string granulating line;
double stage string granulating line;
water ring granulating line.

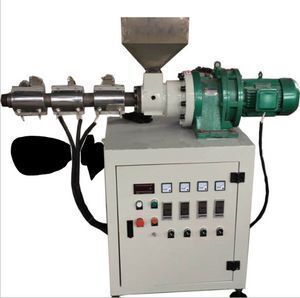

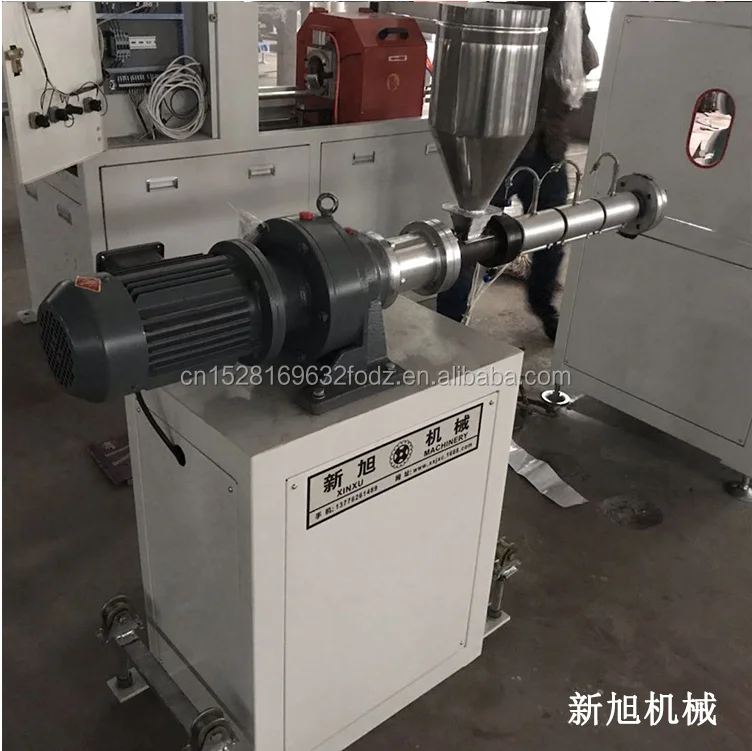

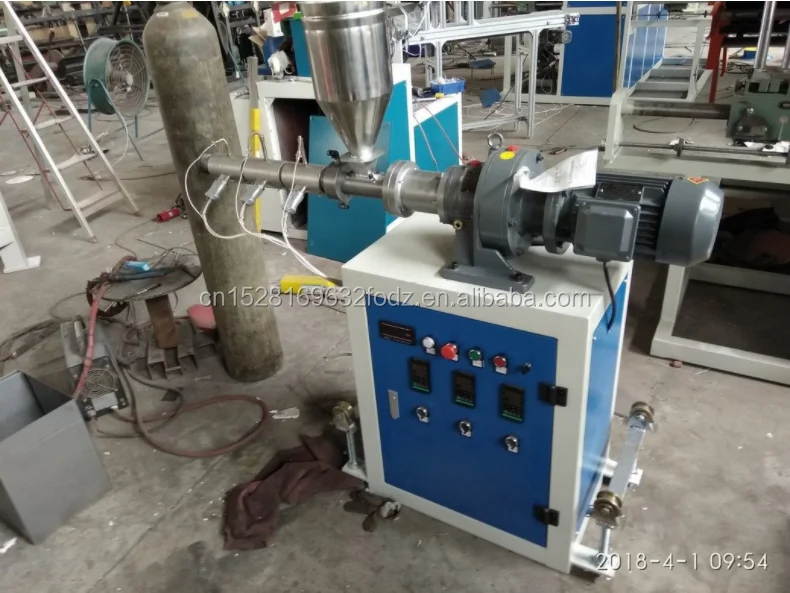

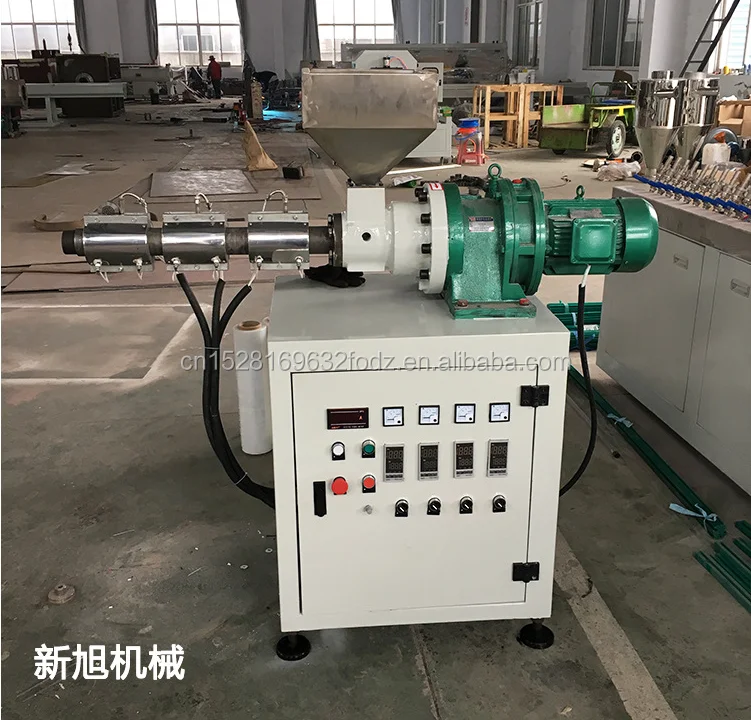

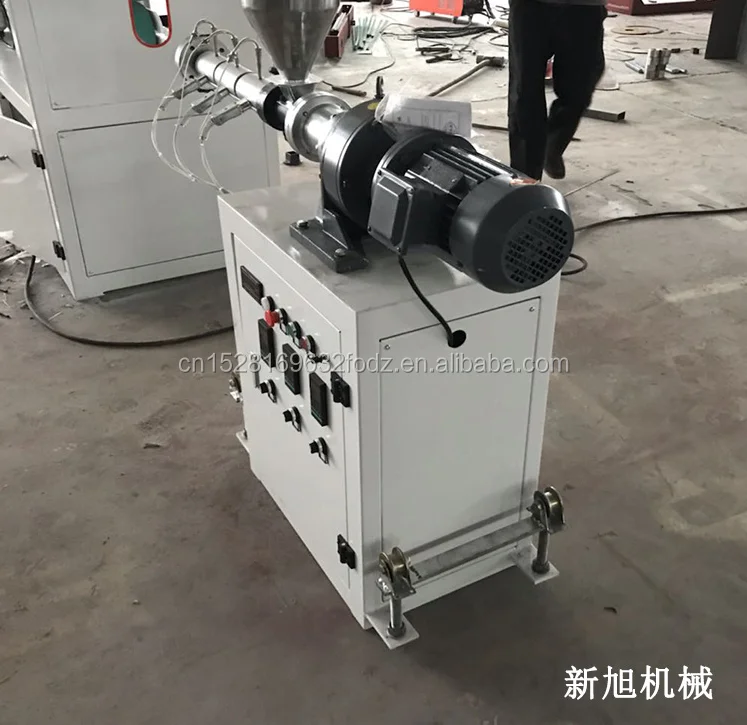

Here I offer one of our small Single screw extruder SJ25/25 for your reference.
The SJ25/25 generally is used as co-extrusion head to improve the tube with color line of PE,PVC pipe production line.
Detail parameter of mini Single screw extruder as below:
Model | L/D Ratio | Output(kg/h) | Screw Speed(r/min) | Power(KW) | Central Height(mm) |
SJ-25 | 25/1 | 5 | 20-120 | 2.2 | 1000 |
SJ-30 | 25/1 | 10 | 20-180 | 5.5 | 1000 |
SJ-45 | 25-33/1 | 50-150 | 20-150 | 7.5-22 | 1000 |
SJ-65 | 25-33/1 | 60-250 | 20-150 | 22-90 | 1000 |
SJ-75 | 25-33/1 | 200-350 | 20-150 | 55-110 | 1100 |
SJ-90 | 25-33/1 | 180-550 | 20-110 | 37-185 | 1000-1100 |
SJ-120 | 25-33/1 | 320-800 | 20-90 | 75-280 | 1000-1250 |
SJ-150 | 25-33/1 | 400-1200 | 20-75 | 90-355 | 1000-1300 |
- world famous brands major parts:
- Skilled workers for machines producing
- Experience engineers all with passports ready for customers services
- Good Prices get from square quantity major parts purchase with lower cost
- Full line running test for customer checking before delivery
