20~110mm PE pipe production line plastic pipe making machine

Supplier: Zhangjiagang Huede Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr Paul Yu
Price: $25000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Packaging details:	PE packaging or fumigation-free wooden box packaging	Screw speed (rpm):	110 rpm
Applicable industries:	Building Materials Stores, Machinery Repair Shops, Food and Beverage Factories, Household Use, Construction Engineering, Energy and Mining, Food and Beverage Stores, Advertising Agencies	Screw diameter (mm):	65
Key words:	PE pipe production machine	Core component warranty:	2 years
Health status:	new	weight:	6000kg
Screw material:	38CrMoALA	Main selling points:	automatic
port:	Shanghai Port	Complete line length:	25~30m
raw material:	particles	Dimensions (lengthwidthheight):	2500012001700
speed:	4-12m/minute	capacity:	150~300kg/hour
Power (kW):	37	Pipe pressure rating:	0.6-2.5mpa
application:	pipeline	Core components:	Bearings, motors, pumps, gears, PLC, pressure vessels, engines, gearboxes, screws
Mechanical test report:	if	Video outbound inspection:	if
Name:	PE pipe production line	Control System:	Control System
payment terms:	Letter of credit, wire transfer	Plastic processing:	PE, PP, PPR, ABS/PP, HDPE/PP, PE/PP, LDPE
Place of origin:	Jiangsu, China	Screw aspect ratio:	33:1
Showroom location:	Egypt, Brazil, Thailand, Colombia, South Africa, Uzbekistan, Japan, Malaysia	Package preview:
Screw design:	single screw	Warranty:	1.5 years
Supply capacity:	30 sets per month	engine:	Siemens Bader
brand:	Hue(HYD)	Voltage:	220-440V

Product Description

PE pipe production machine

thisPE pipe production line/PE pipe machine/PE pipe production machineIt can be used for HDPE large-diameter gas pipes and PPR water pipes. It has excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, environmental stress cracking resistance, creep resistance, thermal linkage, etc.HDPE pipe machineIt is the first choice for gas and water pipes in the pipeline system between cities and suburbs. Large-diameter HDPE pipes have begun to play a very important role in urban water supply and gas supply systems.

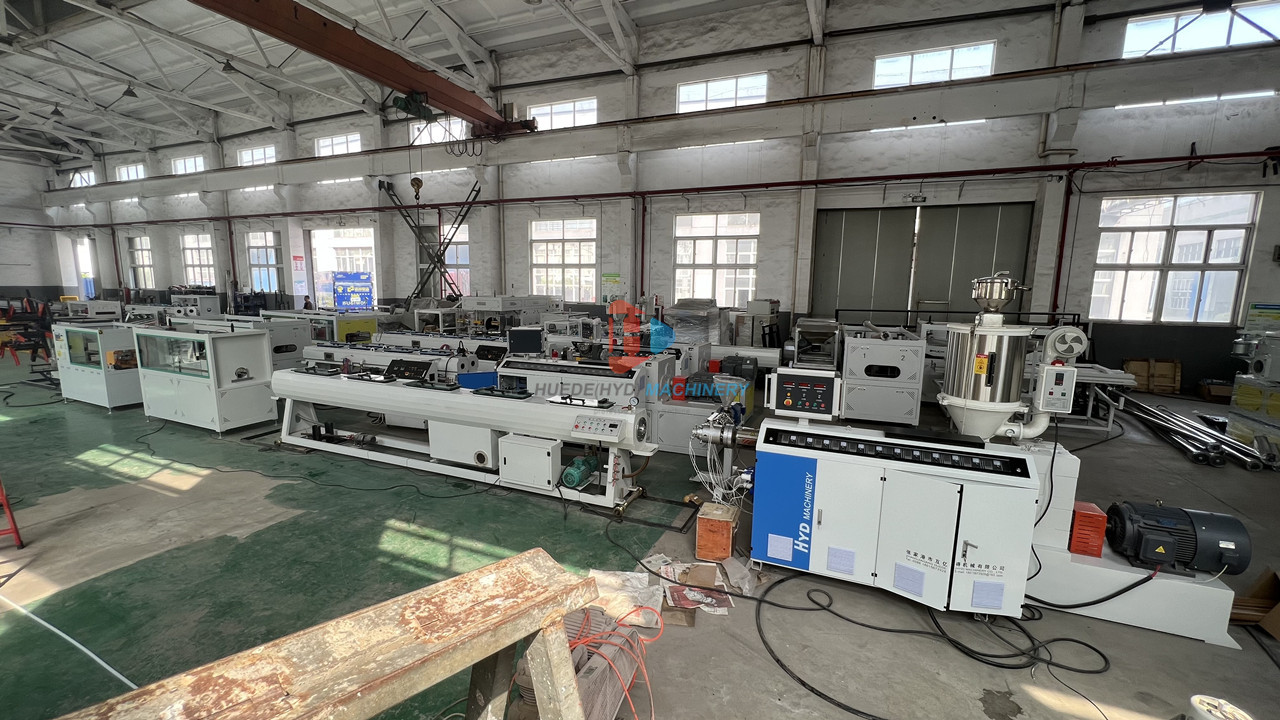

detailed picture

Single screw extruder

Instructions for use: Melt pp pe particles.

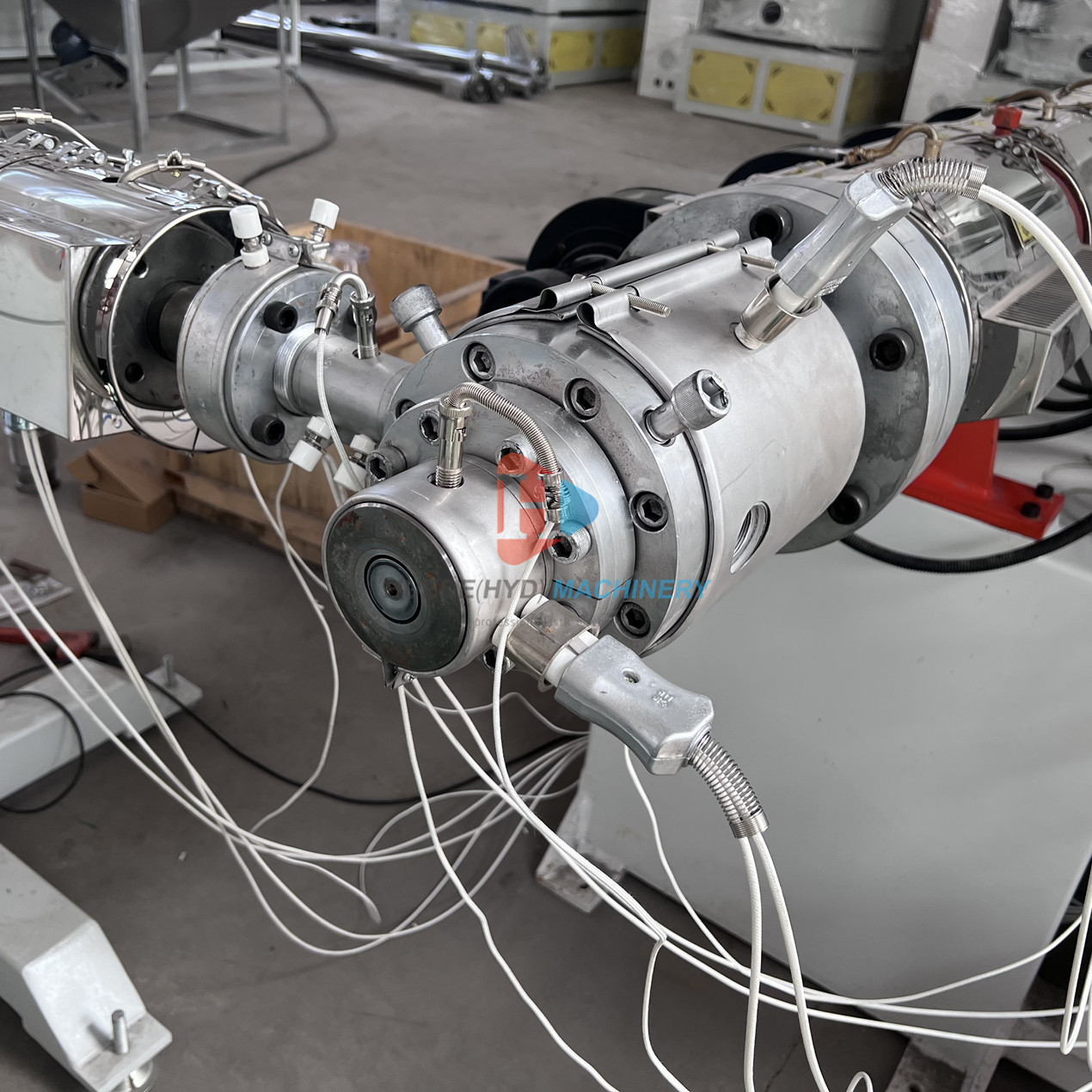

Mold

Purpose: Shape pipes

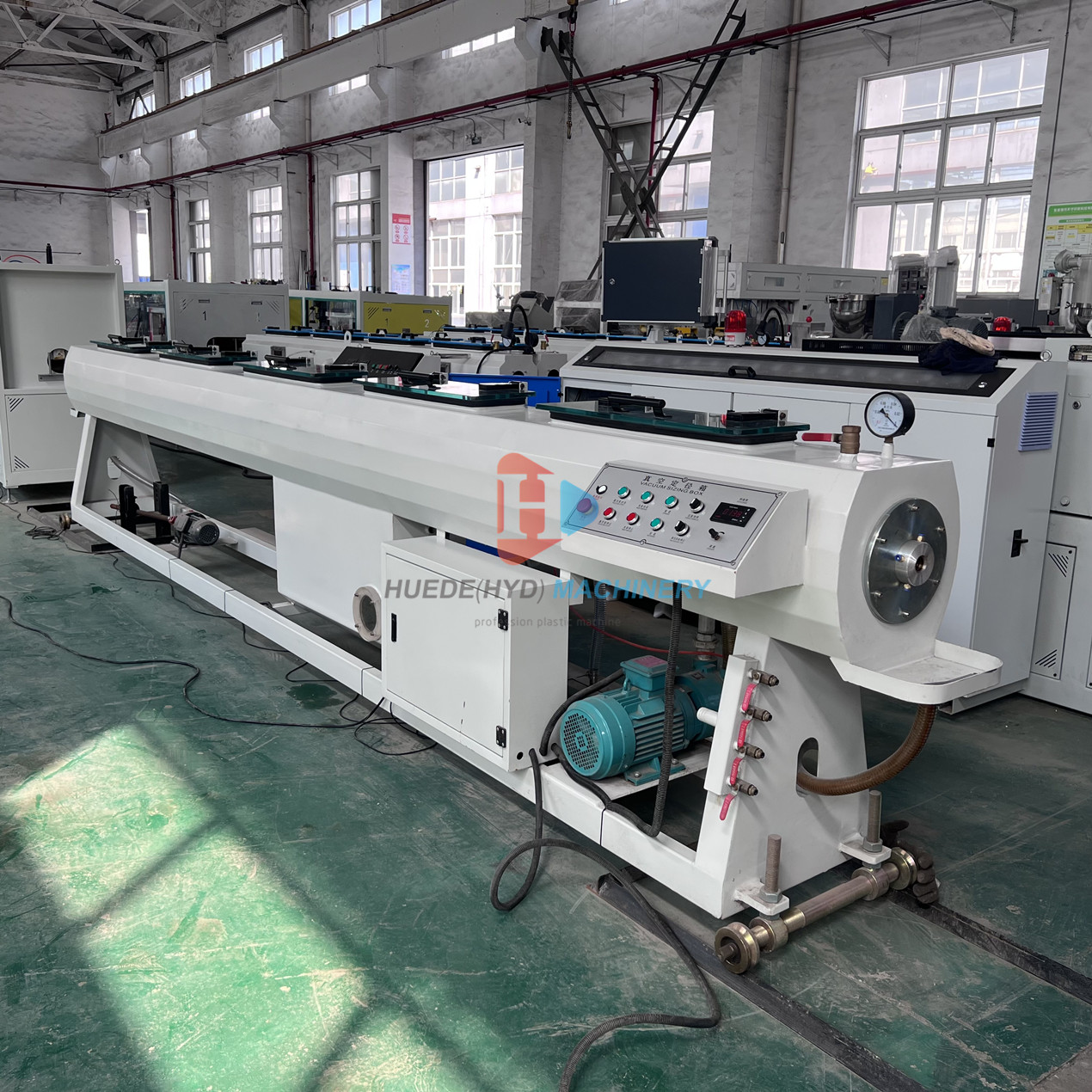

Vacuum forming tank

Purpose: Pipe forming and cooling

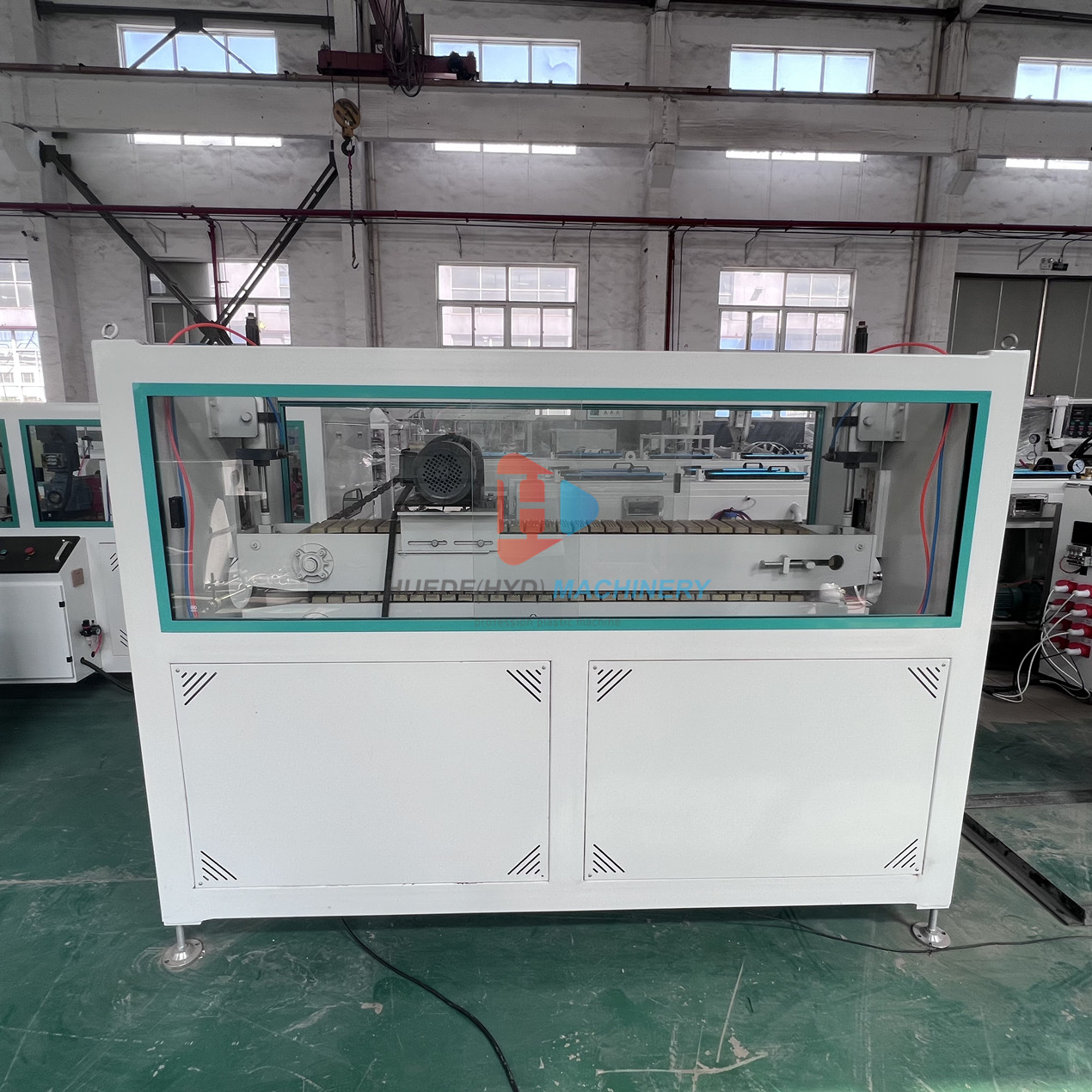

tractor

Purpose: Pull off pipes

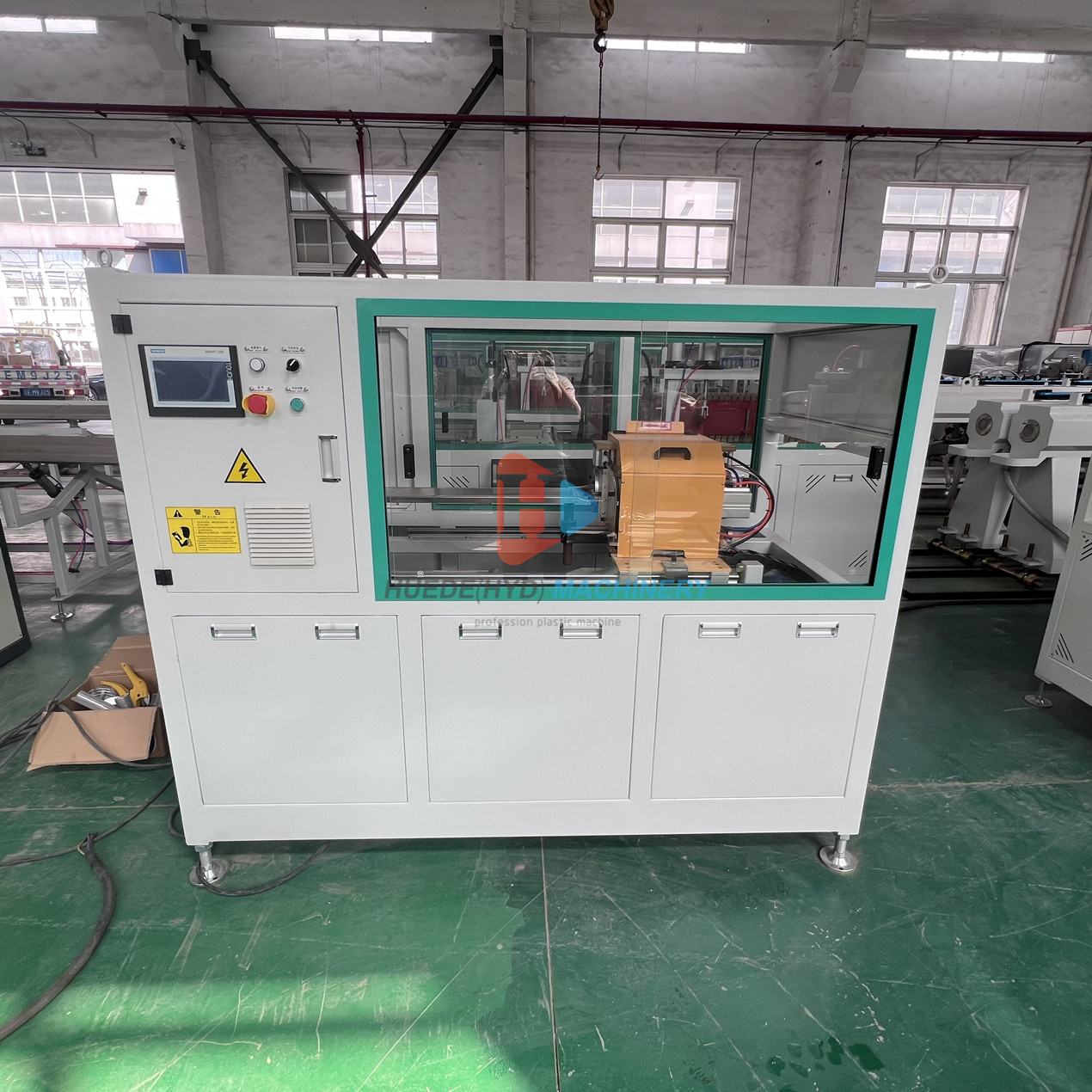

Cutting Machine

Purpose: cutting pipes

Winding machine

Purpose: Roll pipe into rolls

scope

Extruder model	Pipe diameter	Motor Power	length	Pipe pressure rating	capacity
SJ65/33	16~63mm	37kW	25m	0.6~1.6mpa	70~150kg/hour
SJ70/33	16~90mm	45kW	25m	0.6~2.5mpa	80~180kg/hour
SJ65/33 high speed	16~110mm	75kW	30m	0.6~2.5mpa	150~300kg/hour
