Single package size: | 20X20X15 cm; | Measuring Range: | 100G ohms; |
Selling Units: | Single item; | Brand Name: | HABOTEST; |
Display Type: | Analogue and Digital; | Testing Voltage: | 2500v; |
Packaging Detail: | Individual gift box, 20pcs /cartoon; | Operating Temperature: | 0-40 degree; |
Place of Origin: | Guangdong China; | Model Number: | HT5205; |
Dimensions: | 180*140*65mm; | Single gross weight: | 4.0 KG; |
Product name: | digital insulation tester; |

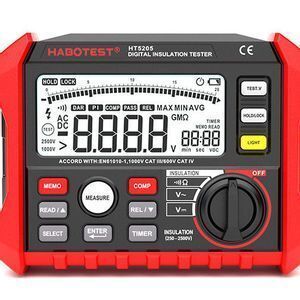

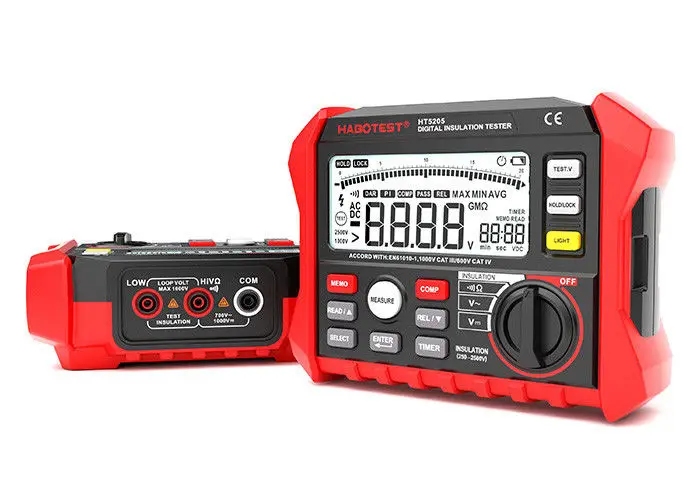

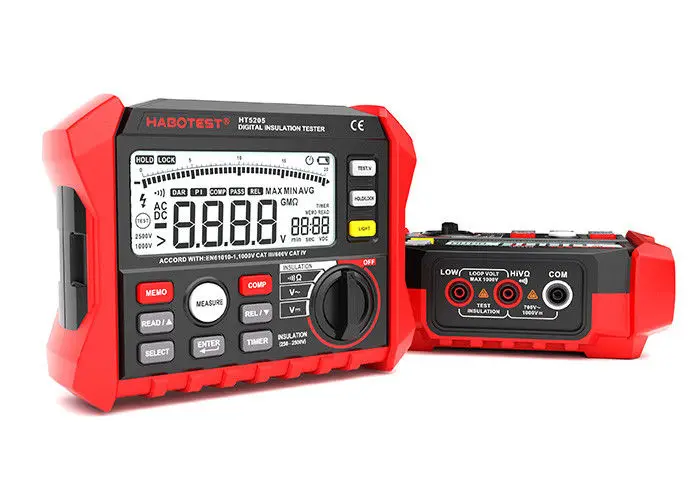

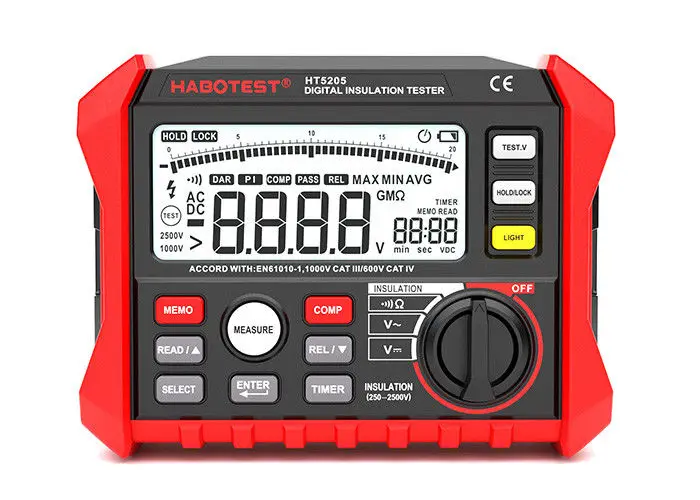

HT5205 Digital 2500V Insulation Resistance Tester megger meter with Multimeter and Analog
Product Features:
Test the insulation resistance with 250V-2500V.
Automatic calculate PI (polarization index) and (dielectric absorption ratio).
With backlight display and auto power off.
Press Hold button to freeze the displayed value. Press again to release the display.
DC and AC voltage test, continuity test.
1. Design according to the IEC61010-1 CAT.III1000V CAT.IV 600V
2. Auto Calculate PI and DAR
3. Store /Load Function
4. Compare function
5. Auto discharge for capacitive load
6. Timer Function for insulation test
7. Lock function for insulation test
8. Digital and analog display
Specifications | ||
Technical Parameter | Output Voltage | Measuring Range |
Insulation Test | 250V (0 %~+20%) | 0.01MΩ~250MΩ ± (3%+5) |
500V (0%~+20%) | 0.01MΩ~500MΩ ± (3%+5) | |
1000V (0%~+20%) | 0.01MΩ~1000MΩ ± (3%+5) | |
2500V (0%~+20%) | 0.1MΩ~2.00GΩ ± (3%+5) 2.00GΩ~20.00GΩ ± (5%+0.2GΩ) 20.0GΩ~100.0GΩ ± (10%+2GΩ) | |
1000V (0%~+20%) | 5.00GΩ~10.00GΩ±(10%+0.2GΩ) | |
Short Circuit Current | 3mA | |
Multimeter Functions | DC Voltage Test | 0.1~1000V±0.5% |
C Voltage Test | 0.1~750V±1% | |
Continuity Test | 0.01Ω~200Ω±0.5% | |
General Parameter | Brand | HABOTEST |
Model | HT5205 | |
Color | Black+Red | |
Power Supply | 6 x 1.5V LR4 Batteries | |
Item Size | 180*140*65mm | |
Weight | pprox. 950g | |
Safety Rating | CE, CAT.III, 1000V,RoHs |
