15KW High Efficient High Frequency PU/PVC Conveyor Belt Welding Machine

Click here to contact

Product details

Applicable Industries:	Garment Shops,Building Material Shops,Machinery Repair Shops,Food & Beverage Factory,Construction works ,Food & Beverage Shops;	Voltage:	Customized;
Condition:	New;	Top Electrode:	1000mm*1000mm;
Items:	High Frequency Industrial Baffle Welding Machine;	Supply Ability:	150 Set/Sets per Month High Frequency Industrial Baffle Welding Machine;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Dimensions:	L2700mmW1200mmH1900 mm;
Usage:	weld pvc/pu conveyor belts;	Power (kW):	15;
Warranty:	1 Year;	Brand Name:	PUXIONG;
After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;	Bottom Worktable:	1360mm*1120mm;
Port:	Shanghai;	Hot Sell Market:	Europe and USA;
Local Service Location:	none;	Key Selling Points:	high efficiency;
Marketing Type:	Hot Product in Europe;	Machinery Test Report:	Provided;
Height of Worktable:	1050mm;	Frequency:	27.12MHZ;
Welding Area:	max.length 1200mm;	Showroom Location:	none;
Power:	15KW;	After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support,Video technical support;
Weight:	900 KG;	Weight (KG):	900 KG;
Video outgoing-inspection:	Provided;	Place of Origin:	Shanghai China;
Packaging Detail:	Wooden cases for High Frequency Industrial Baffle Welding Machine;	Suitable Material:	PVC/TPU;
Certificate:	ISO, CE, TUV,etc;

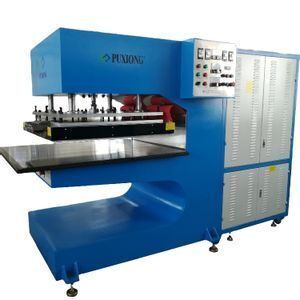

15KW High Efficient High Frequency PU PVC Welding Machine

Product Description

Adopt high frequency welding principle,weld baffle/cleats,sidewall,guides,

profile to PVC/PU conveyor belt,industrial belt and treadmill belt,etc.

1.Welding Effect is More Solid, More Beautiful:With high frequency welding principle

instead of the manual welding type with hot air welder.
2.Versatility:One machine can be used to weld baffle/cleats (straight/inclined),sidewall

and guides,etc.
3.High Production Capacity:The max.welding width can up to 1200mm/time.And it can

weld two or more sets at the same time.
4.Reasonable Structure Design:There’s enough space below the worktable,convenient to

weld various cleats after the conveyor belts’ jointing.
5.Stable Performance,Easy Operation:Design according to internatinal standard,satify

with CE certificate’s requirements.Hot sell to European and USA markets.

Model	PXCB-E05M
Power	15KW
Pressure Mode	Pneumatic ( 0.6Mpa )
Ossilation Frequency	27.12MHZ
Voltage	Customized
Top Electrode	1000mm*1000mm
Bottom Worktable	1360mm*1120mm
Height of Worktable	1050mm
Welding Speed/Production Capacity	45s/pc
Overall Dimension	L2700mmW1200mmH1900 mm
Weight	900 KG

Company Information

Certifications

Exhibition show

Packaging & Shipping

FAQ

1.How to install & run the machine?
The seller offers instruction video,and English version manual will be shipped together

with the machine.If necessary,the seller will offer overseas support.

2.What is warranty of the machine?

Warranty is one year,and maintenance is lifelong.The worn-out parts will be sent

according to the buyer's condition.While guarantee is not valid if the machine is used in

wrong way or it is not maintained as shownin the technical handbook.

3.How to get spare parts?
The seller will enclose some quick wear parts with the machine when buyer places an

order.

4.How to guarantee the machine received in a good condition?

QC department of the seller will control the quality from raw material to the finished

product.When the machine is finished,the seller will send the buyer inspection video or

photos.Or buyer can come to seller’s factory to check it .
