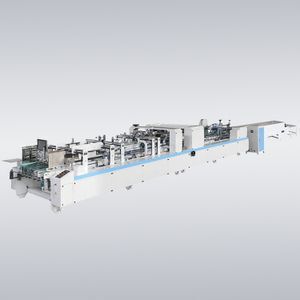

ZH-1050PC-Four Six Corners Fully Automatic Cake Box Carton Box Folding Gluing Machine

Supplier: Zhejiang Zihong Intelligent Packaging Equipment Co., Ltd.
Region: Zhejiang, China
Contact: Mr Derek Lin
Price: $14000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty:	1 Year;	Port:	Ningbo port logistics;
Payment Terms:	L/C,T/T;	After-sales Service Provided:	Engineers available to service machinery overseas,Online support;
Packaging Detail:	wood carton;	Packaging Material:	metal,wood;
Packaging Type:	Cartons;	Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;
Machinery Test Report:	Provided;	Video outgoing-inspection:	Provided;
Supply Ability:	999 Set/Sets per Month;	Driven Type:	Mechanical;
Color:	White Blue;	Condition:	New;
Warranty of core components:	1 Year;	After Warranty Service:	No service;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Voltage:	380V;
Local Service Location:	none;	Application:	APPAREL,Food,Machinery & Hardware;
Marketing Type:	New Product 2020;	Dimension(LWH):	1550019001600;
Showroom Location:	none;	Place of Origin:	Zhejiang China;
Weight:	8.5T;	Type:	Gluing Machine;
Automatic Grade:	Automatic;	Brand Name:	ZIHONG;
Certification:	CE ISO9001;	Key Selling Points:	High-accuracy;

Introduction

ZH-1050AC is a multi function model,suitable for card board,EB flute corrugated board,can do two fold,four fold,and bottom lock.This model has correction device and bottom lock device.Can make electrical adjusting.Has UV destroying device and dust remove device for better gluing effect.

Functions

Auto feeding ,auto correction,creasing ,auto alignment,pnuematic box pressing

Technical Parmeters

Model	ZH-1050PC
Suitable material	Card board,E /B flute corrugated board
Feeding method	Automatic continuous feeding
Max mechanical speed	300m/min
Overall dimension	1550019001600mm
Weight	8.5T
Power consumption	15.5KW
Glue type	Solvent

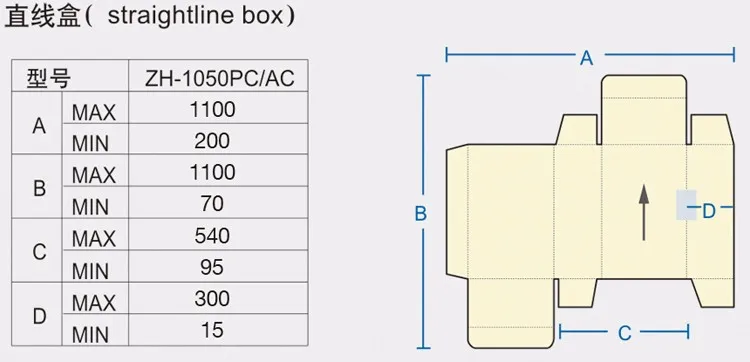

ZH-1050PC/AC
		straightline box	double sides box	crash-lock bottom box	4-corner box	6-corner box
A	MAX	1100	900	1050	950	950
A	MIN	200	250	250	250	250
B	MAX	1100	1000	1100	900	900
B	MIN	70	150	100	150	150
C	MAX	540	90	520	800	800
C	MIN	95	120	120	110	110
D	MAX	300	200	300	200	200
D	MIN	15	10	30	25	25

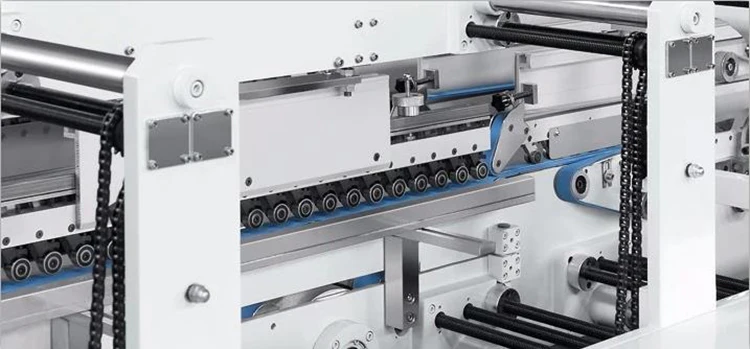

Feeder Section:

Equipped with vibrating motor.
With independent transmission,low noise,with front adjustable wheels,max working capacity can be achieved.
Feeding knives and left and right registers fixing bar are controlled up and down by pneumatic system easily.
Feeding knifes are equipped with pnematic mechanism for smoother feeding.

Paper Alignment System:

Automatic alignment system to correct the paper feeding,avoding the paper going to sides.
UV destroying deivce and dust remove device for better gluing effect.

Bottom Lock Section

Big-volume design,when the machine is running at high speed,the glue will not go out or leaking Optional
bottle is good for long time operation.
Lock-bottom assembly mechanism with high elastic hookers is of deal design,fast and easy operation.

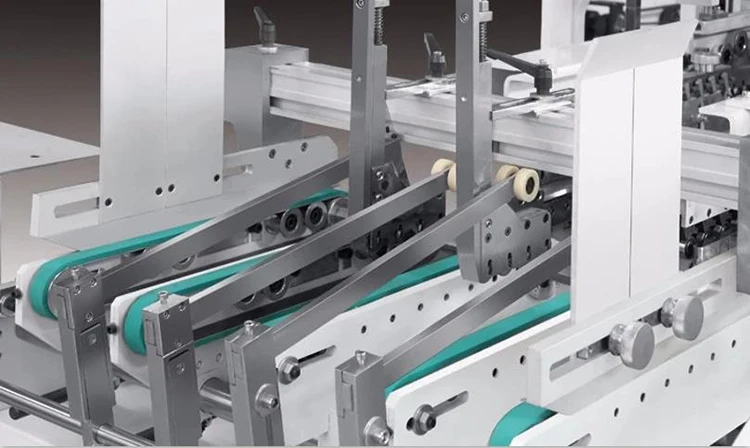

Folding Section

Equipped with speed variator for belts,ensure the folded boxes parallel and in good order
Fast,convenient adjustment and operation can fold boxes perfectly
The middle up and down transmission module can fold boxes synchronously or alternately

About Factory

Warranty Service:

Machines are new (or unused) and the guarantee period will be given thirteen months from shipment date.During this period, the seller will offer free maintenance and free spare parts that causedby the machine’s quality,but the buyer must pay the courier cost.Parts damaged because of mishandling and consumable parts are not covered by any warranty.
