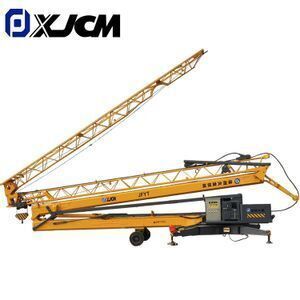

Self erect small 3 ton mini china tower crane for lifting loads

Product details
Package Preview:;Product name:Self erect small china tower crane for liftig loads;
Overall length:14.5m;Overall width:2.3m;
Feature:Tower Crane;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,L/C T/T;
Place of Origin:Jiangsu China;Packaging Detail:Special Package for Self erect small china tower crane for liftig loads;
Max. Lifting Height:25m;Power Supply:380V/50HZ;
Applicable Industries:Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Construction works ,Energy & Mining;Certification:ISO9001;
Brand:XJCM;Port:Shanghai, Qingdao, Lianyungang;
Rated Loading Capacity:3t;Max.load:3 ton;
After Warranty Service:Video technical support,Online support;After-sales Service Provided:Engineers available to service machinery overseas,Video technical support;
Working radius (m):17m;Warranty:1year,1 Year;
Overall height:3.7m;Brand Name:XJCM;
Rated Lifting Moment:Requested;Condition:New;
Local Service Location:none;Supply Ability:100 Set/Sets per Month Self erect small china tower crane for liftig loads;
Application:Construction;Showroom Location:none;
Span:4.2M;

Self erect small china tower crane for liftig loads

Category Item Unit JFYT1720-10 JFYT2527-20 JFYT2527-30
Hoisting parameters  Max.hoisting height m 17 25 25
 Max.working radius m 20 27 27
 Max.hoisting weight Kg 1000 2000 3000
 Hoisting speed m/min 16/32 13/26 13/26
 Trolleying speed m/min 19 20/40 20/40
 Slewing speed r/min 0.8 0.25/0.8 0.25/0.8
 Erecting time min 6 10 10
 Outrigger span  m 3.5x3.5 4.2x4.2 4.2x4.2
 Dead weight Kg 14500 26000 32000
Travel paraments  Max.towing speed Km/h 15 15 15
Hydraulic system  Hydraulic system Mpa 28 28 28
Power supply  Rated Power Kw 11.4 23.1 23.1
 Power supply 380/50HZ
Product showcase

Product Description

Advantages of self erecting tower crane:

1.Without foundation, saving construction cost, low requirement for site conditions.

2.Erecting and starting rapidly.

3.None working on the high level during erecting and dismounting.

4.Mast locked automatically, jib sections connected automatically in the air.

5.No require professional operator,operating simply, mastering easily.

6.Wireless remote operating,reducing working labor strength,having wide operating view.

Transporting wholly.

 PS: Click here to get an accurate quotation

Company Information

Main Products

                  TRUCK CRANE                                  TOWER CRANE                                 MOBILE CRANE

     LIFTING WIRE MACHINE                            PIPELAYER                                  EXCAVATOR BUCKET

Factory Show

    XJCM have our own factory . all the crane are design, made and sold by ourselves, our crane quality have got CQC and SQS. We could supply our products with high quality.

 PS: Click here to get an accurate quotation

FAQ

Q1. Are you trading company or manufaturer?

We are manufaturers. XJCM is a national high-tech enterpsise which professionally designs,       produces and deals with the rough terrian crane and other construction machinery



Q2. Whether the voltage and plug of your products will come with my standard?
We will confirm Voltage and plug with customer and produce machines as the customer’s request.



Q3. Do you provide after sales-service?
Yes, we provide the best after sales-service for our customers.



Q4. What logistics ways we can work for shipment?

We can ship construction machinery by various transportation tools.

For 90% of our shipment, we will go by sea, such as South American, Middle East, Africa, Oceania   and Europe ect; For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan ect., we  can help construction machinery by road or railway.
