Payment Terms: | L/C,T/T,Western Union,MoneyGram; | standard: | IEC/EN 61643-11; |
Brand Name: | THOR; | Place of Origin: | Zhejiang China; |
Phase: | Three Phase; | In: | 5KA; |
Current Type: | DC; | Imax: | 10KA; |
Uc: | 275V AC; | Model Number: | TRS4-D10/275; |
Supply Ability: | 50000 Piece/Pieces per Month; | Packaging Detail: | Carton packaging; |
OEM/ODM: | YES; | Product name: | Surge Protective Device; |
pole: | 4P; | Warranty: | 2 Years; |
Port: | Shanghai; | Certificate: | CE TUV IOS9001; |

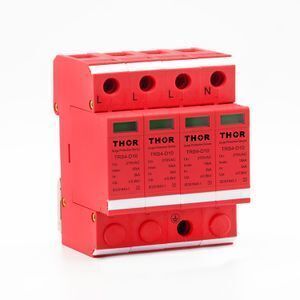

TRS4 Series surge protective device( hereinafter referred to as SPD) are suitable for AC 50/60Hz, rated voltage up to 380v IT,TT,TN-C, TN-S,TN-C-S and other power supply system, it protect to indirect and direct lightning effect or other transient over voltage.
SPD design according with GB18802.1/IEC61643-1 standard.
Ac Surge protector for Power System
Main technical parameters
Main technical parameters |
TRS4-D10 |
Max continuous operating voltage Uc(VAC) |
275 |
Voltage protection level Up(kV)≤ |
0.9 |
Max discharge current (8/20μS) lmax(kA) |
10 |
Nominal discharge current (8/20μS) ln(kA) |
5 |
Response time ns |
<25 |
Degree of protection |
IP20 |
Operating state/ fault indication |
Green/ Red |
Remote signal function |
Can also picking |
Remarks |
Other Uc can be customized |
SPD according to IEC61643-1/EN61643-1 |
type2/ ClassⅡ |
Q: What advantages do you have?
A: We have been manufacturing and exporting SPD for more than 10 years !
We have CE and TUV certification
Q: Can I get some samples?
A: We support small quantity samples order ! please contact with our staff and leave your detail contact information , we will answer you within 24 hours
Q: How long does it take to deliver?
A: Fast delivery : 3~7days after payment
Q: Could you do OEM for us?
A: We have good experience on OEM service
Q: How long is your products warranty ?
A: 3 years warranty
Q: How to pay?
A: We accept T/T, Paypal, Western union, L/C, Trade Assurance
