Payment Terms: | L/C,T/T,Western Union,MoneyGram; | Supply Ability: | 50000 Piece/Pieces per Month; |
Pole: | 3P; | Place of Origin: | Zhejiang China; |
IMAX: | 40KA; | Product name: | Surge Protective Device; |
Certificate: | CE TUV IOS9001; | Warranty: | 2 Years; |
Standard: | IEC/EN 61643-11; | Model Number: | TRS3-C40/3P/1200V; |
IN: | 20KA; | Brand Name: | THOR; |
Port: | Shanghai; | OEM/ODM: | YES; |
UC: | 1200V DC; | Packaging Detail: | Carton packaging; |

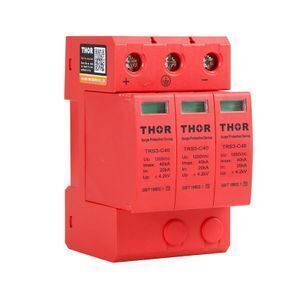

TRS3 surge protector series is suitable for the new energy solar photovoltaic power generation systems or other dc power supply system of lightning protection, the maximum continuous operating voltage DC500V, 800 v, 1000 v. Installation position in the dc power supply system, always of lightning current and lightning current directly or indirectly other instantaneous overvoltage protection.
Model and specificatioon | TRS3-C40 | ||||
Max continuous operating voltage Uc(VAC) | 500V | 600V | 800V | 1000V | 1200V |
Voltage protection level Up(kV)≤ | 1.8 | 2.0 | 3.0 | 3.6 | 4.2 |
Max discharge current (8/20μS) lmax(kA) | 40 | ||||
Nominal discharge current (8/20μS) | 20 | ||||
Response time ns | <25 | ||||
Indication of invalidation | Aging invalidation:green Nomal red lnvladtion | ||||
Degree of protection | IP20 | ||||
Remote signal function | Can also picking | ||||
Remarks | Other max continuous operating voltage can be customized |
