Plate Type: | Gravure; | Warranty of core components: | 1 Year; |
Weight: | 10000; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Restaurant,Construction works ,Energy & Mining,Advertising Company; |
Place of Origin: | Anhui China; | Port: | Ningbo or Shanghai; |
Package Preview: | ; | Machinery Test Report: | Provided; |
Certification: | ce; | Automatic Grade: | Semi-automatic; |
Traction motor: | 2.2kw; | Warranty: | 1 Year; |
Supply Ability: | 300 Set/Sets per Year; | Print length(mm): | 200-1250; |
Max reel diameter: | 600mm; | Condition: | New; |
Video outgoing-inspection: | Provided; | After-sales Service Provided: | No after-sales service,Online support; |
Usage: | Paper Printer,Label Printer,Card Printer,Bill Printer,Cloths Printer; | Showroom Location: | none; |
Brand Name: | HuaRui; | Payment Terms: | L/C,T/T,Western Union; |
Dimensions(L*W*H): | 8000*2000*1500; | ension range: | 2-30kg; |
Type: | Rotogravure Printing Machine,Rotogravure Printing Machine; | Air source: | 0.8Mpa; |
Packaging Detail: | Standard Export Wooden case; | Main motor: | 11kw; |
Core Components: | PLC; | Voltage: | 220; |
After Warranty Service: | Video technical support; | Key Selling Points: | Automatic; |
Color & Page: | Multicolor; | color: | blue; |
Local Service Location: | none; | Marketing Type: | Ordinary Product; |
H.S. No. 8443170090

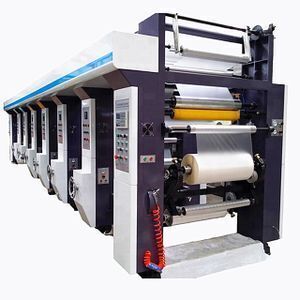

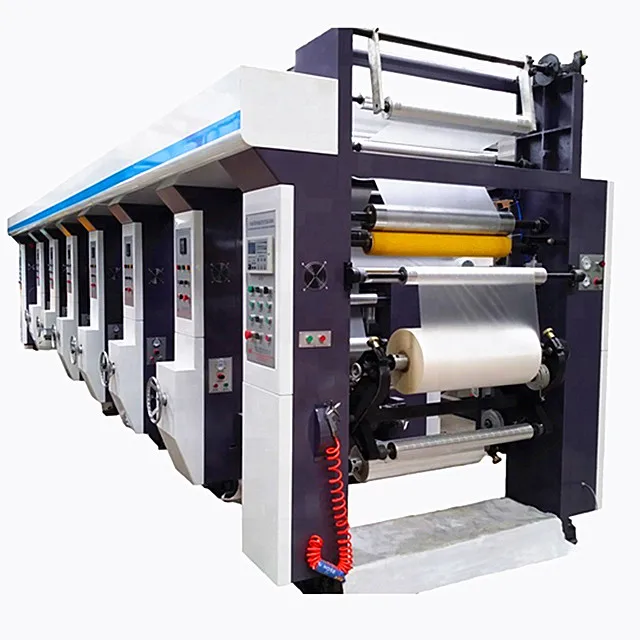

Eight colors Rotogravure printing machine
USE:

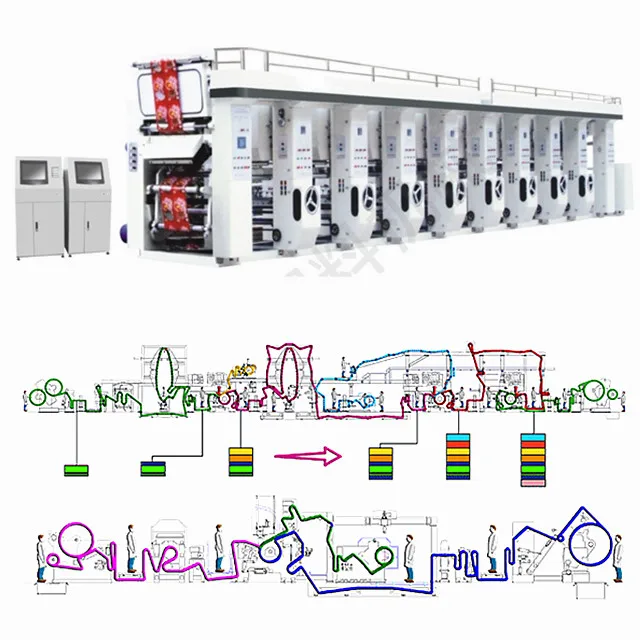

The machine is used for BOPP,PET,PVC,PE Rolling Paper etc with good printing performance of rolling material got multi-color continuous printing.Printing color unit can be increased or decreased according to the customers ,requirement with composite style,the printing can be finished one time continuously with both sides,with 360 degree of installment equip.ease of operation and stability ,the parts of transmission is adopted with gear structure with full sealing lubrication,the tension system is adopted with magnetic powder clutch controller, the parts of rewinding is adopted with torque motor ,with double oven passage design ,fast drying ,fast printing ,winding and rewiding are both double working mechanisms to make the material complete with non-stop.
Feature:
1. Independent tower type double arm duplex position slewing and wall rack combination
2. Independent driving control system: Digital AC frequency control system
3. High speed non-stop change material, save time
4. High-sensitivity tension closed loop control system
5. Install printing cylinder without shaft
6. Independent heating system in every color unit
7. Intelligent continuous constant temperature control

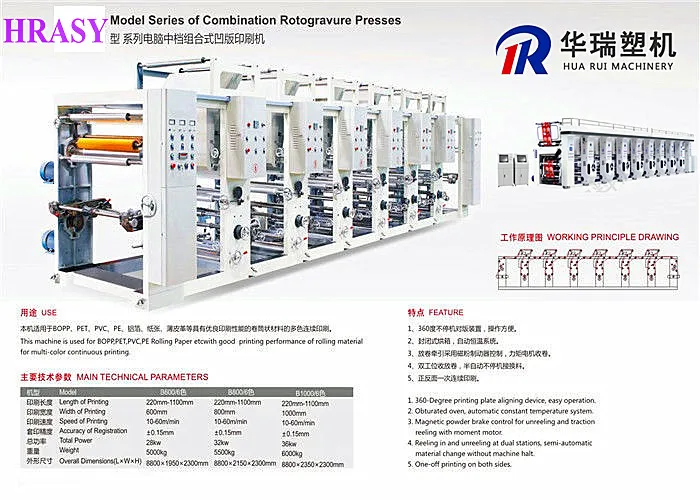

Model | HRASY-600A | HRASY-800A | HRASY-1000A |
Unwind width | 620mm | 820mm | 1020mm |
Print speed | 50m/min | 50m/min | 50m/min |
Max reel diameter | 600mm | 600mm | 600mm |
Print cylinder diameter | 70-390mm | 70-390mm | 70-390mm |
Registered precision | ±0.25mm | ±0.25mm | ±0.25mm |
Heating power | 3.5kw | 4.5kw | 5.5kw |
Weight | 1.5T | 1.8T | 2.0T |
Overall size(m) | 2.8*1.2*1.7 | 2.8*1.4*1.7 | 2.8*1.6*1.7 |
Computerized gravure press parameter
Model | HRASY-600M | HRASY-800M | HRASY-1000M |
Print width | 600mm | 800mm | 1000mm |
Print speed | 60-100m/min | 60-100m/min | 60-100m/min |
Max reel diameter | 600mm | 600mm | 600mm |
Print length(mm) | 200-1250 | 200-1250 | 200-1250 |
Registered precision | <0.15mm | <0.15mm | <0.15mm |
Tension range | 2-30kg | 2-30kg | 2-30kg |
Main motor | 11kw | 15kw | 18.5kw |
Traction motor | 2.2kw | 2.2kw | 2.2kw |
Air source | 0.8Mpa | 0.8Mpa | 0.8Mpa |
Fan power | 1.2kw | 1.2kw | 1.2kw |
Cylinder diameter | 120-350mm | 120-350mm | 120-350mm |
Overall size(m) | 2.8*2.0*2.5 | 2.8*2.2*2.5 | 2.8*2.4*2.5 |
Main technical parameter
Width of printing |
1000mm |
Length of printing |
220-1100mm |
Speed of printing |
10-60m/min |
Precision of overprint |
0.15mm |
Main motor |
13kw |
Printing color |
4(if more could add) |
