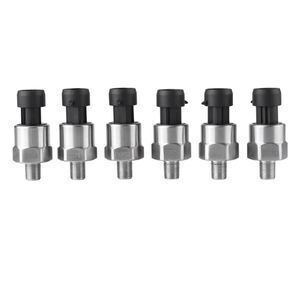

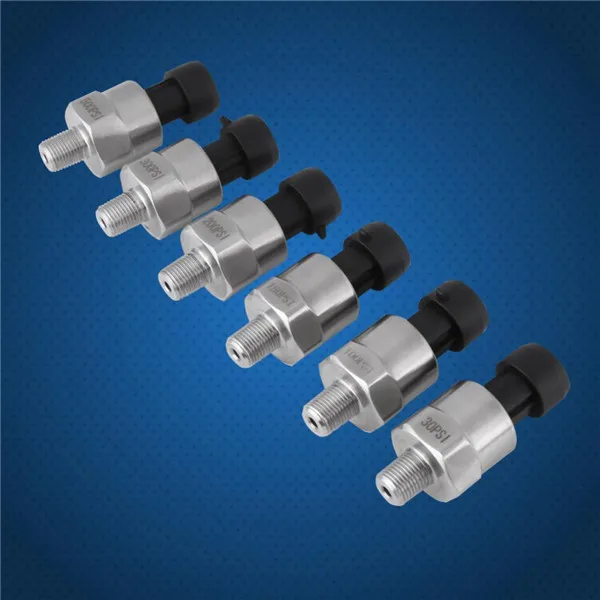

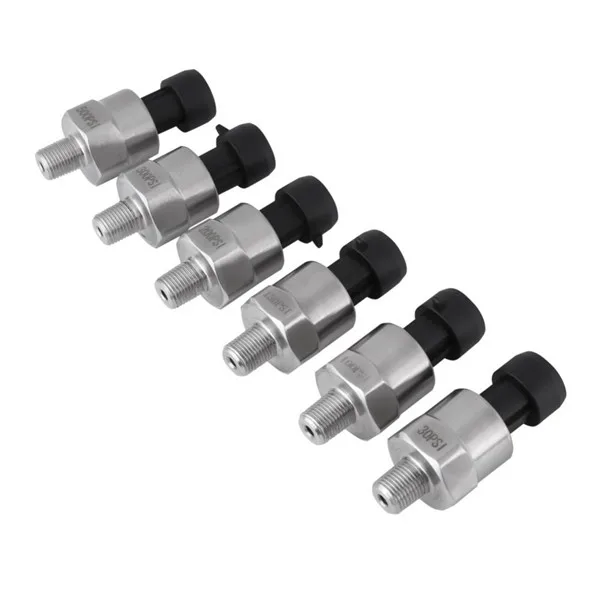

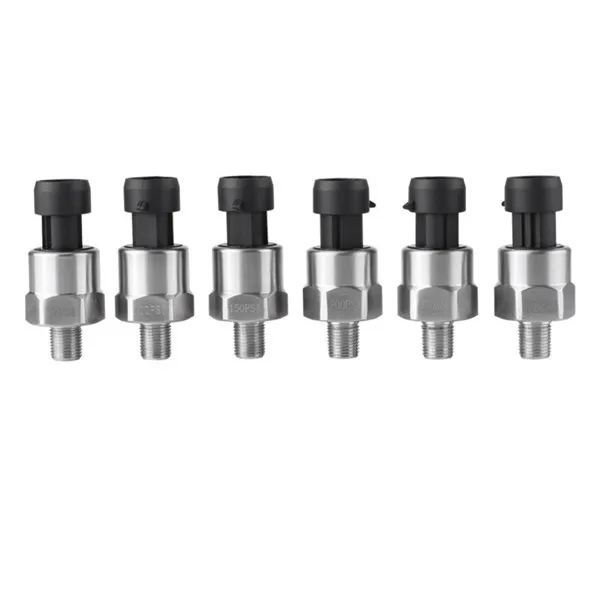

1pc 1/8NPT Thread Stainless Steel Pressure Transducer Sender Sensor for Oil Fuel Air Water

Product details
Payment Terms:T/T,Western Union,MoneyGram,paypal;Delivery Detail:2-5 days;
Port:dongguan,china;Brand Name:YiBai;
Place of Origin:Guangdong China;Supply Ability:50000 Piece/Pieces per Week;
Material:Stainless steel;Product name:pressure sensors for Oil Fuel Air Water;
Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi;Voltage: DC 5V;
Thread Type:1/8" NPT;Model Number:GS01525;

1pc 1/8NPT Thread Stainless Steel Pressure Transducer Sender Sensor for Oil Fuel Air Water



Features:

  • It's an advance pressure transducer than traditional mechanical pressure transducer.
  • ±2%FS small output error, including nonlinear, hysteresis error and repeatability, full temperature range.

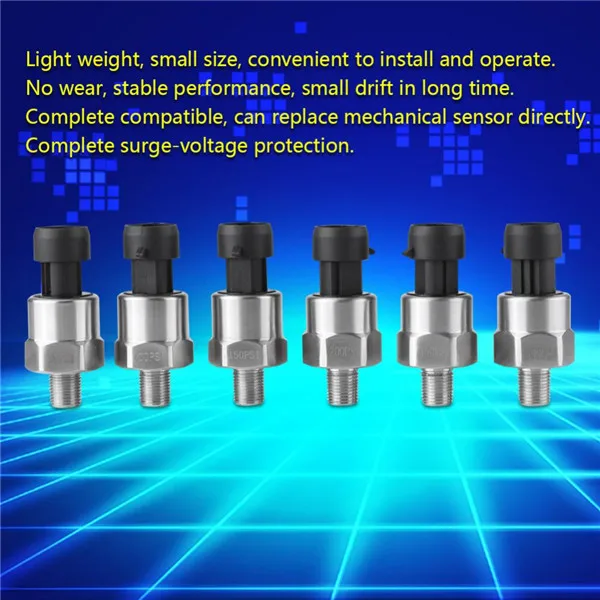

  • Light weight and small size, convenient to install and operate.
  • It has complete surge voltage protection function.

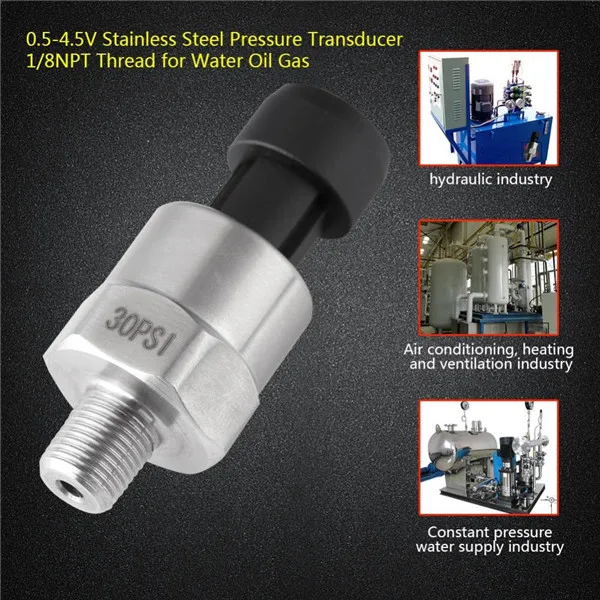

  • Works for oil, fuel, diesel, gas, water, air pressure, can be used in oil tank, gas tank, diesel tank etc.



Specifications:

Material: Stainless steel

Voltage: DC 5V

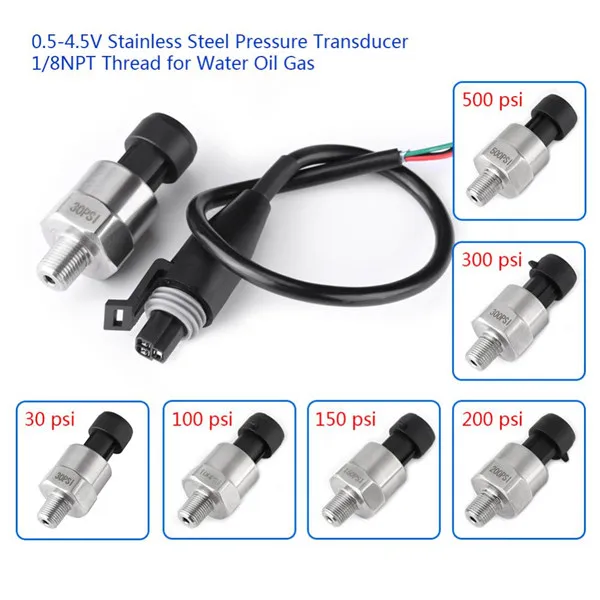

Pressure: 30 psi, 100 psi, 150 psi, 200 psi, 300 psi, 500 psi (Optional)

Thread Type: 1/8" NPT



30 psi

Input: 0-30 psi

Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 15psi outputs 2.5V, 30 psi outputs 4.5V.

Accuracy: within 2% of reading (full scale).

Thread: 1/8"-27 NPT.

Wiring Connector: Water sealed quick disconnect. Mating connector is included.

Wiring: Red for +5V; Black for ground; Blue for signal output.



100 psi

Input: 0-100 psi

Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 50 psi outputs 2.5V, 100 psi outputs 4.5V.

Accuracy: within 2% of reading (full scale).

Thread: 1/8"-27 NPT

Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.

Wiring: Red for +5V; Black for ground; Blue for signal output.



150 psi

Input: 0-150 psi

Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 75 psi outputs 2.5V, 150 psi outputs 4.5V

Accuracy: +/-0.5%FS

Thread: 1/8" NPT

Wiring: Red for +5V; Black for ground; Green for signal output

Overload Capacity: 2-4 times of rated pressure

Working Temperature: -40℃~+120℃

Compensation Temperature: 0℃~+80℃

Protection Class: IP67

Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel

Load Resistance: ≤(supply power-6.5V/0.02A)Ω

Long-term Stability: Less than 0.1%FS/year

Temperature Effect on Zero: Typical:0.02%FS/℃; Maximum:0.05%FS/℃

Temperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃

Shock Resistance: 1000g

Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)

Response Time: ≤1ms

Insulation Resistance: >100mΩ 500VDC

Explosion-proof Class: ExiaTTCT6

Electromagnetism Compatibility: EN50051-1



200 psi

Input: 0-200 psi

Output: 0.5V~4.5V linear voltage output. 0 psi outputs 0.5V, 100 psi outputs 2.5V, and 200 psi outputs 4.5V

Working Temperature: -40~+125℃

Accuracy: ±1%FS

Thread: 1/8"-27 NPT

Overload Capacity: 2 times of rated pressure

Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel

Load Resistance: ≤(supply power-6.5V/0.02A)Ω

Long-term Stability: ± 0.2%FS/year

Temperature Effect on Zero: Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃

Temperature Effect on Sensitivity: Typical: ±0.02%FS/℃; Maximum: ±0.05%FS/℃

Shock Resistance: 100g

Anti-Shock: ≤±0.01%FS(X,Y,Z axes, 200Hz/g)

Response Time: ≤1ms

Insulation Resistance: >100mΩ 500VDC

Explosion-proof Class: ExiaTTCT6

Electromagnetism Compatibility: EN50081-1; EN50082-2; IEC6 1000-4-3

Wiring Connector: Water sealed quick disconnect. Mating connector and wire harness (pigtail) is included.

Wiring: Red for IN+; Black for GND; Green for OUT.



300 psi

Input: 0-300 psi

Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 150 psi outputs 2.5V, 300 psi outputs 4.5V

Accuracy: +/-0.5%FS

Thread: 1/8" NPT

Wiring: Red: +5V; Black: ground; Green: signal output

Overload Capacity: 2-4 times of rated pressure

Working Temperature: -40~+120℃

Compensation Temperature: 0℃~+80℃

Protection Class: IP67

Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel

Load Resistance: ≤ (supply power-6.5V/0.02A)Ω

Long-term stability: Less than 0.1%FS/year

Temperature Effect on Zero: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃

Temperature Effect on Sensitivity: Typical:0.02%FS/℃; Maximum:0.05%FS/℃

Shock Resistance: 1000g

Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)

Response Time: ≤1ms

Insulation Resistance: >100mΩ 500VDC

Explosion-proof Class: ExiaTTCT6

Electromagnetism Compatibility: EN50051-1.



500 psi

Input: 0-500 psi (Gauge Pressure)

Output: 0.5-4.5V linear voltage output. 0 psi outputs 0.5V, 250 psi outputs 2.5V, and 500 psi outputs 4.5V.

Accuracy: +/-1%FS

Thread: 1/8" NPT

Wiring: Red for +5V; Black for ground; Yellow (Green) for signal output

Overload Capacity: 2-4 times of rated pressure

Working Temperature: -40℃~+120℃

Compensation Temperature: 0℃~+80℃

Protection Class: IP67

Pressure Medium: Oil, gas and water which is compatible with 316L stainless steel

Load Resistance: ≤ (supply power-6.5V/0.02A)Ω

Long-term stability: Less than 0.1%FS/year

Temperature Effect on Zero: Typical: 0.02%FS/℃; Maximum: 0.05%FS/℃

Temperature Effect on Sensitivity: Typical: 0.02%FS/℃; Maximum:0.05%FS/℃

Shock Resistance: 1000g

Anti-Shock: ≤+/-0.01%FS(X,Y,Z axes, 200Hz/g)

Response Time: ≤1ms

Insulation Resistance: >100mΩ 500VDC

Explosion-proof Class: ExiaTTCT6

Electromagnetism Compatibility: EN50051-1.



Package Includes:

1 x Pressure Transducer (With cable)
