Weight: | 4.8kgs; | Place of Origin: | Jiangxi China; |
Display: | Double LCD Display; | Model Number: | TD3; |
Packaging Detail: | Less than Container Load ( LCL) Service to US ,Get shipping quote. High Quality TD3-2 Electronic Theodolite Surveying Instruments packing in one carton; | Accuracy: | 2"/5"; |
Magnification: | 30X; | Warranty: | 1 years; |
Package Preview: | ; | Carton Size: | 0.48*0.28*0.36cm; |
Single gross weight: | 17.0 KG; | Model: | TD3-2; |
Brand Name: | OEM; | Size: | 200*160*345mm; |
Selling Units: | Single item; | Customized support: | OEM,ODM,OBM; |
Single package size: | 50X35X30 cm; | Image: | Erect; |
Battery: | Lithium Battery; | Product name: | Electronic Thedolite; |

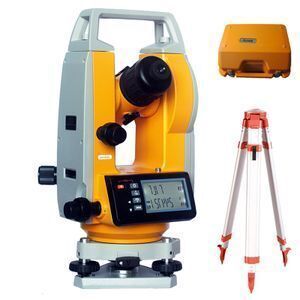

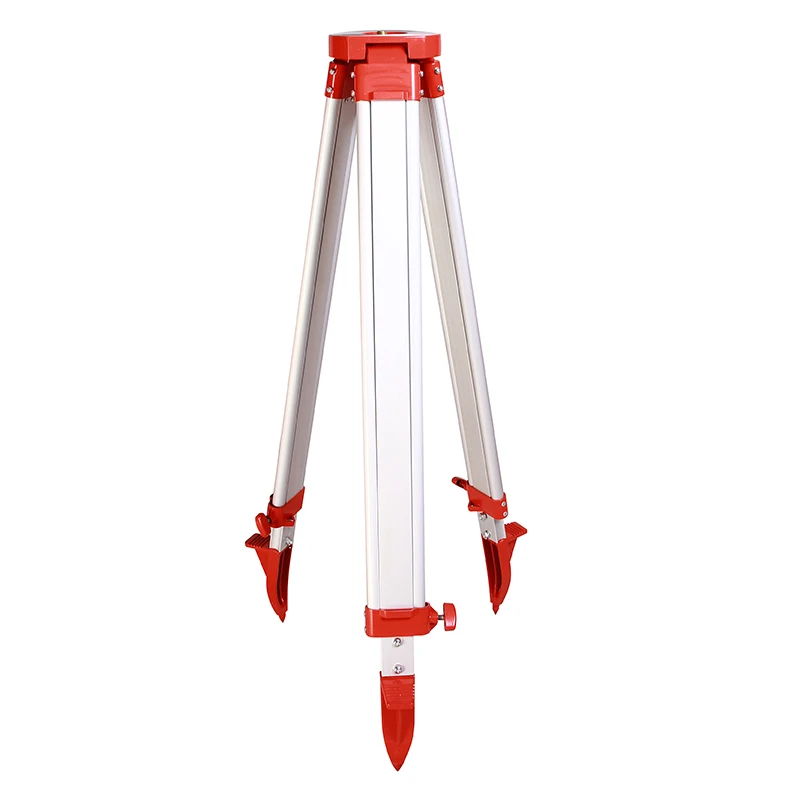

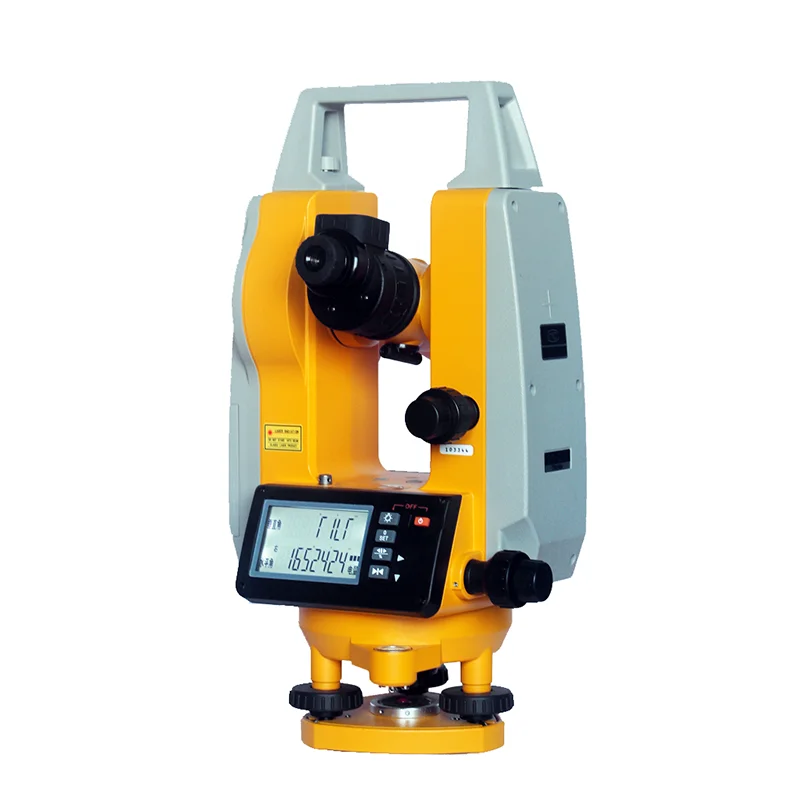

This item is High Quality TD3-2 Electronic Theodolite Surveying Instruments come with one aluminum theodolite tripod
Models and technical parameters | TD3-1 | TD3-2 | TD3-3 | TD3-53 | TD3-22L | |
Telescope | Imaging |
Erect |
||||
Magnification | 30X | |||||
Objective aperture | 45mm | |||||
Field of view | 1 30” | |||||
Shortest viewing distance | 1.4m | |||||
Stadia ratio | 100 | |||||
Resolution | 3” | |||||
Angle mensurement | Minimum count | 1”5” | ||||
Mode of detection | H:double side v:double side | |||||
Accuracy | 2” | 5” | 2” | |||
Angular unit | DEG/MIL/GON | |||||
Display | LCD double side | |||||
Compensation | Compensation range | ±3' | ||||
Precision of plate vial | 30”/2mm | |||||
Precision of circular vial | 8'/2mm | |||||
Power | Battery | lithium battery | ||||
Voltage | 3.7v | |||||
Weight | 4.8kg | 4.6kg | 4.8kg | 4.6kg | 4.8kg | |
Size | 200*160*345mm |
