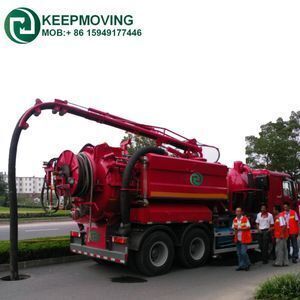

6x4 8CBM HOWO Combined Vacuum Truck With Suction Beam

Supplier: Jiangsu Keepmoving Vehicle Co., Ltd.
Region: Jiangsu, China
Contact: Ms Iris Huang
Price: $150000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Steering:	Left Hand;	Gross Vehicle Weight:	25000;
Wheelbase:	4650+1300;	Vacuum Pump:	Liquid Ring Pump;
Port:	Shanghai;	Brand Name:	SINOTRUK HOWO;
Color:	As Per Customer's Request;	High Pressure Pump:	200Bar at 215L per Min;
Dimension (L x W x H):	1080025003800;	Tank capacity:	6CBM 7CBM 8CBM 9CBM 10CBM;
Supply Ability:	30 Unit/Units per Month vacuum truck;	Emission Standard:	Euro 4;
Fuel Type:	Diesel;	Certificate:	ISO9001 CCC;
Condition:	New;	Payment Terms:	L/C,T/T;
Horsepower:	380HP;	Packaging Detail:	This Vacuum truck in Nude packing,delivery by RORO ship or bulk vessle or as per customer's requirement.;
Transmission Type:	Manual;	Tank Volume:	8000L;
Product name:	Vacuum Truck;	Drive type:	6x4;
Chassis brand:	Howo Shacman;	Place of Origin:	Jiangsu China (Mainland);

Name Card

Iris brief introduction

-Experienced: 12 years in export trade and 8 years in Truck trailer field,which will offer better service to you.
-Profession:Rich knowledge at truck and trailers,which will better understand your demand,and will offer better solution to support your purchase job.

-Customer Cared: I not only work for my company,but also work for you,I will assist you to control products quality,delivery dates......

Warm welcome all friends to visit our website!!!

Product Description

This COMBINED VACUUM TRUCK Suitable for suction,transportation and dumping soil and mud from various sewer man-hole,water wells and sediment.It is necessary tool for city sanitation department,waste processing company,big factory......,it can help to clean the sewer pipe undergroud,clean the sludge in the river around city, it also can help big factory to clean the greasy dirt and waste water.More specification about the vacuum tank please kindly refer to following information .

No.	Main components	Detail Description
1	Chassis	Dongfeng brand 6x4,Engine is Euro 3 or 4 emission standard, There four pcs PTO to drive vacuum pump,high pressure pump and all kinds of hydraulic equipment. Chassis Model will as per cusotmer's final confirm.
2	Vacuum tank	Tank Shape:Cylinder type ,Vacuum tank volume is 8000 liters,made by SS304L,6mm thickness shell. Design Pressure:-0.9 Bar.There some U shape strengthen rims outside the sludge tank body to offer stonger support to the tanker body. Hydraulic lift sylinder to lift up the tank body to outlet the sludge in 45 degree with safety support. Water level instrument locate in the rear of the tanker body.6 or 4 outlet valve in the rear to release the sludge.
3	Clean Water tank	Tank volume 3CBM,made by SS304 steel,4mm thick,located on both side of the vacuum tank,with lower lever alarm.
4	Rear Door	Controlled by Hydraulic,2 cylinders open the door,and 4 cylinders closed the door,6 suction pipe and 6 discharge valves.
5	Cooling water tank	1500L,located behind the Cab of the truck,use for cooling the vacuum pump.
6	Vacuum pump	Liquid ring Chinese Kenflo brand,3000H/M air flow rate,vacuum rate 90%,vacuum pump can be choose according to customer's requirement.
7	High Pressure pump	Piston pump imported from Germany,Water flow 212L/m at 200 bar,Brand can be specify by customer.
8	Others	Telescopic suction boom: Swivel in both the vertical and horizontal plane.300°horizontal rotation, 6m working radius and vertical lift up to 3m above ground.Dia 6 stailess and rubber suction hose. High press hose reel 1.120 M HP hose ID25MM,Control by hydralic 100°horizontal rotation. Painting All stainless steel parts will painted by primer and finish paint,sand blasting before painting,coloer as per customer's choose. Operation instructions This instruction will guide customer how to operation this truck. Training Before delivery:we can offer one or two days operation of the truck training in our factory.
9	Remarks	Above information just for reference,we can adjust the specification according to customer's requirement,for further information,please feel free to contact Iris huang.

Certifications

We have Obtained CCC,ISO9000,BV certificates,we also obtained many other Honorary certificate issued by loccal Government.

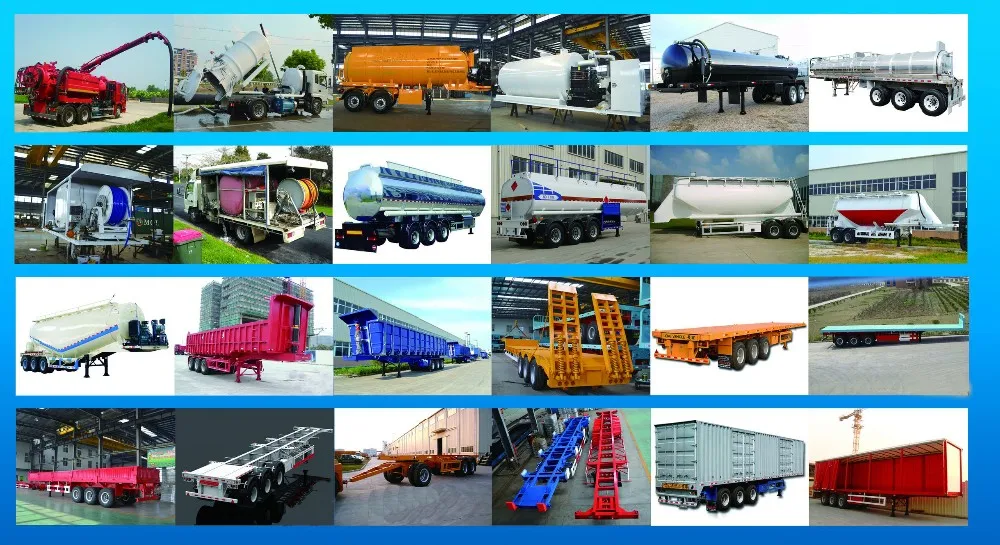

Products Overview

Our main products including Vacuum jetting truck,sewer jetting truck,Mub grab truck,Biogas liquid vacuum truck,oil tanker trailer,vacuum tank trailer,rear dumper trailer,lowbed trailer, container trailer,side wall cago trailer, chemical liquid tanker truck, bulk power goods tanker trailer,cement tanker trailer, water tanker semi trailer,full semi trailer,and so on. Total 100 style available for sales.

Vacuum Truck Manufacturing Process----Rear door and tank assembly.

Detailed Images

Control Panel

The control panel mainly control vacuum pump and high pressure pump working,it also control the electrical system working,including working lights,alarm,emergency button and so on.

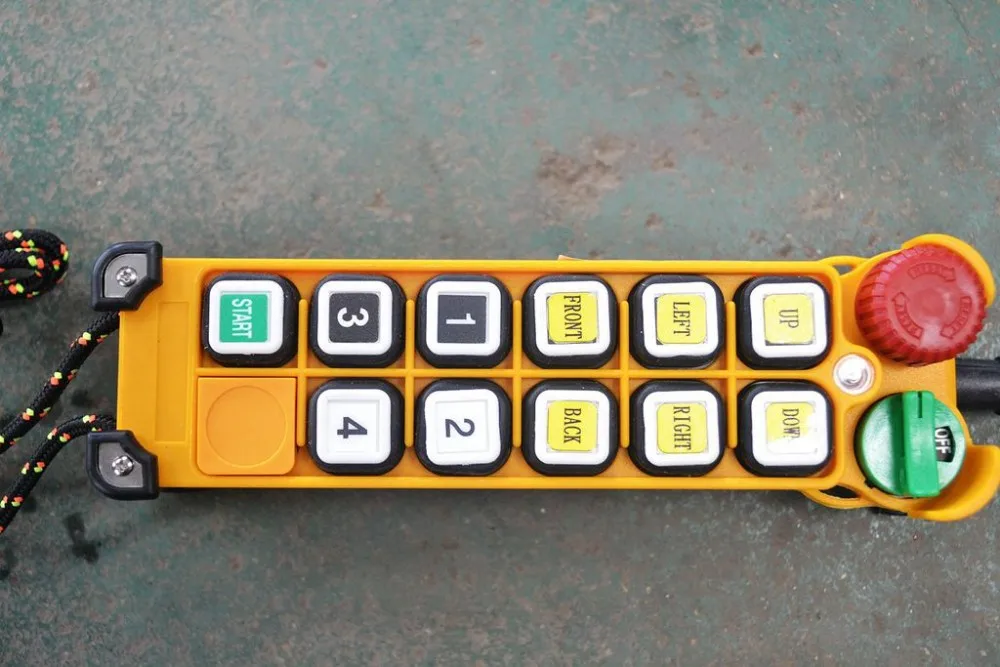

Remote Control

This remote control used to control the Suction boom to go in different direction.

Packing & Delivery

Ready For Delivery:

Vacuum truck will in nude packing,delivery by Roro ship or by bulk vessel,or according to customer's requirement.

Service to Customers

We went to our customer's work site to offer after-sale service to our customer,our truck very famous in local market,many local TV Media come to make reports on local TV channel.

Customer Visit

Following are some of our customers came to visit us from different countries, we warm welcome more friends from all over the world come to visit us in the near future!!!
