Used HOWO Type 20000 L sewage suction truck for sale

Supplier: Shandong Chengda Auto Sales Co., Ltd.
Region: Shandong, China
Contact: Mr Alan Lee
Price: $4500.00 / 1 - 4 units
$4300.00 / 5 - 9 units
$4000.00 / >=10 units
Min. Order: 1 unit

Click here to contact

Product details

Packaging Details:	Packaged bare in wax before shipping	State of health:	used
payment terms:	wire transfer	brand:	HOWO
Body size:	820024803200	Driver type:	6x4
engine:	WD615.87	Certificate:	ISO9001 CCC
Fuel tank capacity:	10000L	Emission Standards:	euro 3
Gross Vehicle Weight:	5-10 tons	fetal:	12.00R20
Fuel type:	diesel engine	Wheelbase (mm):	3800mm
After-sales service provided:	Online support, video technical support, free spare parts	Chassis brand:	HOWO
horsepower:	351 - 450 hp	place of origin; place of origin:	Shandong
product name:	Vacuum suction truck	Pump:	Special vacuum pump
Supply capacity:	100 units per month	port:	Tianjin/Qingdao
Capacity (load):	21 - 30 tons	Fuel tank capacity:	14-16 cubic meters
Transmission type:	automatic	color:	request customization

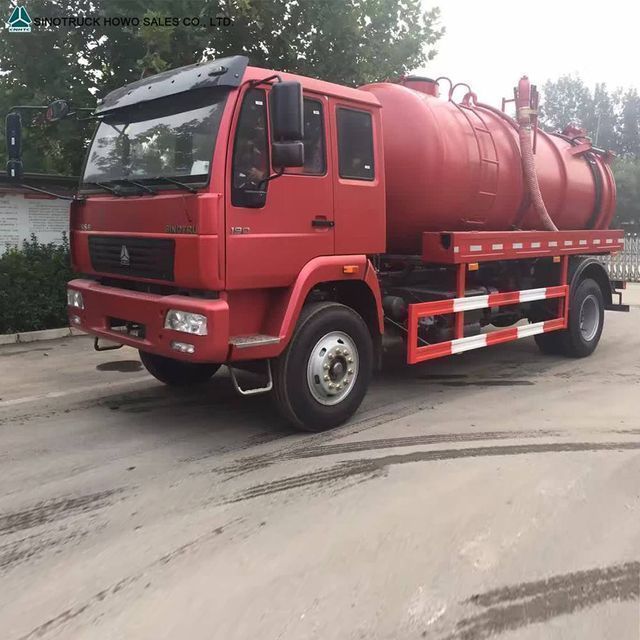

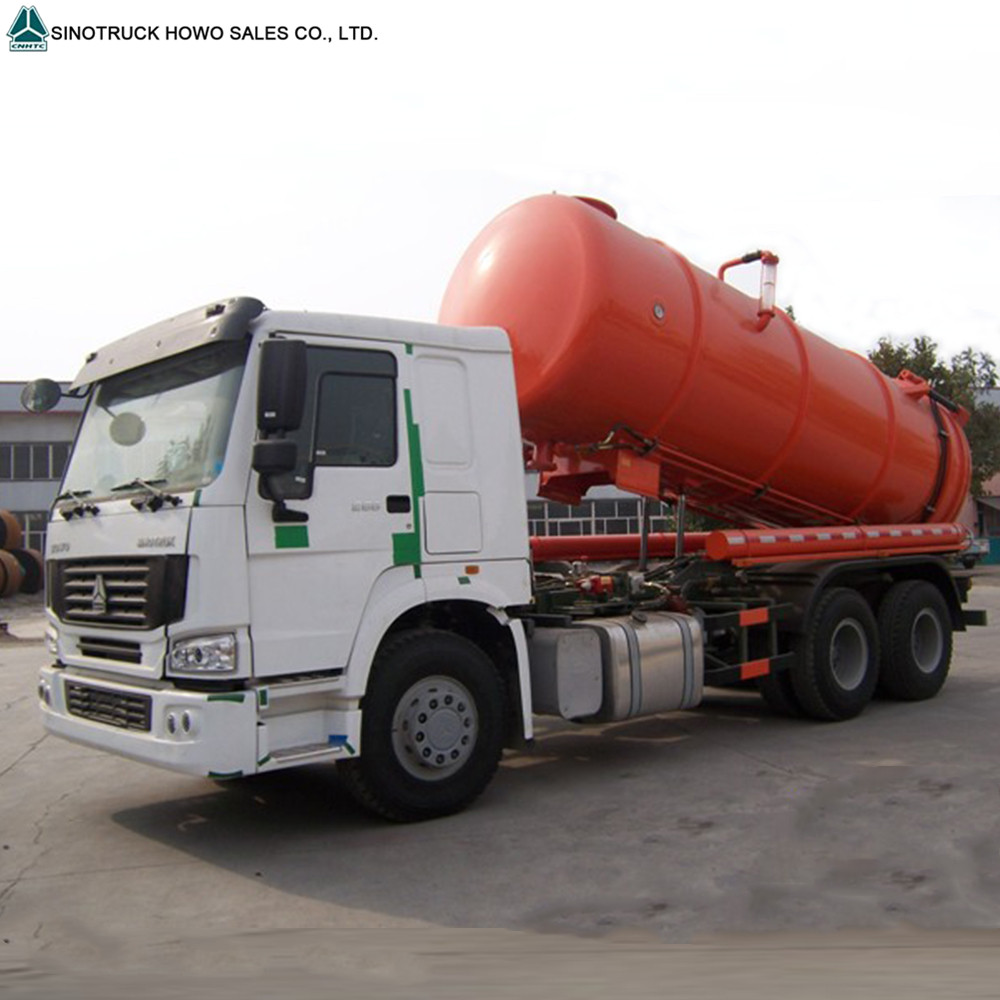

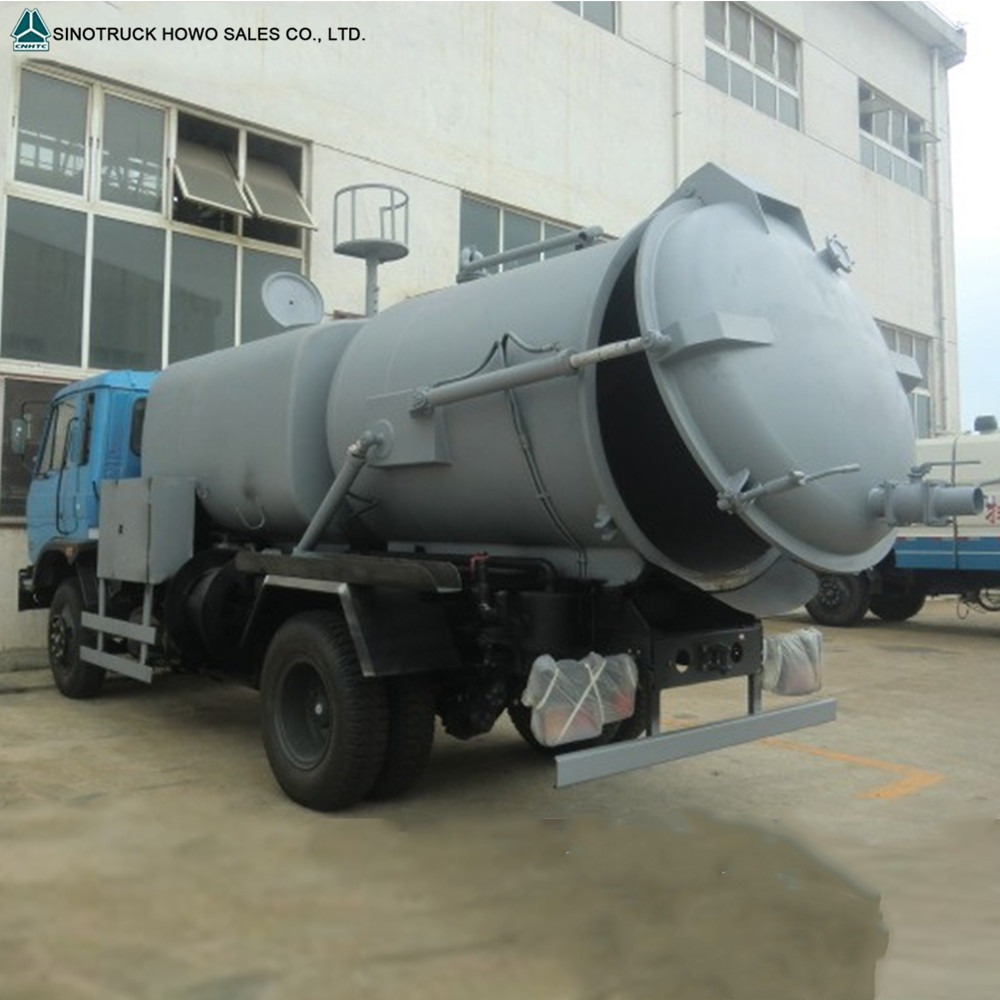

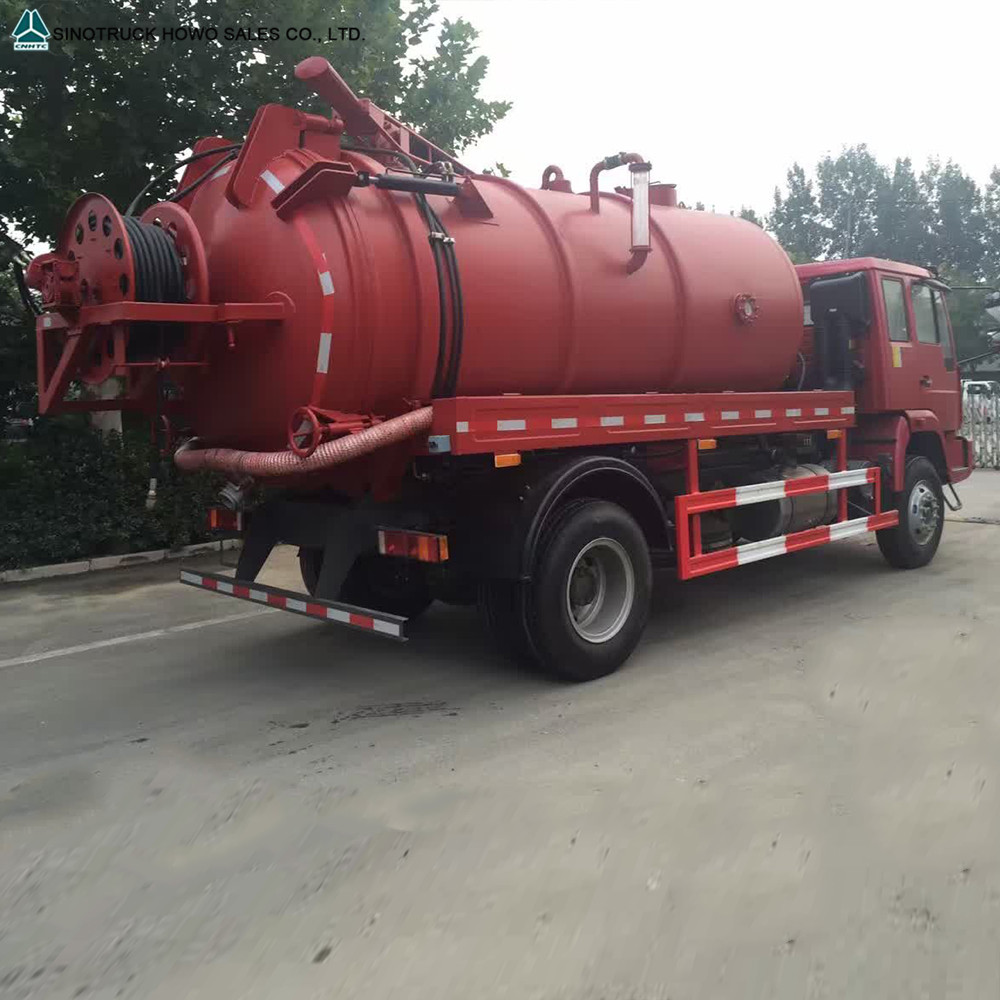

Used HOWO Suction Type 20000 L Sewage Suction Truck for Sale

Product Description

Suction tanker

Vacuum suction truck

vacuum cleaner

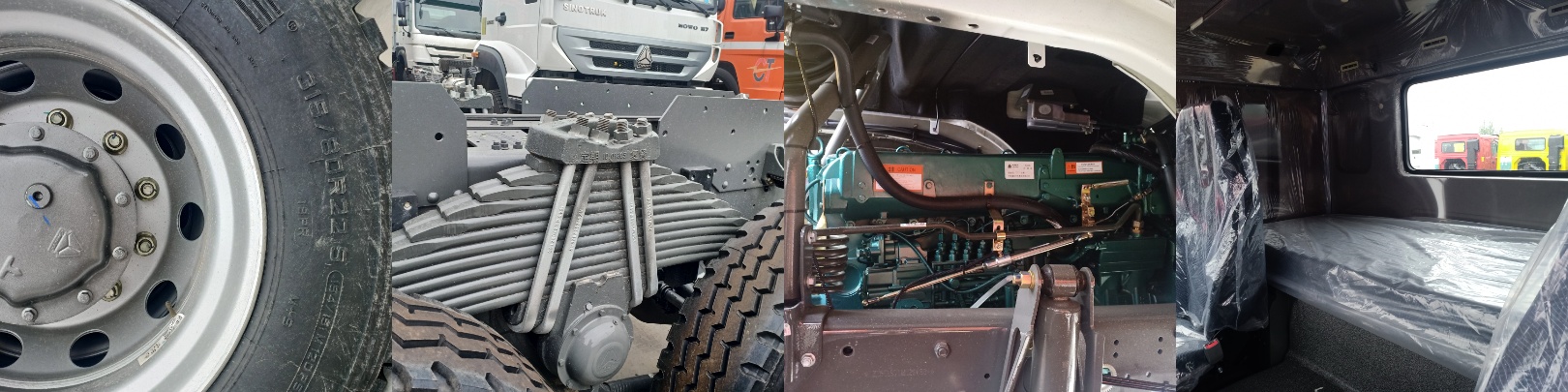

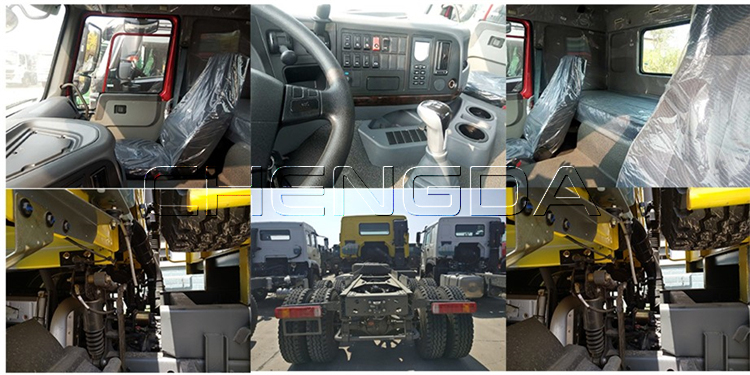

more details

fetal

12.00R20 Radial

10+1

chassis

Front axle: HF9

Real axis: HC16

burden

Model

Horsepower: 371 horsepower

Emissions: Euro 2

Specification

chassis	ZZ1167M4611W
engine	Brand: Sinotruk Diesel engine: four-stroke direct injection diesel engine Engine model: WD615.62, Euro II emission standard 6-cylinder in-line water-cooled, turbocharged, intercooled Maximum output: 266 HP (196KW) at 2600 rpm Maximum torque: 1100 Nm at 1100-1600 rpm Number of cylinders: 6 Displacement: 9.726 liters Aperture: 126mm Stroke: 130mm
drive form	left hand drive
clutch	430C Pull Diaphragm Spring Clutch. Friction disc diameter: 430mm
send	HW13710, 10 forward and 2 reverse.
propeller shaft	Double universal joint drive shaft with gear-shaped connecting flange
front axle	high frequency 7
rear axle	ST13, central single reduction, full floating axle shaft, steel plate press-welded axle housing.
chassis	Frame: U-shaped parallel ladder frame with a section of 300×80×8mm, full cold riveted beam Front Suspension: 9 semi-elliptical leaf springs with hydraulic telescopic double-action shock absorption Absorbents and Stabilizers rear suspension: 15 semi-elliptical leaf springs with hydraulic telescopic double action shock absorber Aluminum fuel tank: 300 liter capacity with locking fuel cap mounted on opposite side of chassis
steering	ZF8098, hydraulic power steering.
brake	Service brake: double circuit compressed air brake Parking brake (emergency braking): Spring energy, compressed air to the rear wheels Auxiliary brake: engine exhaust brake Option: ABS
electrical appliance	Working voltage: 24V, negative ground Starter: 24V, 7.5Kw Alternator: 28 V, 1500 W Batteries: 2×12V, 165Ah Cigarette lighter, horn, headlights, fog lights, indicator lights and backup lights
weight kg	Weight: 8840 Gross vehicle weight: 19000
Body	Body volume (m3): 12 Packing volume (m3): 2.2 One filling cycle time: ≤30 Filling lifting time (s): 8-10 Discharge time (s): ≤55 Fluid system pressure (Mpa): 20 Front and rear sewage capacity (L): 250+150 Maximum compression force (kg): >25000
