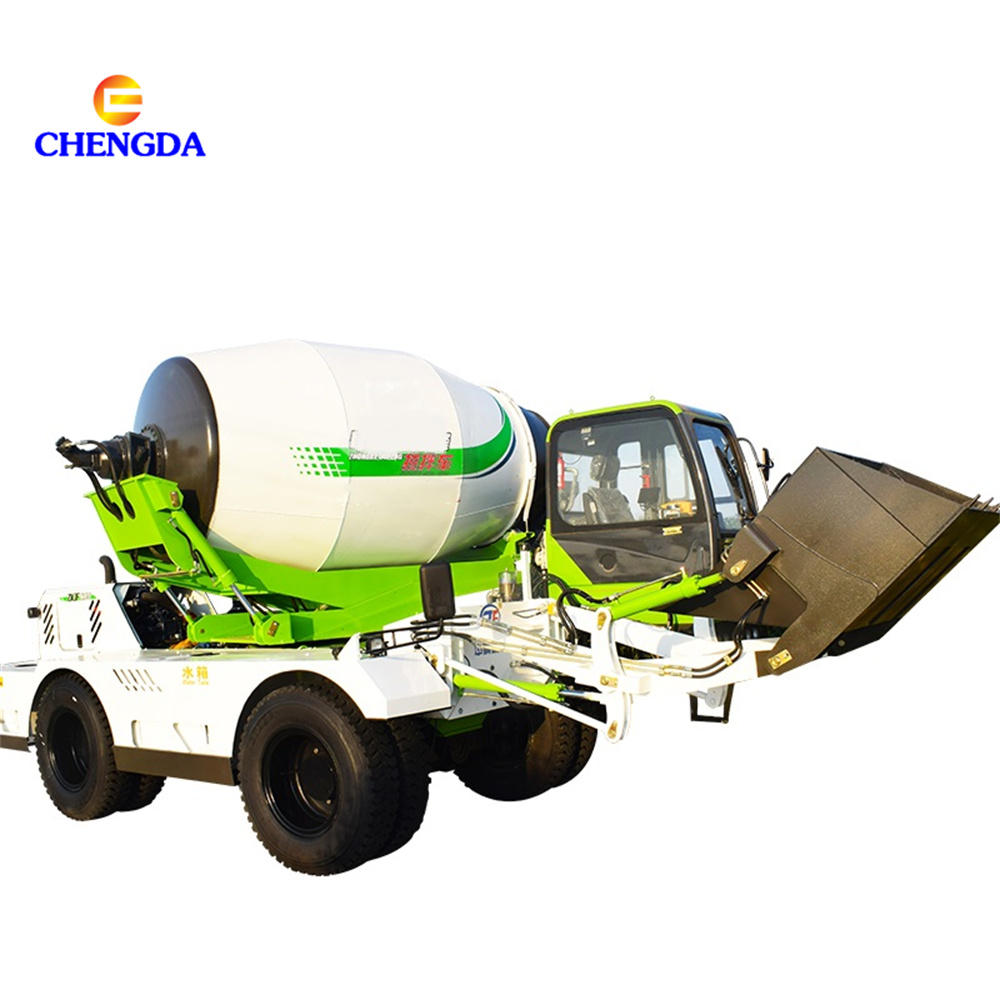

Small Chinese Self Loading Concrete Truck For Sale

  • Supplier: Shandong Chengda Auto Sales Co., Ltd.
  • Region: Shandong, China
  • Contact: Mr Alan Lee
  • Price: $4000.00 / 1 - 4 units
    $3000.00 / 5 - 9 units
    $2000.00 / >=10 units
  • Min. Order: 1 unit
Product details
Diesel engines:YCD4J22G, 116 hptaxi:Human Seat
brand:Sinotruk HowoCarrying capacity:7600 kg
Applicable industries:Hotels, clothing stores, building materials stores, manufacturing plants, food and beverage factories, farms, home furnishing, construction projects, food and beverage stores, othersstrength:116 hp
Supply capacity:100 units per weekweight:16900 kg
Unique selling point:Full hydraulic systemCore component warranty:1 year
Packaging Details:Shipping trailer - naked, waxed, shipped in bulk carrier or container depending on size. Transportation ====100% convenient and efficient! Low price 3.5m3 concrete mixer truckSpecific output:3 cubic meters
fetal:15.5/65-18Health status:new
Dimensions (L*W*H):10155*2496*3950mmWorking weight:8500 kg
Axle:Front axle, steering: Isuzu axleCore components:Engines, gearboxes, motors, pressure vessels, gears, pumps
Marketing Type:2020 New ProductsShowroom location:Italy, Philippines, South Africa
Warranty:over 5 yearsport:China's main ports
Mechanical test report:ifVideo outbound inspection:if
Gear pump:PermkeOrigin:Shandong Province, China
product name:3 cubic meters mobile self loading concrete mixer truckpayment terms:L/C, Western Union, T/T
Maximum gross weight:16900 kg
Factory price 3m3 mobile self-loading concrete mixer truck
Product Description
Specification
Machine name
3 cubic meters mobile self loading concrete mixer truck
Diesel engines
Model: YCD4J22G
Total Displacement: 4330cc Cylinders: Inline 4 cylinders
Spray: online, instrument controlled
Cooling method: water-cooled dry air filter
Maximum power: 85KW (116HP)
Maximum torque: 390Nm @ 2800rpm
axles and tires
Front axle, steering: Isuzu axle
Equipped with planetary reduction gear and flange transmission on the shaft
Rear axle (+-28°)
Tires: 15.5/65-18
Maximum carrying weight: 5150kg
350kPa
electronic system
Generator: 28v-1500Wa (53.5A)
Battery: 2x12V-60AH (272A)
road lighting system
steering
2-wheel steering assisted by dual-displacement load-sensing power steering on 2 steering wheels
4*4 four-wheel drive
Hydraulic pitcher gearbox, open hydraulic gear oil pump, reverse control
2 forward gears 2 reverse gears
First gear: 0-7 km/h; Second gear: 7-20 km/h
water supply system
Self-priming 24V large-capacity water pump with quick-suction function
Flow 90 liters/min
Maximum capacity 2X285 liters
High pressure water pump cleaning car
The screen displays the water intake and drum water intake
Braking System
Internal in-wheel service brakes and 4-wheel emergency brakes
Small servo pump activation on independent dual circuits
negative pressure parking brake
front axle with inner wheel
maintenance filling
Fuel tank: 190 liters
Total hydraulic system capacity: 190 liters
Engine oil: 16 liters
weight
Working weight: 8500 kg
Maximum gross weight: 16900 kg
Load capacity: 7600kg
Mixing and unloading
Drum geometric capacity: 5445 liters
Drum speed: 16 rpm
Concrete output: 3 cubic meters / tank
Hydraulic system
Gear pump: Permke
Maximum flow: 63/50 liters//20.3 liters/minute (triple pump)
Maximum pressure: 42MPa
load
Loading arm with automatic load cell
Capacity: 600 liters
Number of loads required per load: 5
taxi
heating/cooling system
Human Seat
detailed picture
Features of 3.5 cubic meters mobile self-loading two-way driving concrete mixer truck

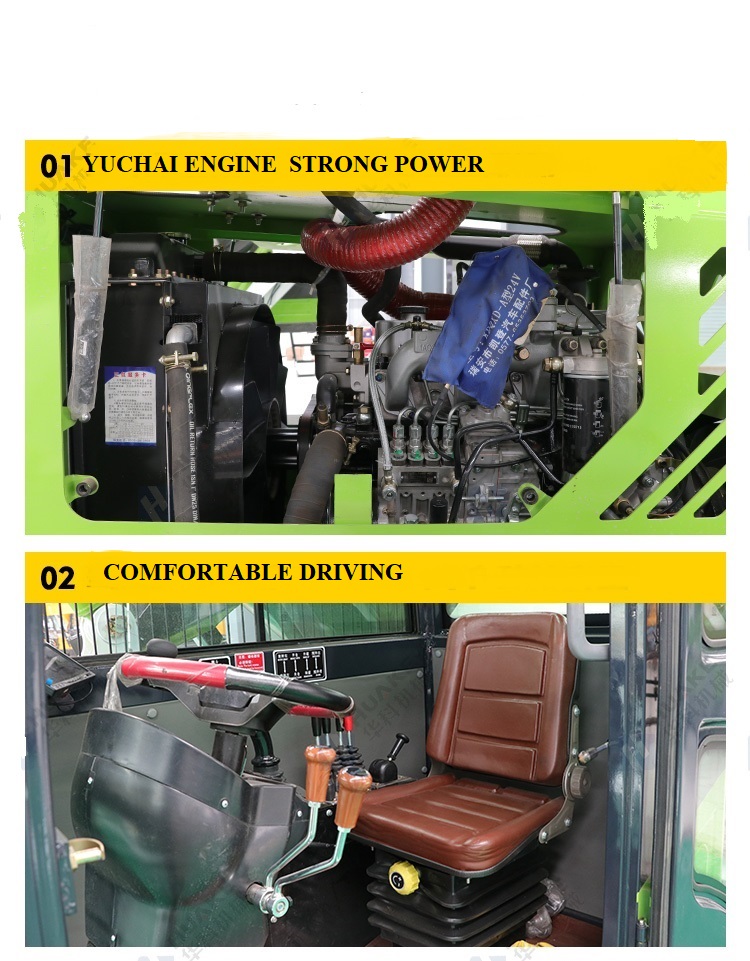

1. Yuchai engine, strong power
2. Cab, one-button start, simple operation and complete functions

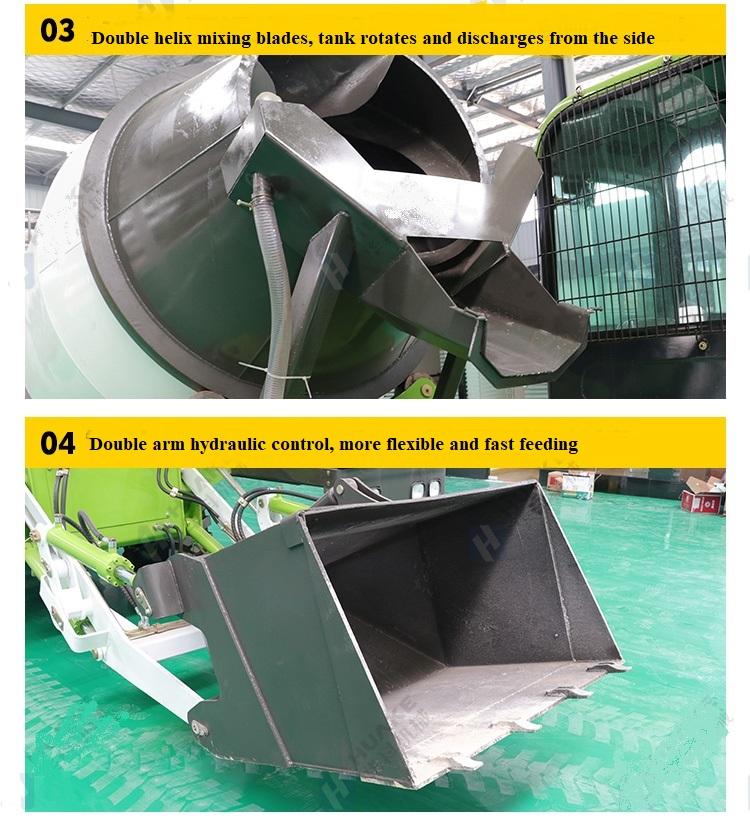

3. Tank body: double helix stirring blades, tank side discharge
4. Bucket: double hydraulic control, more flexible and fast loading

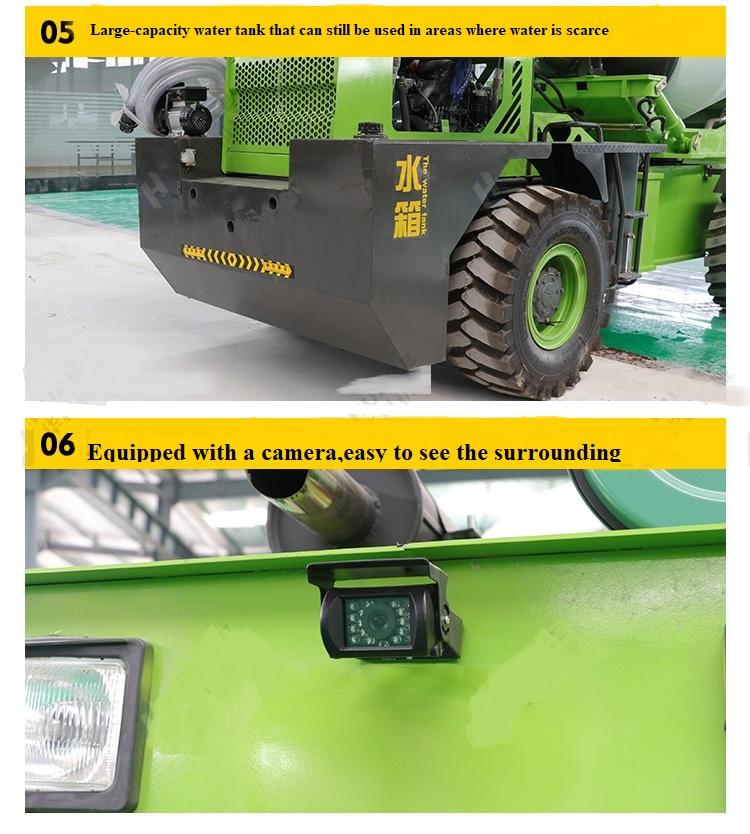

5. Large-capacity water tank, normal use in places where water resources are scarce
6. Equipped with a camera: easily check the surrounding vehicle conditions in the cab
