Warranty: | 12 Months,3years; | Brand Name: | PrimoPal; |
Packaging Detail: | 20~50 pcs stepper motors in one carton; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Frame Size: | NEMA 17, 23, 34; | Custom Design: | Available; |
Certification: | ce,ISO,RoHS,UL,ce; | Speed: | Variable Speed; |
Product name: | mini nema 17 23 34 hybrid stepper motor; | Weight: | 120g~500g; |
Ambient Temperature: | -20 ~ +50°C; | Supply Ability: | 200000 Piece/Pieces per Month stepper motor; |
Phase: | 2; | Typical Applications: | 3D Printers, CCTV Systems, and Other CNC Equipment; |
Number of Lead Wires: | 4, 6; | Current / Phase: | Variable, can be custom; |
Place of Origin: | Shanghai China; | Model Number: | PHB42S/PHB57S/PHB86SSeries; |
Type: | Hybrid; | Port: | Shanghai, Ningbo, Shenzhen; |
Description

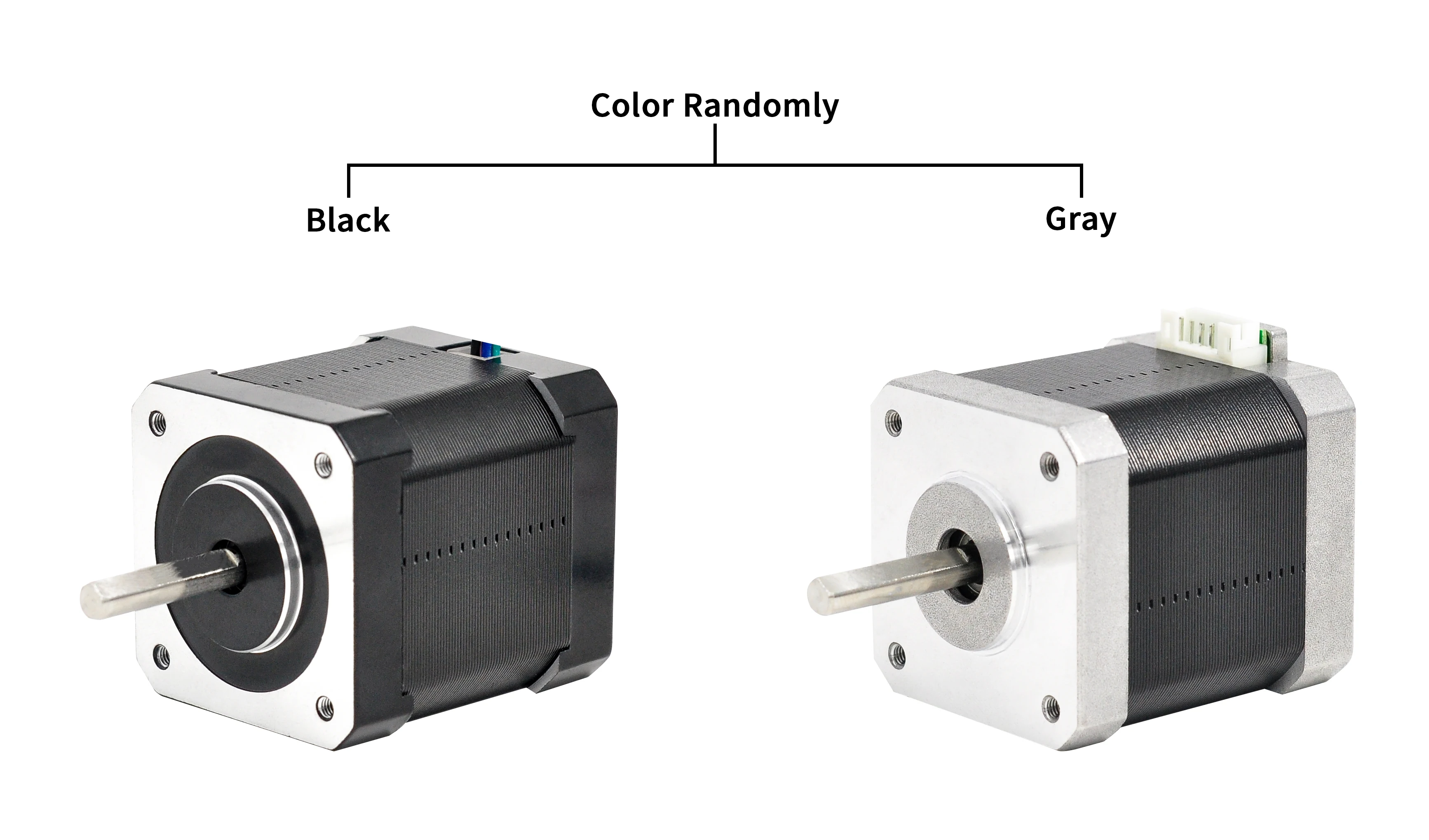

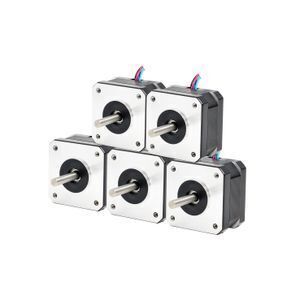

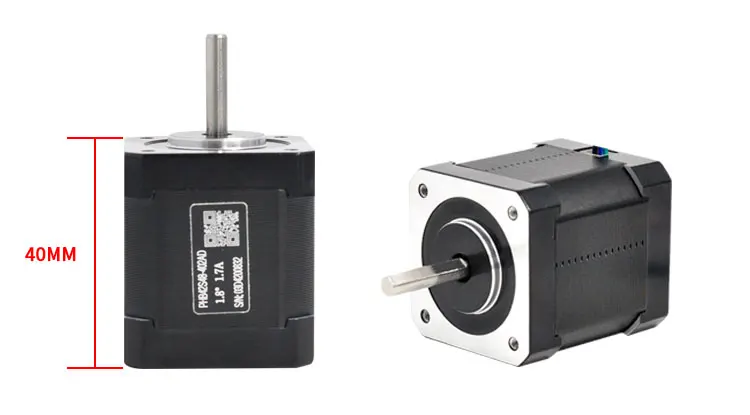

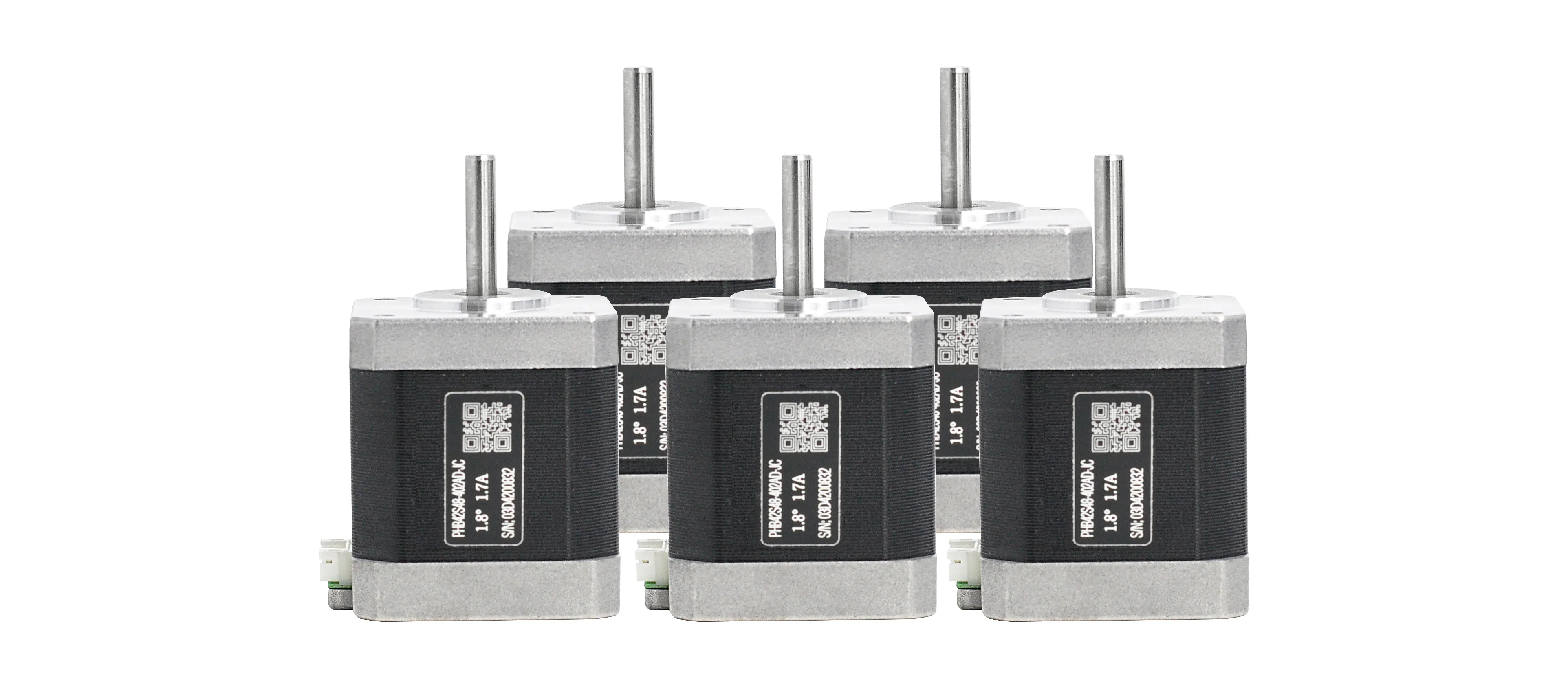

The PHB42S series stepper motors offer high resolution and are employed with economically priced drives for precision applications with the highest possible torque up to 80 N.cm and also compact size (42 x 42 mm).
The PHB42S series stepping motors are terminated with 4 or 6 wire leads, and easily connected in bipolar or unipolar way.
Superiority
High performance accuracy
High precision bearings
Low noise
High torque
Long life
Small vibration
General Specification
Step Angle | 1.8° |
Step Angle Accuracy | ±5% (full step, no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80 °C Max.(rated current, 2 phase on) |
Ambient Temperature | -20 °C ~ +50 °C |
Insulation Resistance | 100 MΩ Min., 500VDC |
Dielectric Strength | 500 VAC for one minute |
Shaft Radial Play | 0.02 Max. (450 g-load) |
Shaft AxX`X`ial Play | 0.08 Max. (450 g-load) |
Electrical specification
Model | Current | Resistance | Inductance | Holding | Detent | Rotor Inertia | Bi/Unipolar | Weight | Length |
Torque | Torque | ||||||||
A/Ø | Ω/Ø | mH/Ø | N.cm | N.cm | g.cm2 | # of Leads | g | mm | |
PHB42S20-410 | 0.8 | 3.8 | 4.5 | 10 | 1 | 24 | Bi (4) | 120 | 20 |
PHB42S28-406 | 0.6 | 8 | 10 | 12 | 1.2 | 30 | Bi (4) | 150 | 28 |
PHB42S34-401 | 1.3 | 2.4 | 2.8 | 28 | 1.6 | 34 | Bi (4) | 220 | 34 |
PHB42S34-402 | 1.7 | 1.2 | 1.8 | 28 | 1.6 | 34 | Bi (4) | 220 | 34 |
PHB42S34-430 | 0.4 | 30 | 35 | 28 | 1.6 | 34 | Bi (4) | 220 | 34 |
PHB42S34-630 | 0.4 | 30 | 18 | 21 | 1.6 | 34 | Uni (6) | 220 | 34 |
PHB42S40-401 | 1.3 | 2.5 | 5 | 40 | 2.2 | 54 | Bi (4) | 280 | 40 |
PHB42S40-402 | 1.7 | 1.5 | 2.8 | 40 | 2.2 | 54 | Bi (4) | 280 | 40 |
PHB42S40-601 | 1. 2 | 3.2 | 2.8 | 28 | 2.2 | 54 | Uni (6) | 280 | 40 |
PHB42S40-630 | 0.4 | 30 | 28 | 28 | 2.2 | 54 | Uni (6) | 280 | 40 |
PHB42S48-401 | 1.3 | 3.2 | 5.5 | 52 | 2.6 | 68 | Bi (4) | 350 | 48 |
PHB42S48-402 | 1.7 | 1.8 | 3.2 | 52 | 2.6 | 68 | Bi (4) | 350 | 48 |
PHB42S48-403 | 2.3 | 1.2 | 1.6 | 52 | 2.6 | 68 | Bi (4) | 350 | 48 |
PHB42S48-630 | 0.4 | 30 | 38 | 34 | 2.6 | 68 | Uni (6) | 350 | 48 |
PHB42S60-403 | 2.3 | 1.4 | 2.5 | 70 | 3.6 | 80 | Bi (4) | 480 | 60 |
PHB42S63-403 | 2.3 | 1.5 | 2.2 | 80 | 4 | 85 | Bi (4) | 500 | 63 |

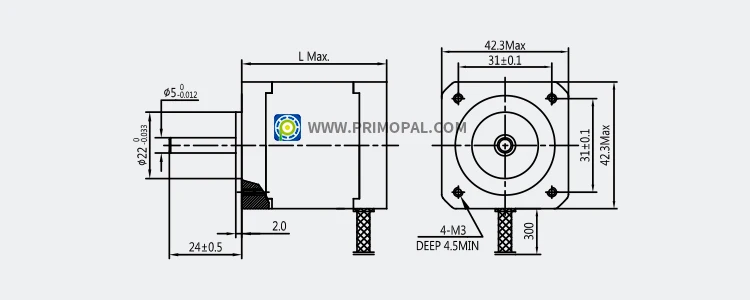

Mechanical Dimension

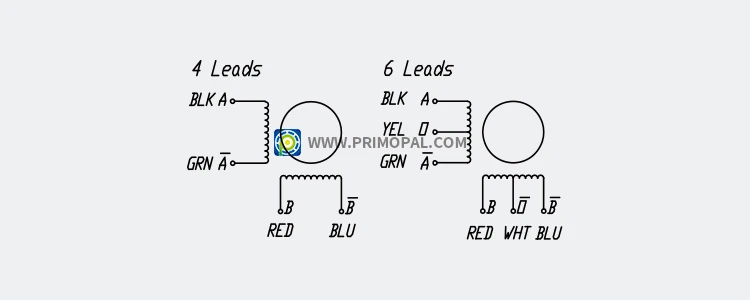

Wiring Diagram
Lead time:
RTS products will be shipped within 3 days, Products that need to be customized are shipped in 1-4 weeks according to quantity
Shipping method:
1)International Express delivery DHL&FEDEX 4-7days, TNT&ARAMEX 7-10days
2)Shipping by air 7-10 days
3)shipping by sea, delivery time depends on the destination port.
Payment:
T/T, Paypal, D/A, D/P, Western Nnion, Money Gram, L/C can be accepted.
