NEMA 23 l298n st tb6laser l9110s dc program stepping motor driver 2h806 and drv8825 closed loop ac jmc lead board set

Supplier: Shanghai PrimoPal Precision Motor Co., Ltd.
Region: Shanghai, China
Contact: Mr George Chang
Price: $21.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Product name:	NEMA 23 l298n dc programm stepping motor driver;	Warranty:	12 Months;
Single gross weight:	0.33 KG;	Brand Name:	PrimoPal;
Weight:	0.28kg;	Supply Voltage:	18~50V;
Control Type:	Open Loop;	Selling Units:	Single item;
Output Current:	1.0~4.2A;	Model Number:	PSR5042;
Microstepping Resolution:	2~128,5~125;	Connection:	Bi-Polar;
Matched Stepper Motor:	NEMA 17 ~ NEMA 24;	Single package size:	12.6X8.35X4.2 cm;
Typical Applications:	3D Printer, X-Y tables, etc.;	Place of Origin:	Shanghai China;

Bargain Sale

ALL ITEM 10% DISCOUNT

Order more than $100, Discount $5

Order more than $300, Discount $15

Order more than $500, Discount $25

All coupons will only be given during the Super September.

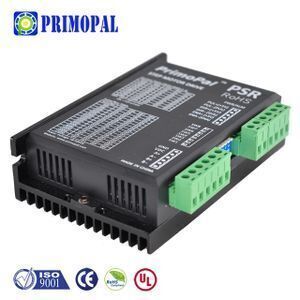

The stepper drive PSR5042 is a high performance microstepping driver based on pure sinusoidal current control technology.
Owing to the advanced technology, it could output smaller noise, lower heating, smoother movement and have better
performances at higher speed than most of the drivers in the markets.
The stepper drive PSR5042 is suitable for a wide range of stepping motors, from NEMA size 17 to 24. It can be used in various
kinds of machines, such as X Y tables, engraving machines, labeling machines, laser cutters, pick place devices, and so on.
Particularly adapt to the applications desired with low noise, low heating, high speed and high precision.
