Single Cylinder 186F Diesel Engine for sale
-
Supplier: Fuzhou Jinlongteng Power Engine & Machinery Co., Ltd. -
Region: Fujian, China -
Price: $179.00 / >=10 sets -
Min. Order: 10 sets
| Core Components: | PLC,Pressure vessel,Engine,Gear,Motor,Pump,Bearing,Gearbox; | Starting motor capacity: | 12V 0.8kW; |
| Payment Terms: | L/C,T/T; | Marketing Type: | Ordinary Product; |
| Export experience: | 86 countries export experience; | Emission Standard: | EURO 5; |
| QC control: | 3 times testing before shipping; | Cold Style: | Air-cooled; |
| Cylinder: | Single Cylinder; | Start: | Electric Start; |
| Warranty of core components: | 1 Year; | Applicable Industries: | Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Other,Advertising Company; |
| Power: | 4hp,8HP,6HP,9HP,7HP,12HP,20HP,15HP,5HP,10HP; | Engine Type: | Air-cooled; |
| Video outgoing-inspection: | Provided; | cylinder: | Single Cylinder; |
| After-sales Service Provided: | Overseas service center available; | Supply Ability: | 200000000 Set/Sets per Month Single Cylinder 186F Diesel Engine for sale; |
| After Warranty Service: | Online support,Spare parts; | Starting system: | Recoil or electric starter; |
| Brand Name: | JLT-POWER & LION KING; | Machinery Test Report: | Provided; |
| Key Selling Points: | Flexible Manufacturing; | Showroom Location: | None; |
| Dimension(L*W*H): | 385X420X450; | Displacement: | 418cc; |
| Local Service Location: | Turkey,United Kingdom,Italy,France,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,Mexico,Russia,Spain,Thailand,Malaysia,Australia,Morocco,Kenya,Argentina,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan; | Stroke: | 4 Stroke; |
| Package Preview: | ; | Weight: | 33kg; |
| Rated power/ Rated speed: | 7.7/1500 8.5/1800; | Port: | Fuzhou; |
| Approval: | ISO/CE/GS/EPA/Soncap approved; | Rated power/speed: | 10hp/3600rpm; |
| Product name: | Single Cylinder 186F Diesel Engine for sale; | Warranty: | 1 Year; |
| Place of Origin: | Fujian China; | Condition: | New; |
| Max power/ Max speed: | 8.5/1500 10.0/1800; | Packaging Detail: | Strong export standard carton. Single Cylinder 186F Diesel Engine for sale; |

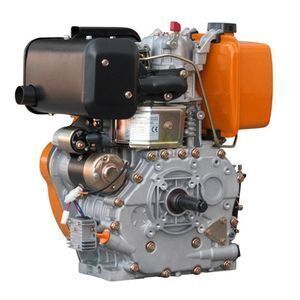

Single Cylinder 186F Diesel Engine for sale
Features:
1. Direct injection combustion system.
2. Effcient air cleaner system.
3. Quier running and good on fuel.
4. Compact in structure and small in size.
5. Multi-choice POT shafts are available.
6. Optional electric start available.
Specification:
|
170F / 178F / 186F Diesel Engines |
Features |
||
|
Direct injection combustion system. |
|||
|
Efficient air cleaner system. |
|||
|
Low noise level and stability. |
|||
|
Multi-choice PTO shafts |
|||
|
Recoil starter and electric starter. |
|||
|
Engine Items |
D170F |
D178F |
D186F |
|
Engine Type |
Single-cylinder, 4-stroke, Air-cooled, Diesel Engine |
||
|
Bore x Stroke (mm) |
70x55 |
78x64 |
86x72 |
|
Displacement Capacity (cc) |
211 |
305 |
418 |
|
Max. Output (Hp)/rpm |
5.5/3600 |
6.5/3600 |
13/3600 |
|
Max. Torque (N.m) |
|
5.5/3600 |
|
|
Fuel Consumption (g/hp.h) |
215 |
215 |
210 |
|
Combustion System |
Direct injection |
||
|
Fuel Oil Tank Capacity (L) |
3.3 |
3.3 |
5.4 |
|
Lubrication Oil |
SAE 10W/30 |
||
|
Lubrication System |
Forced Lubrication Via Trochoids Pump |
||
|
Starting System |
Recoil or Electric start |
||
|
Governor System |
All-speed Type, Mechanical Governor |
||
|
Noise Level at 7m (dB) |
95 |
95 |
96 |
|
Dry Weight (recoil) (kg) |
36 |
36 |
50 |
|
Dry Weight (electric) (kg) |
41 |
41 |
55 |
|
Dimension (mm) |
475x455x518 |
475x455x518 |
525x480x562 |
|
20ft container Qty |
240 |
240 |
192 |
|
40ft Container Qty |
512 |
512 |
400 |
- Certificate /Test Report 2004/108/EC Electromagnetic Compatibility Directive.
- Certificate / Test Report 2006/42/EC Machinery Directive.
- Certificate / Test Report 2000/14/EC Noise Emissions Directive, (amended by 2005/88/EC).
- Certificate / Test Report 97/68/EC Emission of Gaseous Particulates, (amended by 2002/88/EC).
Our products have been delivered to more than 100 countries and supported more than 150 distributors around the world.
1. Q:What is your MOQ of this item?
A: Sample order is acceptable.
2. Q: What is the lead time?
A: As usually, 25-35 days after receiving TT deposit or L/C. But we will finish order with shorter time for your urgent need.
3. Q: Where is your loading sea port?
A: Fuzhou, China.
4. Q: Is it all right to make customer’s own brand name?
A: We can be your OEM manafacture with your authorization of brand..
5. Q: What is your company available production capactiy?
A: One 40HQ container can be finished per day. The more quantities, the same delivery time.
Warranty
(1) Guarantee for one year or 1000hours (according to whichever reaches first) from ex-factory date.
(2) During guarantee period,our company will provide the free easy-damaged spare-parts for problems caused by our quality of production or raw material.
Our Service:
Guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, JLT-Power will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, JLT-Power provides cost spare parts maintenance of engine & alternator.
-
