NF type single-core UV protect anchor clamp for fiber cable

  • Supplier: N.i.u Electric Co., Ltd.
  • Region: Zhejiang, China
  • Contact: Mr NIU ELEC
  • Price: $0.50 / >=500 pieces
  • Min. Order: 500 pieces
Product details
Structure:Other;Breaking load:5KN,8KN;
Port:Ningbo or Shanghai;Usage:Other;
Material:Other;Packaging Detail:Standard Package;
Product name:Dead End Clamp;Model Number:NF;
Supply Ability:2000 Piece/Pieces per Day;State of Origin:China;
Place of Origin:Zhejiang China;Standard or Nonstandard:Standard;
Conductor(mm):(3-7)-(8-10);Port:Ningbo or Shanghai;
Certification:ISO9001;Payment Terms:L/C,T/T,Western Union,MoneyGram;
Type:Clamp;Brand Name:NIU;
Product Description

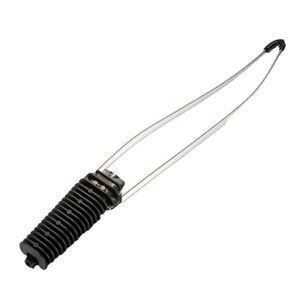

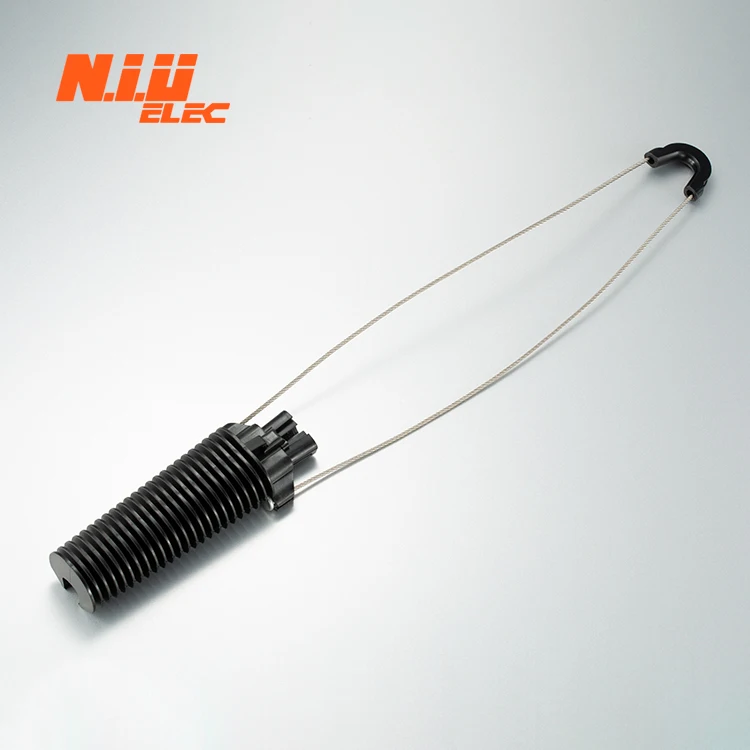

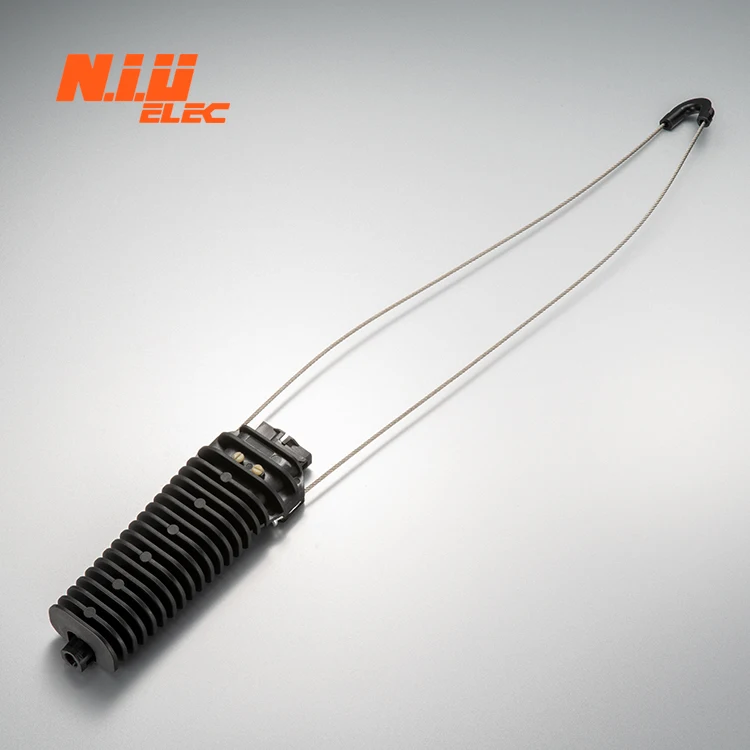

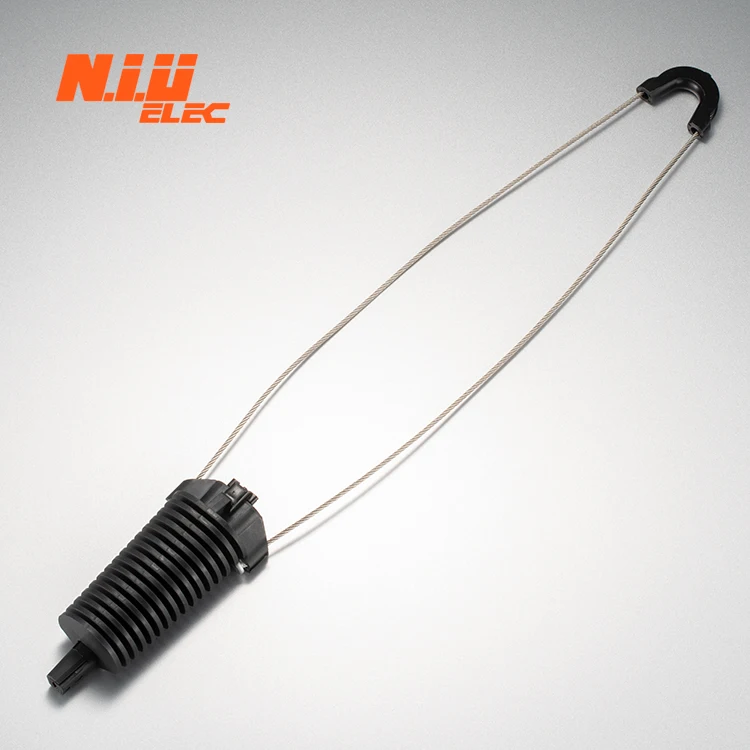

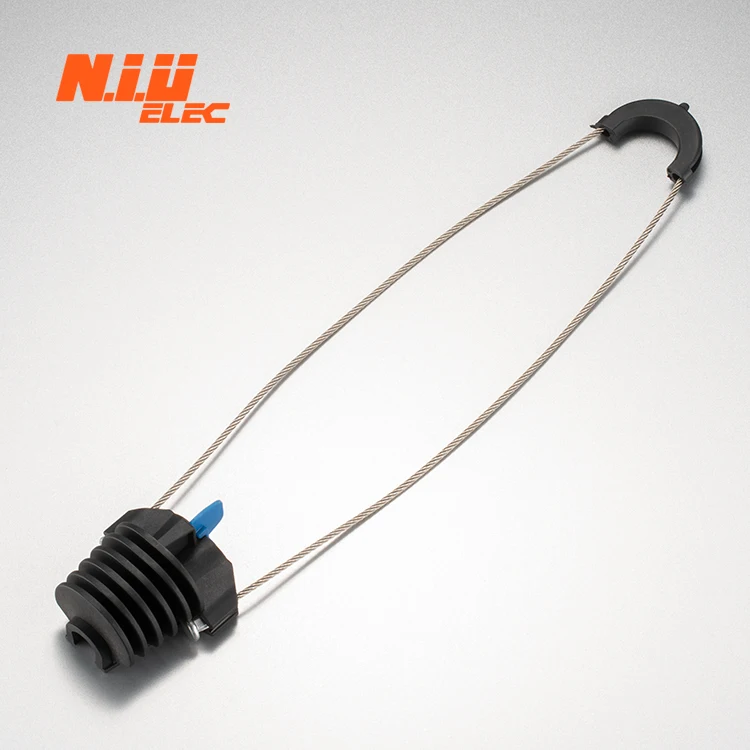

NF Single-core UV protect Anchor Clamp



The NF UV Protect Dead End Clamp is designed for a fast, easy and reliable dead-ending of fiber optic cables on access networks with spans up to 100 m.

A pair of wedges grips the cable automatically within the conical body.

The installation does not require any specific tools and the operating time is drastically reduced.

•Standard: NFC33-042



Item No. Conductor(mm) Breaking load  Package(pcs) Gross weight(kg)
NF037 3-7 5KN 100 10
NF068 6-8 5KN 100 12
NF0810 8-10 5KN 100 13
NF01012 10-12 8KN 100 20
NF01214 12-14 8KN 100 21.5
NF01416 14-16 8KN 100 22
NF01618 16-18 8KN 100 24
NF01820 18-20 8KN 100 25



Shipping:

Port of Departure: Ningbo or Shanghai
Delivery Time: 15 days after receiving the payment
