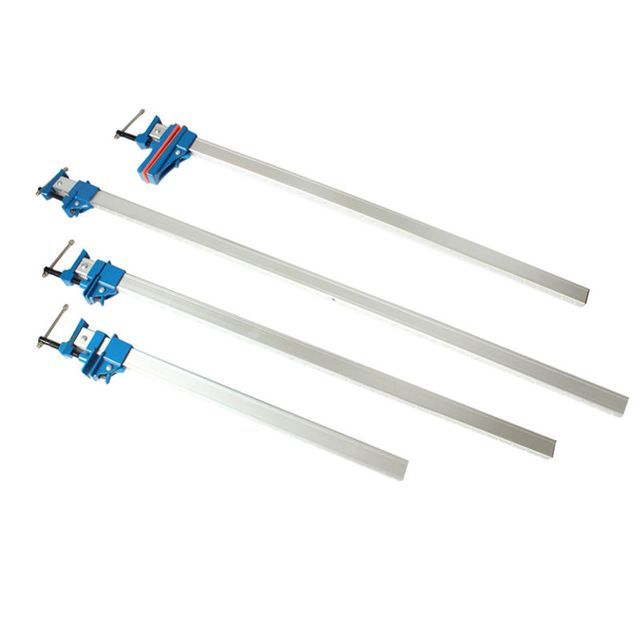

product name: | Aluminum Bar Clamp | Package: | 10pcs/box |
measuring system: | imperial, metric | MOQ: | 1 box |
Supply capacity: | 5000 pieces per day | Function: | aluminum |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal | size: | 24'' 36'' 48'' 60'' 72'' |
model: | AT-1 | Packaging Details: | Carton T-bar sash clips per box of 10 |
Standard or non-standard: | standard | Origin: | Sichuan, China |
application: | woodworking clamping tool | type: | T-shaped casement clamp |
structure: | Aluminum Carpentry Clamps | Material: | metal, aluminum |
usage: | Woodworking fixture | brand: | alit |
port: | Shanghai, Guangzhou | color: | red blue |
Package preview: |
size | Length (mm) | Clamping range(mm) | Chuck length (mm) | Chuck width(mm) | Number / Box | |||||
Ordinary T-stick | ||||||||||
twenty four'' | 620 | 520 | 40 | 40 | 10 | |||||
36'' | 930 | 830 | 40 | 40 | 10 | |||||
48'' | 1230 | 1125 | 40 | 40 | 10 | |||||
60'' | 1550 | 1430 | 40 | 40 | 8 | |||||
72'' | 1870 | 1735 | 40 | 40 | 8 | |||||
Reinforced T-bar | ||||||||||
twenty four'' | 620 | 450 | Post-90s | 40 | 10 | |||||
36'' | 930 | 830 | Post-90s | 40 | 10 | |||||
48'' | 1230 | 1125 | Post-90s | 40 | 10 | |||||
60'' | 1550 | 1430 | Post-90s | 40 | 8 | |||||
72'' | 1870 | 1735 | Post-90s | 40 | 8 |
