German heavy duty F clip extruded wood metal woodworking clip high strength woodworking clip

Supplier: Chengdu Arit Technology Co., Ltd.
Region: Sichuan, China
Contact: Ms ARIT CD
Price: $1.10 /piece
Min. Order: 1 piece

Click here to contact

Product details

product name:	woodworking jig	application:	assembly
deal with:	plastic	Chamber wall thickness:	5mm 6mm 7mm 8mm
port:	Shanghai, Guangzhou	structure:	DIN5117 Fixtures
Capacity:	1250 kg force	Custom Support:	OEM
payment terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,PayPal	Material:	cast iron steel
Warranty:	3 years	Supply capacity:	5000 pieces per day
length:	100mm 150mm 200mm 300mm 400mm 500mm 600mm	place of origin; place of origin:	Sichuan, China
Packaging Preview:		Packaging Details:	1 set of woodworking F clips per carton
Minimum order quantity:	10PCS	Package:	10/box
grade:	DIY	Clip material:	steel
Fixture Type:	F clip	Clamping depth:	50mm 80mm 120mm

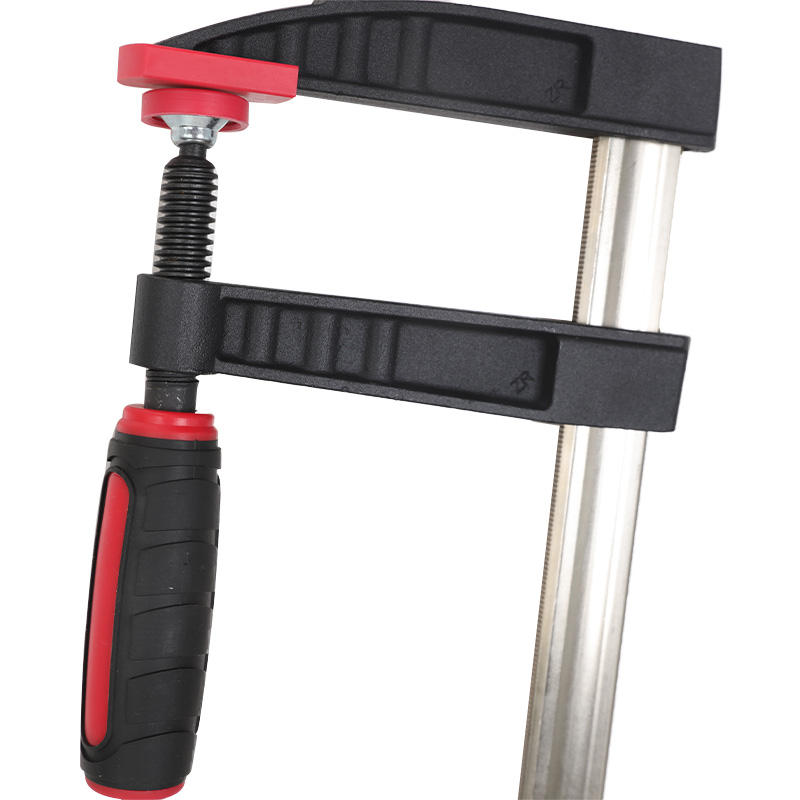

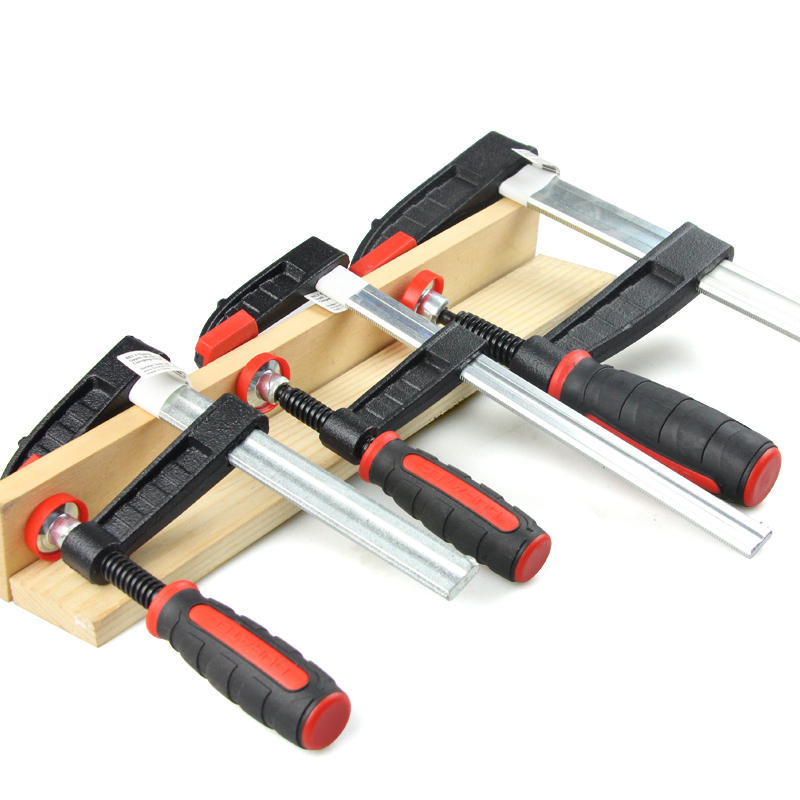

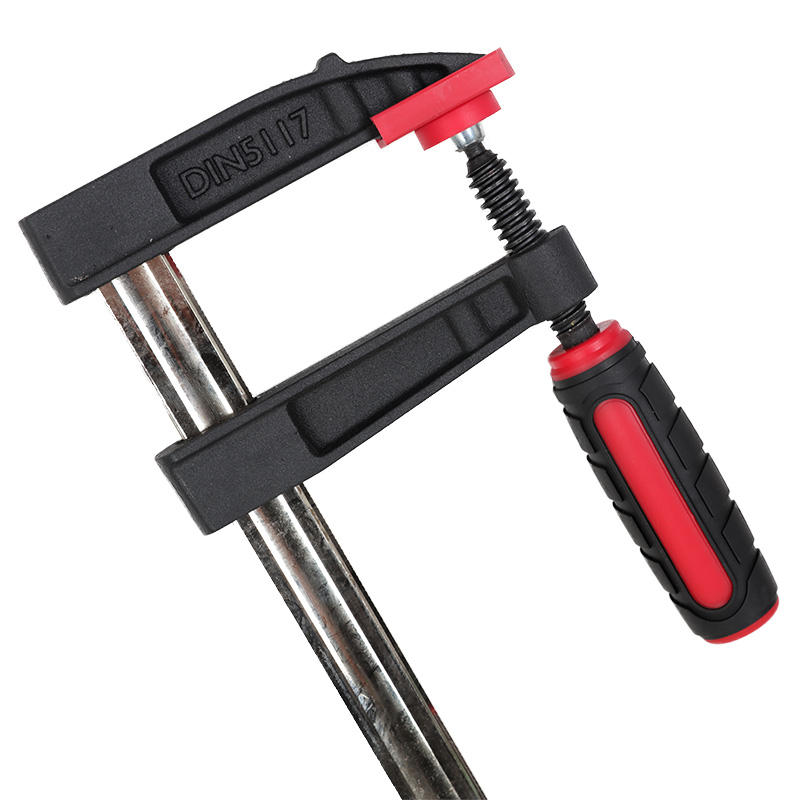

120*300 heavy duty woodworking F clip German F clip high strength woodworking clip

German type
Made of carbon steel
One piece, heavy duty
Two-color dip plastic handle
Size: 120x2000mm
Available sizes: from 50x100mm to 120x2000mm
OEM orders are also accepted.

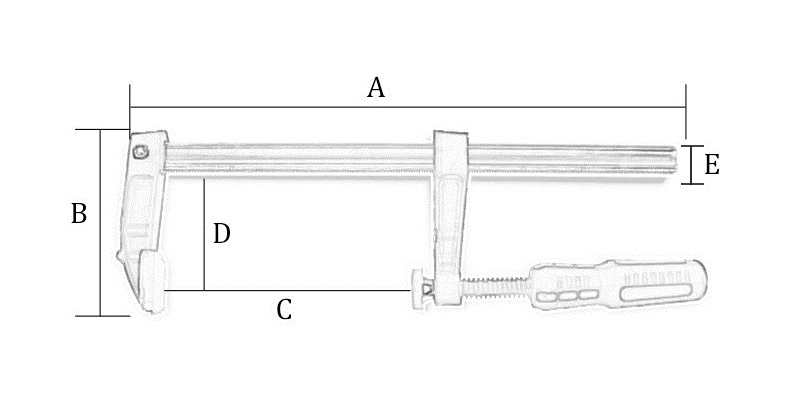

size	One	Second	C	D	Second
50×150	200mm	50mm	150mm	50mm	15mm
50×200	245mm	50mm	200mm	50mm	15mm
50×250	300mm	50mm	250mm	50mm	15mm
50×300	350mm	50mm	300mm	50mm	15mm
80×300	370mm	80mm	300mm	80mm	20mm
80×400	470mm	80mm	400mm	80mm	20mm
80×500	570mm	80mm	500mm	80mm	20mm
120×300	370mm	120mm	300mm	120mm	28mm
120×500	570mm	120mm	500mm	120mm	28mm
120×600	670mm	120mm	600mm	120mm	28mm
