lif Length: | 6m; | Lifting Eye Type: | Folded Eye,Flat Eye; |
Material: | Polyester; | Key word: | 1Ton Cheap Price Endless Type Polyester Webbing Sling; |
Model Number: | Web Sling; | Supply Ability: | 20000 Piece/Pieces per Month color code lifting sling; |
Width: | 30-300mm Sling Webbing Sling Lifting Sling; | Lifting Capacity: | 1 Ton; |
Product name: | 1Ton Cheap Price Endless Type Polyester Webbing Sling; | Place of Origin: | Hebei China,China; |
Brand Name: | chendiao; | Port: | tianjin port; |
Packaging Detail: | Carton box for 1Ton Cheap Price Endless Type Polyester Webbing Sling; | Shape: | Flat; |
Safety factor: | 5:1 6:1 7:1 8:1; | Sling Color: | Blue; |
Type: | Webbing Sling,Webbing Sling; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Certification: | ce; |
1Ton Cheap Price Endless Type Polyester Webbing Sling
the specification of 1Ton Cheap Price Endless Type Polyester Webbing Sling
1)Never use sllngs with damages or defects
2)Use slings with clear identifications
3)Check working Load Limit,length and working position
4)Never use slings with knots
5)Never use slings on sharp edges without correct protection
6)Use the correct mode factor and check lifting angle
7)Trapping the sling when lowering the load should be avoiede
8)The temperature should be between -40 and 100
9)Stitching should not be placed over hooks or others lifting devices
10)Sling should be stored in dry and clear conditions.Away from heat sources,direct sunlight and UV rays
11)In case of chemical environment,please check with the manufacturer
12)Elongation rate <3% at working load ande <10% at breaking load
Webbing width (mm) | Colourcoded according to EN 1492-1 | Working load limited with 1 webbing sling (kgs) | Working load limited with 2 webbing slings (kgs) | |||||||
Straight lift | Choked | β | Straight lift up to 45° | Choked lift up to 45° | Straight lift up to 45° | Choked lift 45°-60° | ||||
0°-7° | 7°-45° | 45°-60° | ||||||||
1.0 | 0.8 | 2.0 | 1.4 | 1.0 | 1.4 | 1.12 | 1.0 | 0.8 | ||
25 | WLL1T | 1.000 | 8.00 | 2.000 | 1.400 | 1.000 | 1.400 | 1.120 | 1.000 | 8.00 |
50 | WLL2T | 2.000 | 1.600 | 4.000 | 2.800 | 2.000 | 2.800 | 2.240 | 2.000 | 1.600 |
75 | WLL3T | 3.000 | 2.400 | 6.000 | 4.200 | 3.000 | 4.200 | 3.360 | 3.000 | 2.400 |
100 | WLL4T | 4.000 | 3.200 | 8.000 | 5.600 | 4.000 | 5.600 | 4.480 | 4.000 | 3.200 |
125 | WLL5T | 5.000 | 4.000 | 10.000 | 7.000 | 5.000 | 7.000 | 5.600 | 5.000 | 4.000 |
150 | WLL6T | 6.000 | 4.800 | 12.000 | 8.400 | 6.000 | 8.400 | 6.720 | 6.000 | 4.800 |
200 | WLL8T | 8.000 | 6.400 | 16.000 | 11.200 | 8.000 | 11.200 | 8.960 | 8.000 | 6.400 |
250 | WLL10T | 10.000 | 8.000 | 20.000 | 14.000 | 10.000 | 14.000 | 11.200 | 10.000 | 8.000 |

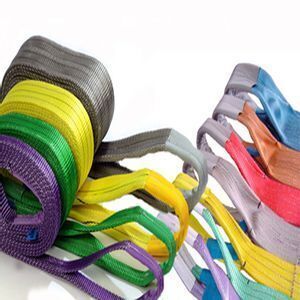

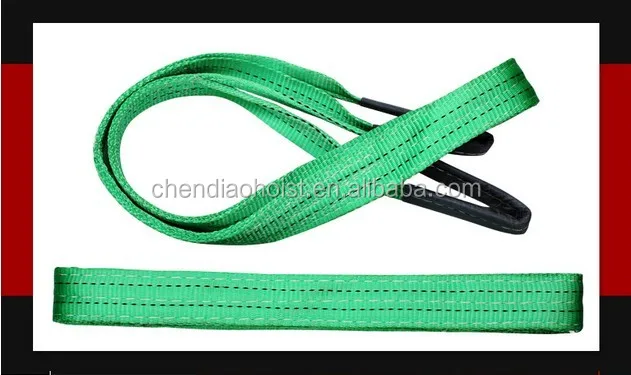

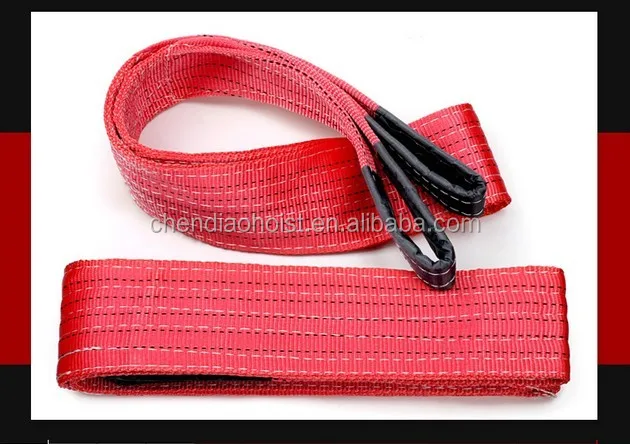

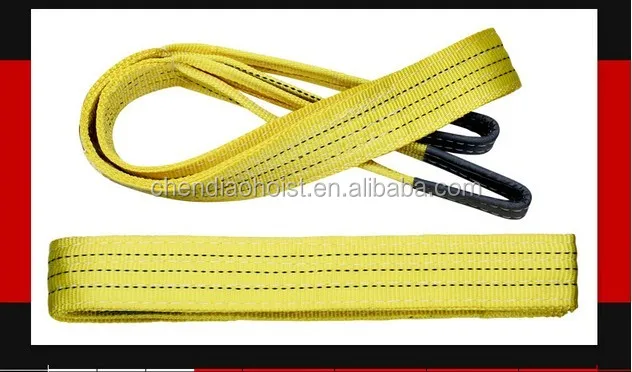

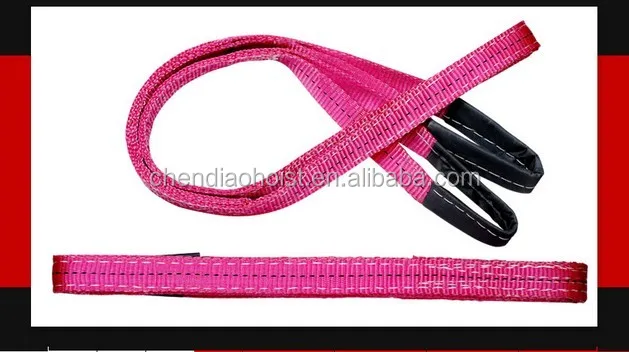

The pictures of 1Ton Cheap Price Endless Type Polyester Webbing Sling
The use of color code lifting sling
the packing and shiping of 1Ton Cheap Price Endless Type Polyester Webbing Sling
