 Do more alignments in fewer time. Productivity plus increased accuracy and stability means more profitable. With 3d imaging technology, Road Buck 3D wheel aligners carry out reliable wheel alignment. Not only does it add to the professional appearance of your workshop, but it also improves productivity and performance levels.

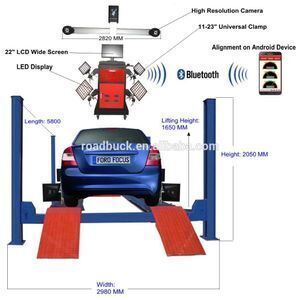

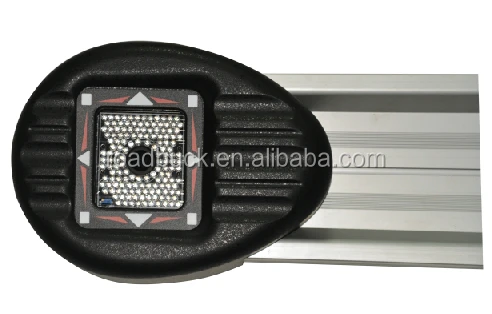

	High Resolution Camera	More productive than the main stream 3D alignment machine, the Road Buck R600 aligners use two high-resolution cameras, the picture transmision can reach as much as 15 FPS. That assures a live display of the alignment and accuracy. Performing alignment without stand in front of the computer

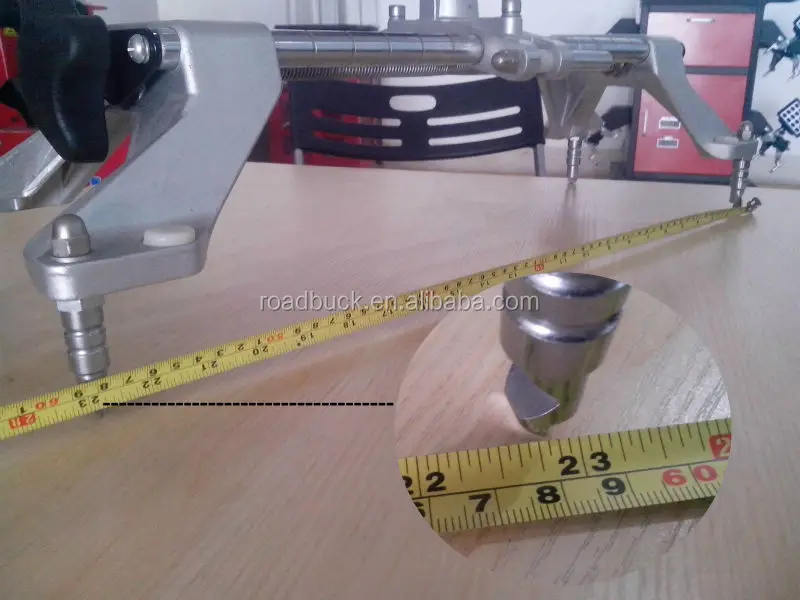

	Universal Clamp	11" to 23" could be used on almost all the wheels in the world, and the uniquely designed claws firmly clutch the rims.
	Endurable and ELECTRONIC-FREE	Endurable and non-electronics targets save money from change consumables like battery and electronic conponents. To some extent, that increases stability and productivity

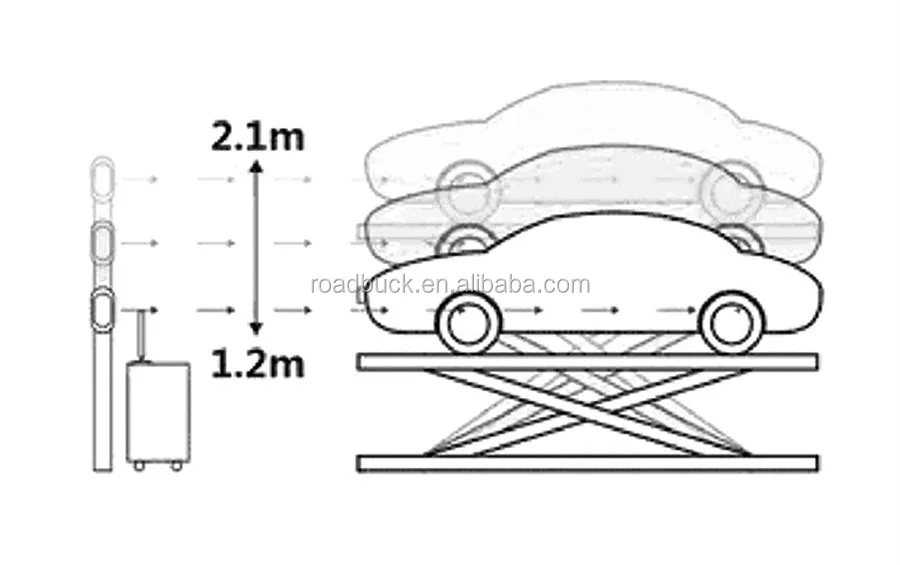

	Movable Camera Beam	The movable beam along with the automatic tracking system makes a autotracking beam which will automatically adjust it's height according to the height of the targets. This enables the technicians doing alignment in a comfortable position and changing the height whenever he want

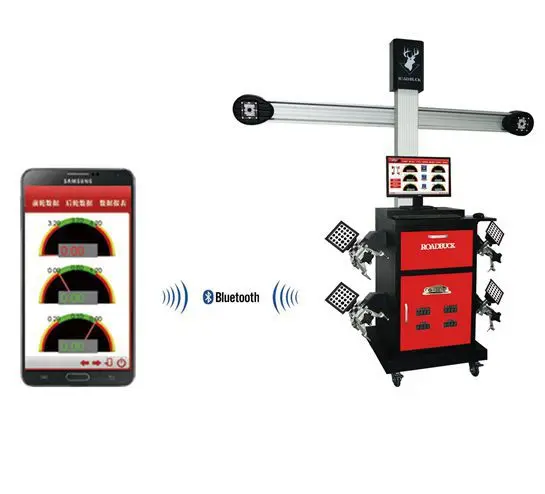

	Operation on Android Device	Android App enables technicians to do measurement and adjustment in any posistion and any where around the vehicle without go back and forth between computer and vehicle

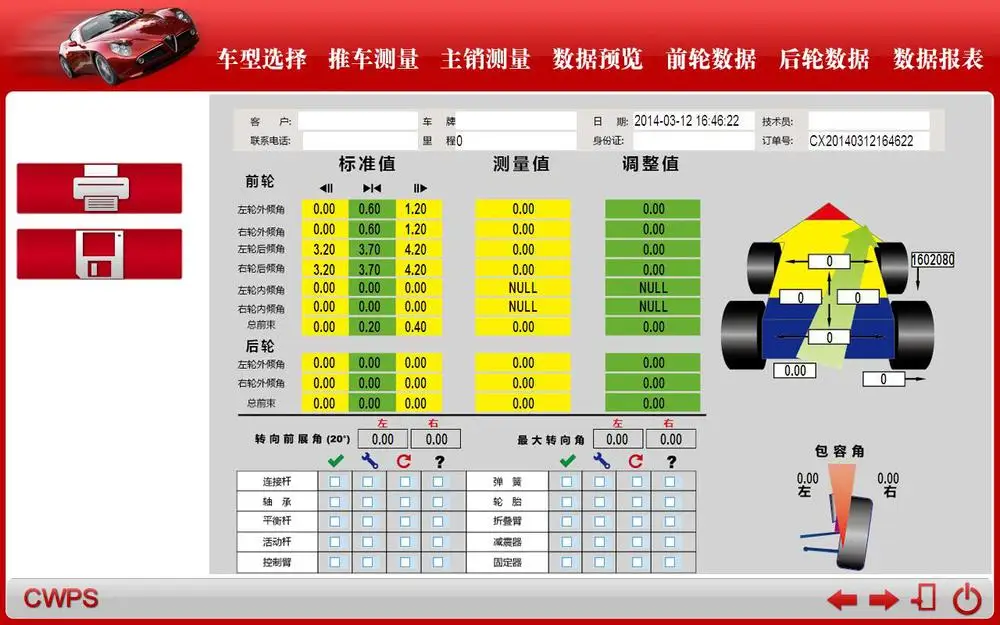

	Specs Comparison and Print	All the alignment data are presented here. That offers a chance to compare after-adjustment specs with measured specs and standard specs.   you can review the specs on sreen or paper by printing them.

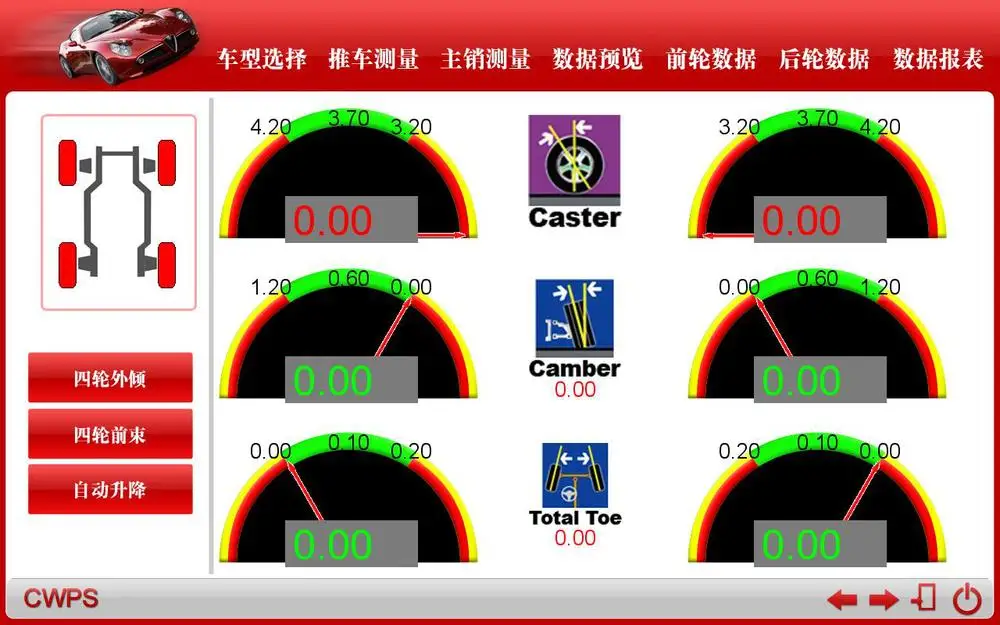

	Live display of Caster, Camber and Toe	Trough the high resolution camera, the computer will constantly calculate the alignment of the four wheels and present them on the screen

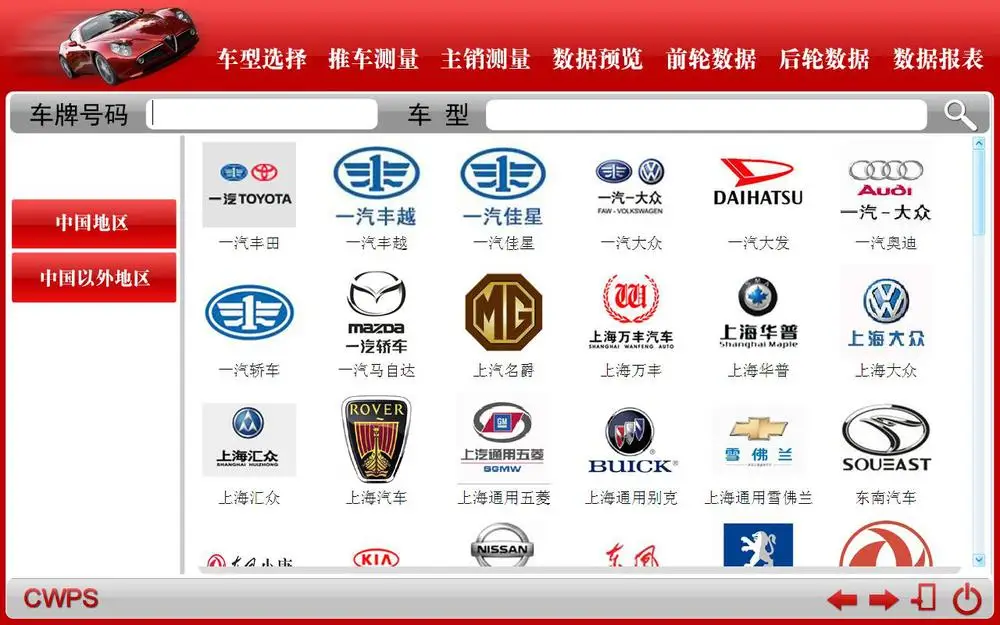

	Complete and up-to-date vehicle specs	The complete and full database covers most of the cars in the planets, the database is constantly updated by our engineers and availible for free downloading

 Specifications

• A-arm Adjustment
• Subframe Adjustment
• Faster Alignment Measurement
• Live Show of Camber, Caster and Toe
• Vehicle Dimensions Measurement
• Wheel Rolling Radius Measurement
• Optional Screen Size for Main Monitor (32" and 22")
• 4 Targets With Universal Wheel Clamps 11"–23"
• Windows OS PC With a Printer
• Easy-To-Understand Symbols and Simplized Procedures
• Complete and Up-To-Date OEM Specs
• Free Service for OEM Specs Update and Download
• Car Specs Database Addible
• 3D Animation Alignment Instruction
• 3D Measurement Screen With All Relevant Data
• Voice Guide

Parameters

Features

* LCD, manual / automatic input of distance and diameter of the rim, making data entry faster

* Strict implementation of the heat treatment process of high-precision machine tool spindle to ensure the accuracy of repeated measurements

* Includes balancing, static balance aluminum rims balance function

* Optional security guard and no center hole jig

* Suitable for cars, light commercial vehicles, light trucks

Technical parameters

Maximum Wheel Weight: 65kg

Power: 0.2kw

Voltage: 220V

Balancing accuracy: ± 1g

Balance of speed: 220r.p.m

Rim diameter: 10 "~ 24" (265mm-615mm)

Rim Width: 1.5 "~ 20" (40mm-510mm)

Balance period: 8 seconds

Noise: <70 db

Packing size: 960mm * 760mm * 1230mm
