Machine HSS internal hexagon Rotary broach kit tools factory direct sales

Supplier: Taizhou Ke Chi Machinery Co., Ltd.
Region: Zhejiang, China
Price: $379.80 /set
Min. Order: 1 set

Click here to contact

Product details

Certificate:	ISO9001;	Broach shape:	Hexagon;
Brand Name:	Jingchi tools;	OEM:	Accept;
Packing:	Customers' Request;	Hardness:	Suit hardness less than HRC30;
Place of Origin:	China;	Packaging Detail:	Carton;
Single package size:	25X10X13 cm;	Application:	Machining;
Shank Size:	MT shank/Straight shank;	Model Number:	KC-CX;
MOQ:	1;	Single gross weight:	1.6 KG;
Package Preview:	;	Product Name:	rotary broach set of tools;
Material:	High Speed Steel;	Selling Units:	Single item;

Machine HSS internal hexagon Rotary broach kit tools factory direct sales

Product Description

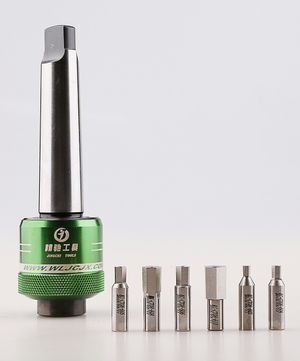

KC-CX SERIES ROTARY BROACH TOOL

Rotary broach tool works by rotating the cutting force.It is most suitable for geneal machines,CNC automatic lathe,drilling machine.It can be used to make blind holes,through holes or regular/irregular polygons.Apart from standard hexagon and square holes,special shapes such as star shape and spline can also be cstomized.

1.Product performace and features

1.No need to malke Punch head or electrode,reduce the cost,quaity is good, improve efficiency,has strong generality.

2.One step of lathe work,reduce process and processing time.Use this tool can make square hole and hexagonal hole etc.Only need 30s to process a hexagonal hole which is 10mm width and 15mm depth.

3.Suitable to process parts which hardness less than HRC30.

2.Method of use

1.Use rotary broach tool,you can rotate the tool or the parts.It means you can use on lathe,milling machine,drill machine and CNC machine.In order to make sure the working accuracy,you must calibrat center.

2.Working speed:800-2000R.P.M,Feed:0.02-0.1mm/rev,Increase 2-3times for copper/aluminum parts

KC-CX INTERNAL ROTARY BROACH TOOL

Product Data

Model	Size					Broach Head
	Size
	Shank	D1	d	L	C
KC-CX08AM2	MT2	45	8	70	18	KC-CT08A-***
KC-CX08AM3	MT3
KC-CX08AM4	MT4
KC-CX08A12	Φ12×40
KC-CX08A16	Φ16×50
KC-CX08A20	Φ20×60
KC-CX08A25	Φ25×60
KC-CX08A32	Φ32×80
KC-CX16(A/B)M2	MT2	62	16	112/ 152	A=40 B=80	KC-CT16(A/B)-***
KC-CX16(A/B)M3	MT3
KC-CX16(A/B)M4	MT4
KC-CX16(A/B)A16	Φ16×50
KC-CX16(A/B)A20	Φ20×60
KC-CX16(A/B)A25	Φ25×60
KC-CX16(A/B)A32	Φ32×80
