Performance strength internal punching rotary broaching tool golder for sale

Supplier: Taizhou Ke Chi Machinery Co., Ltd.
Region: Zhejiang, China
Price: $305.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Place of Origin:	China;	Application:	Machining;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Packing:	Customers' Request;
OEM:	Accept;	Hardness:	Suit less than HRC30;
Supply Ability:	500 Piece/Pieces per Month vertical broaching machine splined hole wobble broach rotary bro;	Model Number:	KC-CX08P;
Product Name:	rotary broach tool;	Certificate:	ISO9001;
Shank Size:	Mohs taper shank/Straight shank;	Port:	Ningbo or Shanghai;
Brand Name:	Jingchi tools;	Material:	High speed steel;
Packaging Detail:	Carton;	MOQ:	1;

Performance strength internal punching rotary broaching tool golder for sale

Product Description

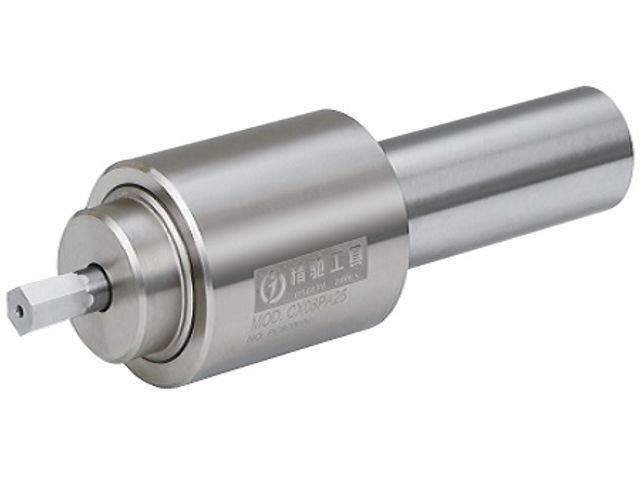

KC-CXP SERIES ROTARY BROACH TOOL

Rotary broach tool works by rotating the cutting force.It is most suitable for geneal machines,CNC automatic lathe,drilling machine.It can be used to make blind holes,through holes or regular/irregular polygons.Apart from standard hexagon and square holes,special shapes such as star shape and spline can also be cstomized.

1.Product performace and features

1.No need to malke Punch head or electrode,reduce the cost,quaity is good, improve efficiency,has strong generality.

2.One step of lathe work,reduce process and processing time.Use this tool can make square hole and hexagonal hole etc.Only need 30s to process a hexagonal hole which is 10mm width and 15mm depth.

3.Suitable to process parts which hardness less than HRC30.

2.Method of use

1.Use rotary broach tool,you can rotate the tool or the parts.It means you can use on lathe,milling machine,drill machine and CNC machine.In order to make sure the working accuracy,you must calibrat center.

2.Working speed:800-2000R.P.M,Feed:0.02-0.1mm/rev,Increase 2-3times for copper/aluminum parts

KC-CXP INTERNAL ROTARY BROACH TOOL

Maximum processing capacity:

CX08P: ≤10 ≤7

CX16P: ≤17 ≤12

Model	Size					Broach Head
	Size
	Shank	D1	d	L	C
KC-CX08P2	MT2	42	8	80	18	KC-CT08-***
KC-CX08P3	MT3
KC-CX08P4	MT4
KC-CX08P12	Φ12×40
KC-CX08P16	Φ16×40
KC-CX08P20	Φ20×60
KC-CX08P25	Φ25×60

KC-CX16P2	MT2	58	16	125	40	KC-CT16-***
KC-CX16P3	MT3
KC-CX16P4	MT4
KC-CX16P16	Φ16×40
KC-CX16P20	Φ20×60
KC-CX16P25	Φ25×60
KC-CX16P32	Φ32×80

Company Information

TaiZhou KeChi machinery Co.,Ltd is a company specialising in the production of mirror roller burnishing tools, rotary broach tools, knurling tools, combined skive-burnishing tool, diamond burnishing tool.And setting research and development production,sales in one integrated manufacturers.The company has its own R & D team and after-sales service team,.It focus on the mirror roller burnishing, rotary broach, knurling and other technical areas. During the past ten years, it has provided perfect solutions for thousands of customers in auto parts, aerospace, hydraulic, military, cylinder, ship, construction machinery, medical, agricultural machinery, air conditioning,motor and so on.

Our certificate

Workshop

Test equipment

Exhibition

Our Services

1. Feedback within 2 hours

2. Professional suggestion on product;

3. Could issue the C/O(certificate of origin)to customer to reduce the tax;

4. Could accept payment terms of T/T, L/C, western union, paypal and etc.

FAQ

1.You are traders or manufacturers?

A: We are a factory. you are most welcomed to visit us
2.Q:What is the material of your products?
A: The material is mainly steel,Cast iron(Ductile cast iron) We can also choose material as customer requirements.
3.What is the artwork of your products,can print our logo?
A: Yes,we can provide your logo.
4.Q: What is your MOQ ?
A: 1 set per style.
5.Q: What is the lead time?
A: It depends on your order quantity.
6.Q: What are your payment terms?
A: 30% deposit and balance T/T before shippment or L/C at sight.
