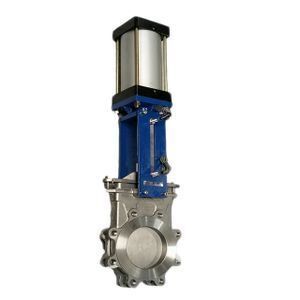

lug type stainless steel pneumatic knife gate valve
-
Supplier: Tianjin Tanggu Jinbin Valve Co., Ltd. -
Region: Tianjin, China -
Contact: Ms Lucky Will -
Price: $10.00 / >=10 pieces -
Min. Order: 10 pieces
| Connection: | Flange Ends; | Operation: | hand wheel, pneumatic; |
| Application: | General; | Product name: | lug type stainless steel pneumatic knife gate valve; |
| Place of origin: | Tianjin,China; | Supply Ability: | 1000 Piece/Pieces per Month lug type stainless steel pneumatic knife gate valve; |
| Power: | Pneumatic; | Structure: | Gate; |
| Medium: | Water, slurry; | Media: | Water; |
| Temperature of Media: | Medium Temperature; | Certificate: | ISO9001:2008 API; |
| Packaging Detail: | standard export wooden case for lug type stainless steel pneumatic knife gate valve; | Size: | DN50-DN10OO; |
| Port Size: | DN50-DN10OO; | Standard: | ANSI BS DIN; |
| Port: | Xingang, Tianjin; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
| Body material: | stainless Steel; | Standard or Nonstandard: | Standard; |
| Model Number: | PZ643X-10/16; | Place of Origin: | Tianjin China; |
| Type: | Gate Valves; | Brand Name: | THT; |
lug type stainless steel pneumatic knife gate valve
Specification:
Size: DN50-DN1000
Nominal Pressure: PN6, PN10, 150lb.
Flange connection apply for PN6, PN10, l50lb.
Features:
The knife gate valve has a small installation space, low working pressure, and is not easy to accumulate the sundries, and the price is low.
Pressure rating and temperature:
| Size | Pressure rating | Body seal | Seat seal | Working temperature |
DN50 - DN200 | PN10 | 15 bar | 10 bar | NBR (-10 - 80oC) |
DN250-DN300 | PN6 | 9 bar | 6 bar | NBR (-10 - 80oC) |
DN350 - DN1000 | PN2.5 | 3.75 bar | 2.5 bar | NBR (-10 - 80oC) |
Material List:
Part | Material |
Body | CF8 / CF8M |
Gate | Stainless steel 304 |
Seat | NBR |
Stem | Stainless steel 420 |
Lead rod | Stainless steel 420 |
Hand wheel | Steel |

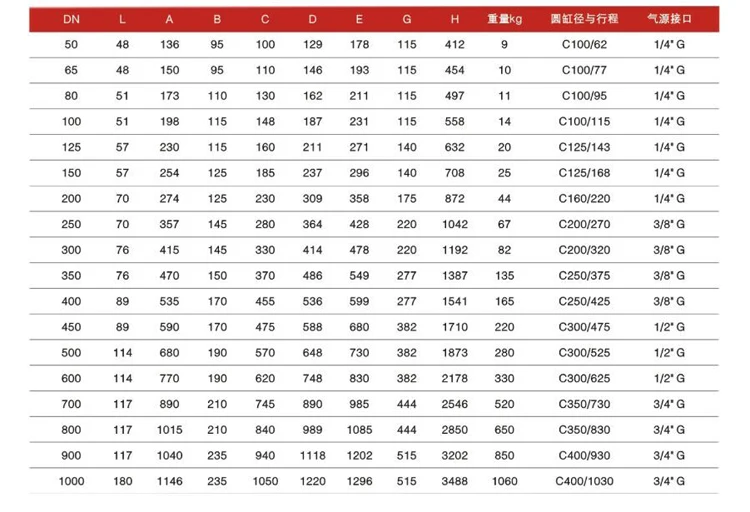

Main dimensions:
Please contac us for the technical data detail.
Application:
This knife gate valve is widely used in water and waster water.
Pneumatic knife gate valve display:
Q1: Can I have my own customized product?
A: Yes, your customized requirements for color, size, package, mark, etc.
Q2: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance,balance before shippment
-
