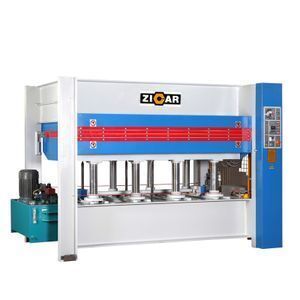

ZICAR JY3848AX120 Hydraulic Hot Press Machine / Wooden door Making Machine

Product details
Hot oil pump power:1.5/2.2/2.2kw;Brand Name:ZICAR;
Press platen dimensions:1300*2500*42mm;Packaging Detail:ZICAR JY3848AX120 Hot Press Machine / Wooden door Making Machine 1.strong export plywood case for long-distance transport 2.overall dimensions: 370*166*204/206/209cm;
Voltage:380V;Showroom Location:Viet Nam,Peru,India,Russia,Chile;
Power (kW):4kW;Max. total thrust:100t(3.0kg/cm2);
Key Selling Points:High Productivity;Machinery Test Report:Provided;
Dimension(L*W*H):370*166*204/206/209cm;Certification:CE/ISO9001;
Port:Qingdao, China;Marketing Type:New Product 2020;
Working Table Size(mm):1300×2500;Core Components:Motor;
Local Service Location:Viet Nam,Peru,Indonesia,Russia,Chile;Max. platen opening:380/100/100mm;
Pressure of hydraulic system:265kg/cm2;Weight (KG):5200;
Overall dimensions:370*166*204/206/209cm;Supply Ability:200 Set/Sets per Month ZICAR JY3848AX120 Hot Press Machine/Wooden door Making Machine;
Warranty of core components:1 Year;Pressure:120T;
Warranty:1 Year;Applicable Industries:Machinery Repair Shops,Manufacturing Plant,Farms,Home Use,Retail,Construction works ;
Oil cylinder:90*8pcs;Type:HOT PRESS;
Condition:New;Name:ZICAR JY3848AX120 Hot Press Machine/Wooden door Making Machine;
After Warranty Service:Online support;Payment Terms:L/C,T/T,Western Union;
Net weight:4900/5300/5600kg;Hydraulic motor power:4kw;
Max.Pressure(T):120;Video outgoing-inspection:Provided;
Place of Origin:Shandong China;

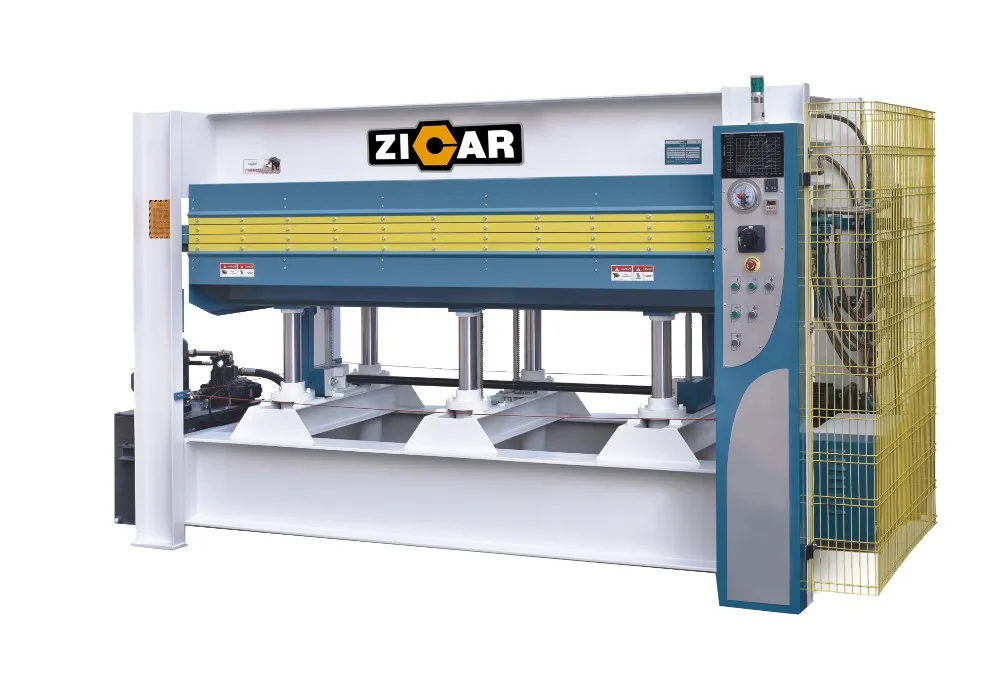

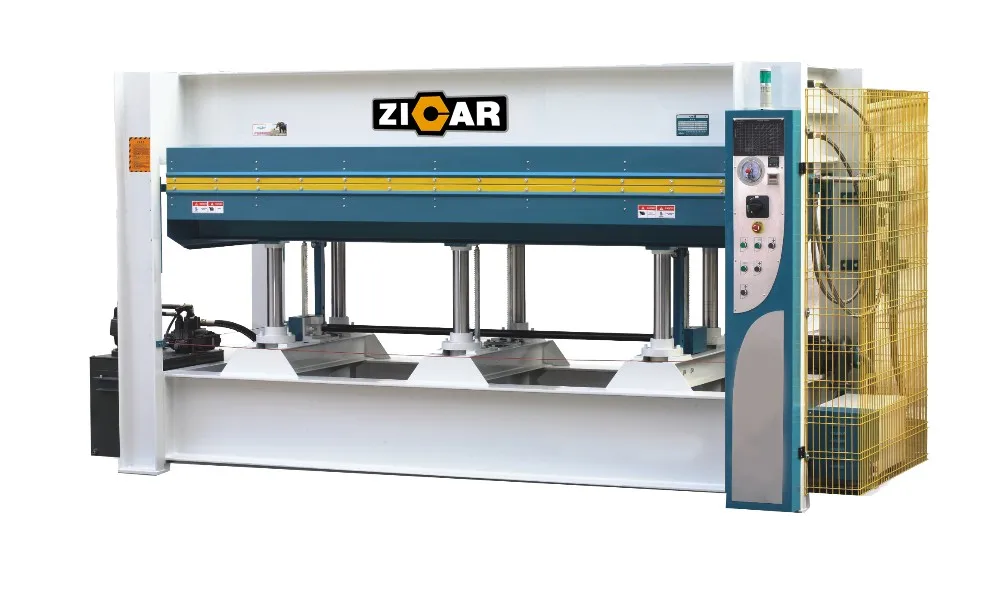

                ZICAR JY3848AX120 Hot Press Machine/Wooden door Making Machine



Parameter



Model JY3848AX120
1LAYER  2LAYERS  3LAYERS
Press platen dimensions 1300x2500x42mm
Max.total thrust 120t(3.7kg/cm²)
Pressure of hydraulic system 265kg/cm²
Max.platen opening 380mm  100mm   100mm
Oil cylinder Φ90x8pcs
Hydraulic motor power 4kw
Hot oil pump power 1.5kw/2.2kw/2.2kw
Overall dimension(LXWXH) 370x166x204/206/209mm
Net weight 4900kg  5300kg  5600kg



Features



Suitable to press veneer ,fireproofing-board ,decorating-paper etc .

Adopt solid steel heat conduction board with deep-hole drilling technic ,configure with pedal emergency switch,quadric temperature protection device etc; Main hydraulic parts cylinders and composites are imported from Japan and Taiwan .

Heating type :

1.Electric heating with circulating heat-transmission oil (standard configuration );

2.Steam heating (optional)

3.With both electric and steam hearing ,suitable for shortage of steam area

Detailed Images

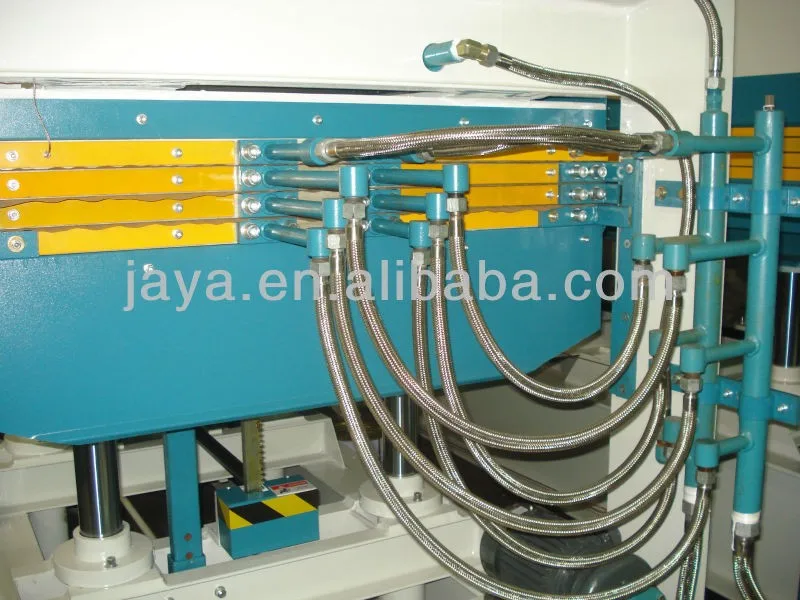

Heating pipe

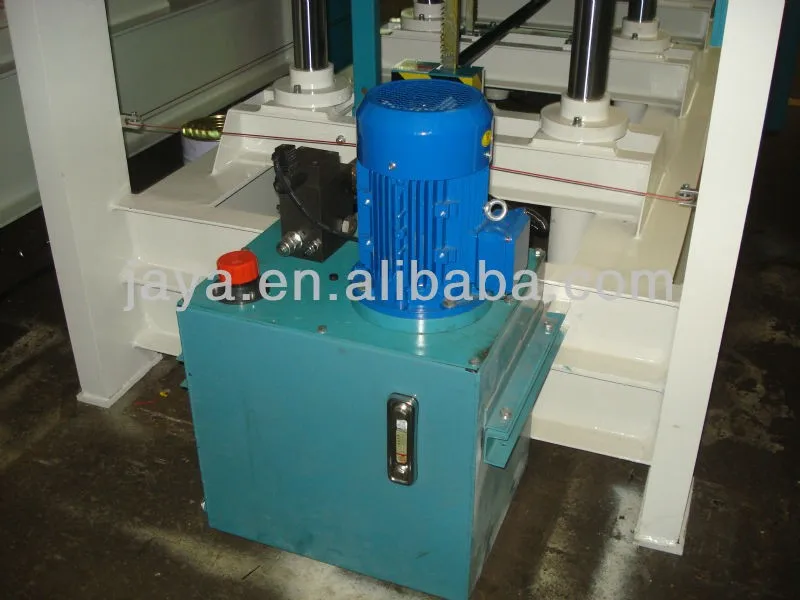

Hydraulic pump

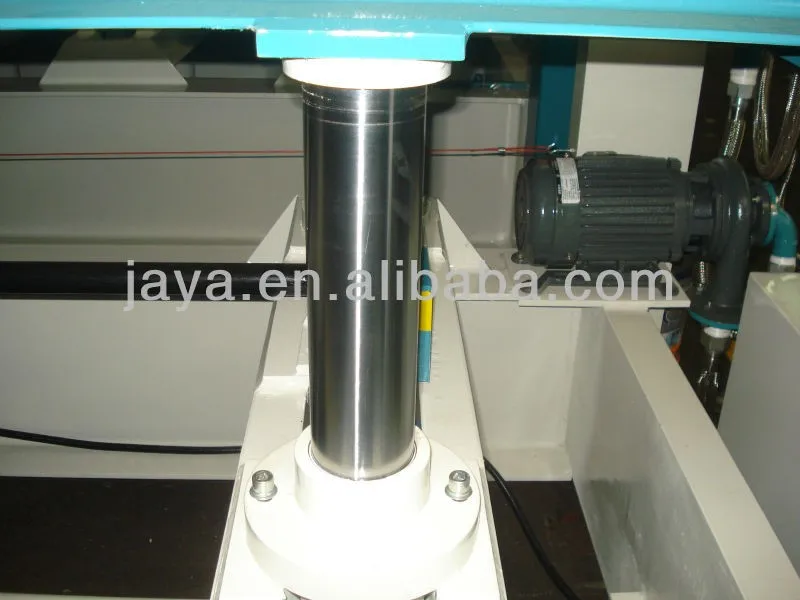

Hydraulic cylinder

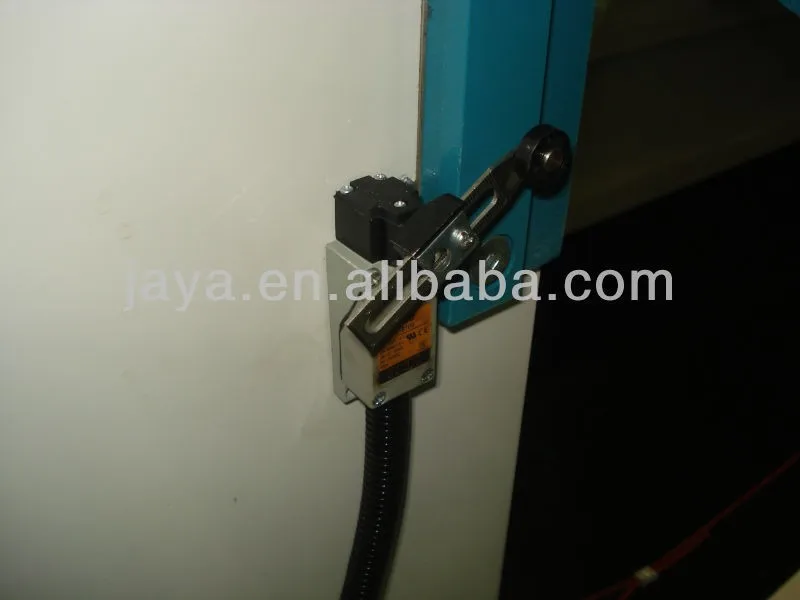

Travel Switch

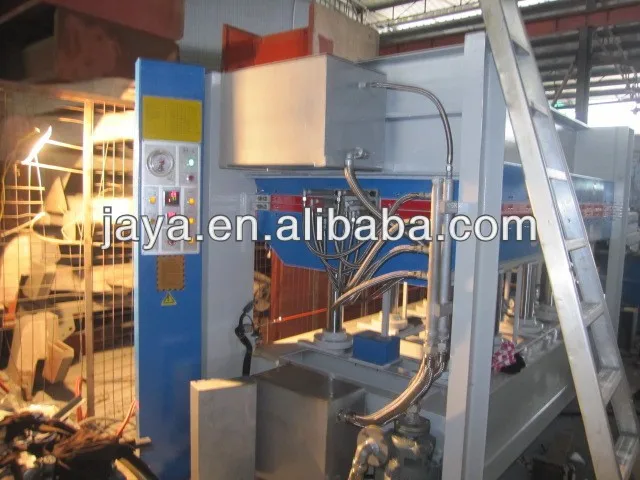

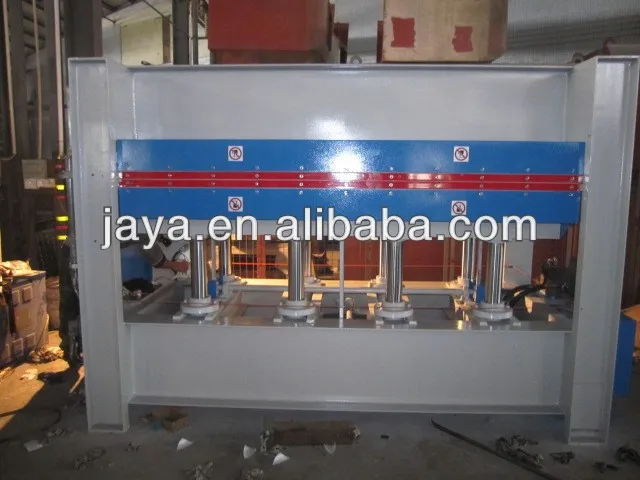

Machine ready for test:

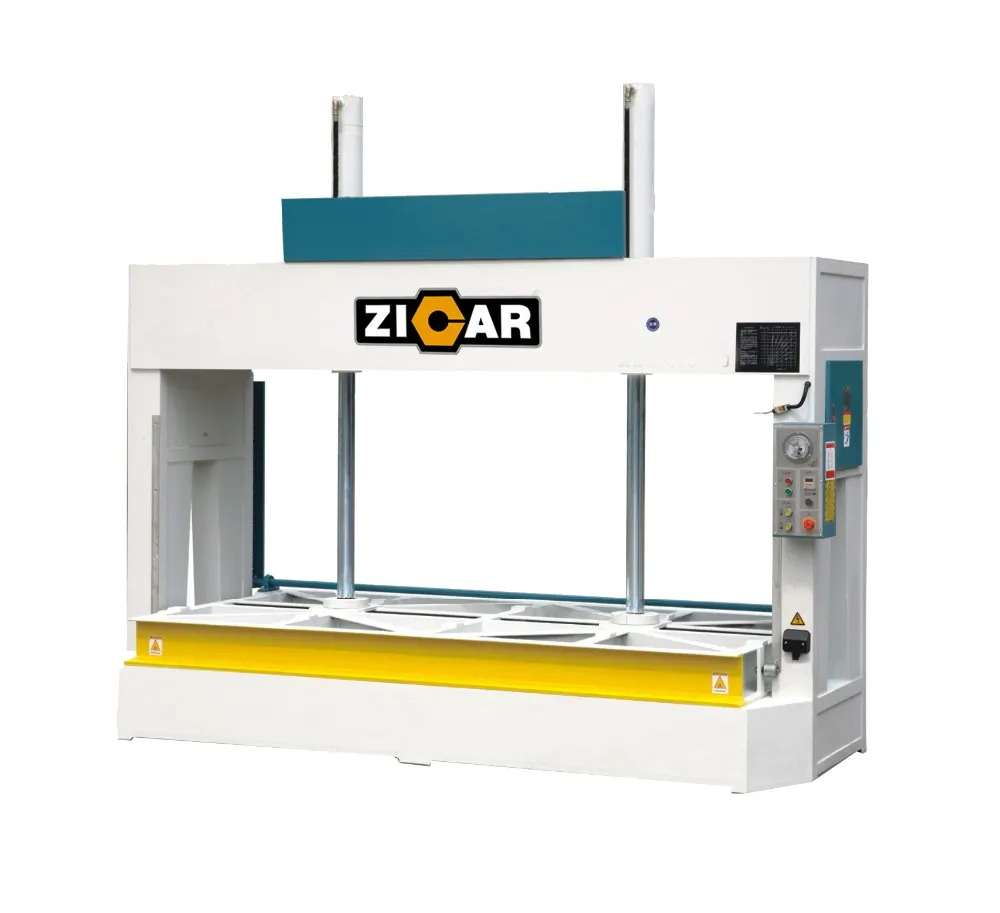

Related Products
