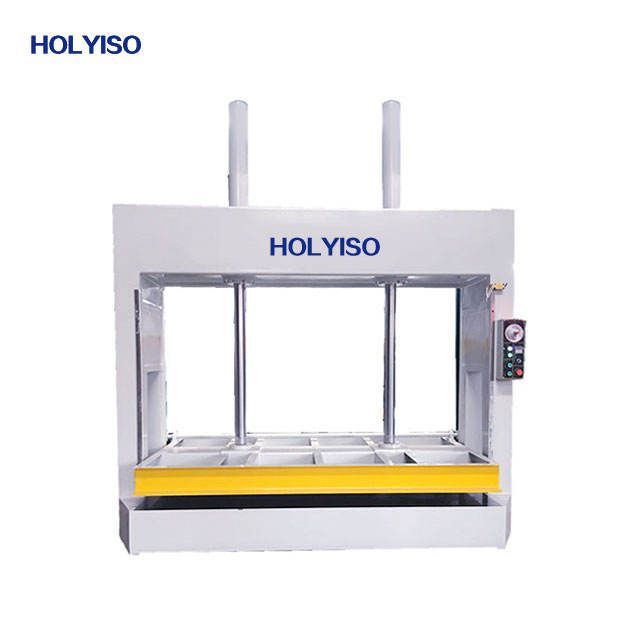

Factory Price MH3248*50T Plywood Door Production Line Hydraulic Cold Press Machine

Product details
Mechanical test report:ifHydraulic system presses:210 kg/cm²
Weight (kg):2250 kgHydraulic motor power:3.7 kW
Video outbound inspection:ifpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, by discussion
Applicable industries:carpentryport:Qingdao, Shanghai, Guangzhou or as your request
type:cold pressAfter-sales service provided:Engineers available to repair machinery overseas
Showroom location:not anyOrigin:Guangdong, China
Maximum pressure (T):50Core component warranty:1 year
Maximum total thrust:50 tons (1.6 kg/cm2)Packaging Details:Through wooden box stretch film for MH3248x50 hydraulic plywood cold press machine manufacturing
Maximum platen opening:1000mm/1300mmCylinder:110mm*2
brand:holisoVoltage:380v/60hz/3phase,380V or as your request
Dimensions (L*W*H):294*125*290cmHealth status:new
Main selling points:remote controlDimensions:294*125*290cm
Supply capacity:100 sets per monthPlaten size:1250mm*2500mm
pressure:50 tonsTable size (mm):1250*2500
Warranty:1 yearCore components:engine
Name:MH3248x50 Hydraulic Plywood Cold Press MachineMarketing Type:normal product
Product Description

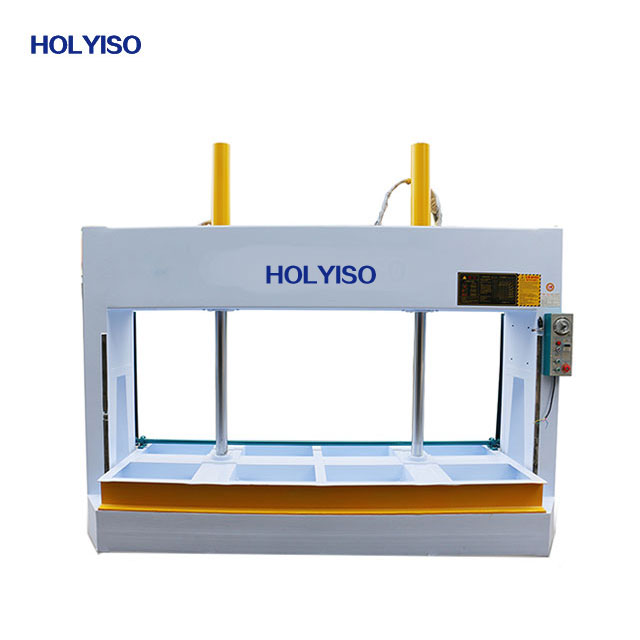

Hydraulic cold press
application:
Woodworking hydraulic cold press series models are used to press, level and shape furniture panels, wooden doors, various panels and furniture, so that the bonding between the panels can be firm.
feature:
1. The steel plates of our machines are all customized according to the pressure requirements, so as to achieve the pressure and quality assurance we promise.
2. The upper and lower pliers are finished by gantry milling to ensure absolute smoothness.
3. The hydraulic system is used to work, the lifting speed is fast, the pressure is uniform, and the work efficiency is high.
4. With overpressure automatic control circuit and oil cut-off protection, automatic lifting and automatic oil cut-off.

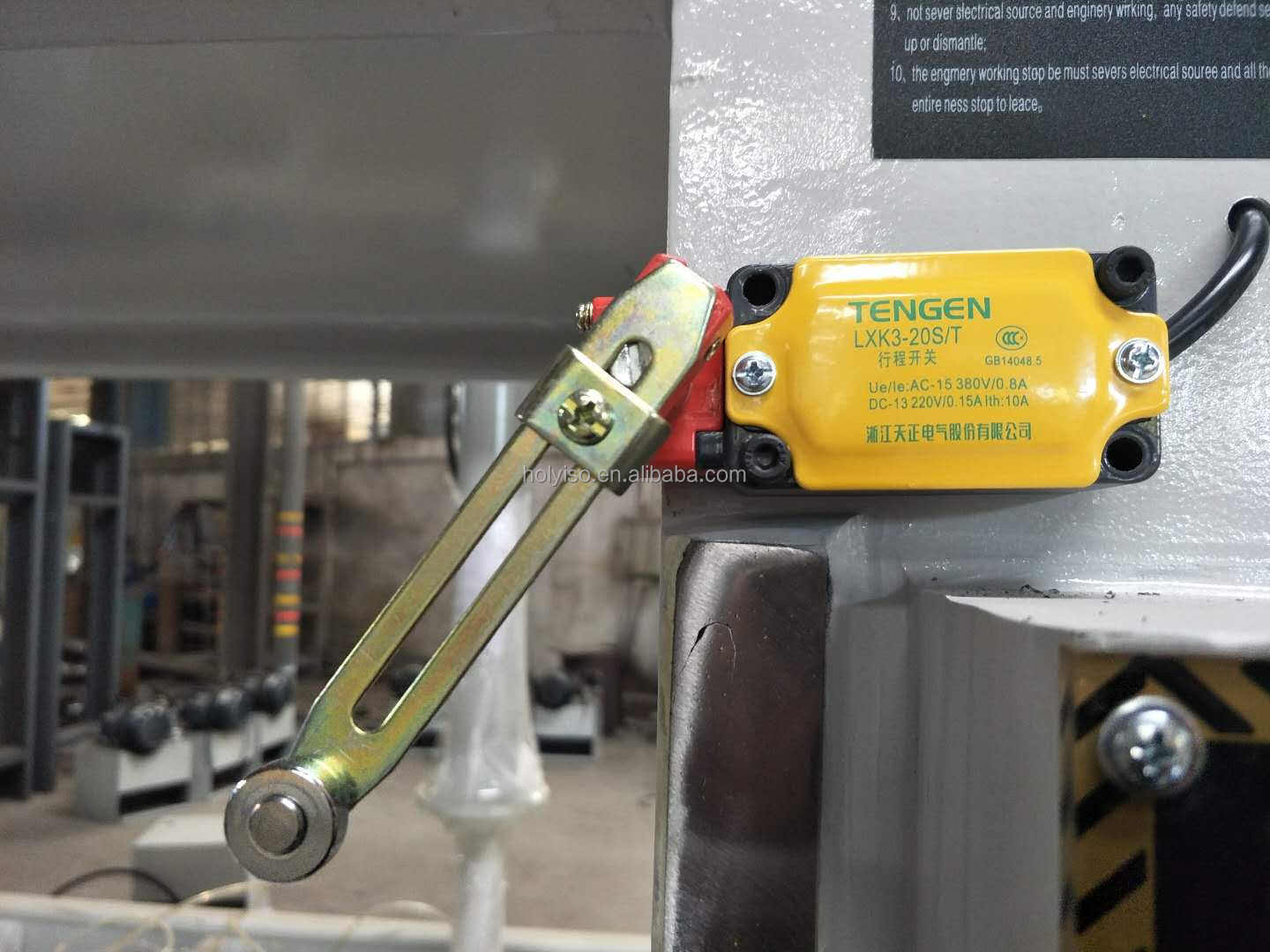

5. Fast and efficient compression, emergency safety brake, travel limit device.
6. Automatic pressurization and pressure relief function.
7. The height of the workbench is convenient for workers to operate.
Model
MH3248*50
MH3248*80
MH3248*100
platen size
1250*2500 mm
1250mm*2500mm
1250mm*2500mm
Maximum total thrust
50 tons (1.6 kg/cm²)
80 tons (2.5 kg/cm²)
100 tons (2.2 kg/cm2)
Hydraulic system press
210 kg/cm2
200 kg/cm²
200 kg/cm²
Maximum platen opening
1000mm/1300mm
1000mm/1300mm
1000mm/1300mm
cylinder
125mm*2pcs
125mm*2pcs
φ125mm*4
Hydraulic motor power
4 kW
5.5 kW
5.5 kW
Dimensions
2940*1250*2900mm
3050*1250*3500 mm
2920*1250*3400mm
net weight
2250 kg
3500 kg
3500 kg
*A variety of models are also available*
>>tell us your requirements<
detailed picture
Details 1

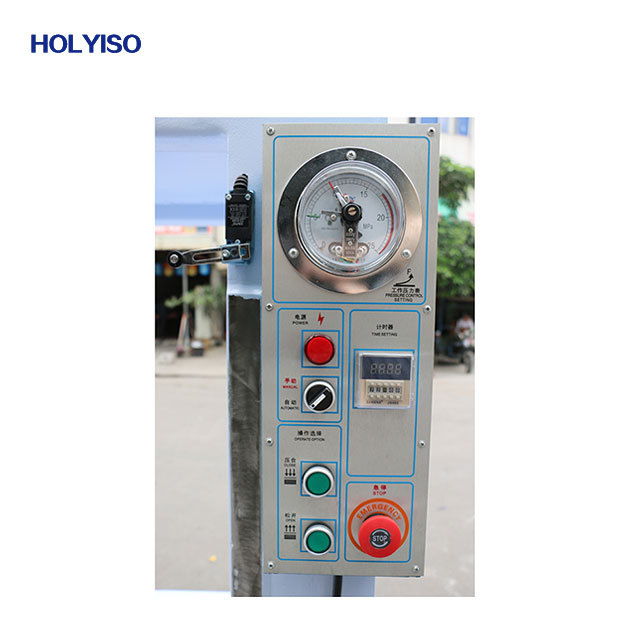

The operation of the control panel is simple and convenient.
Details 2

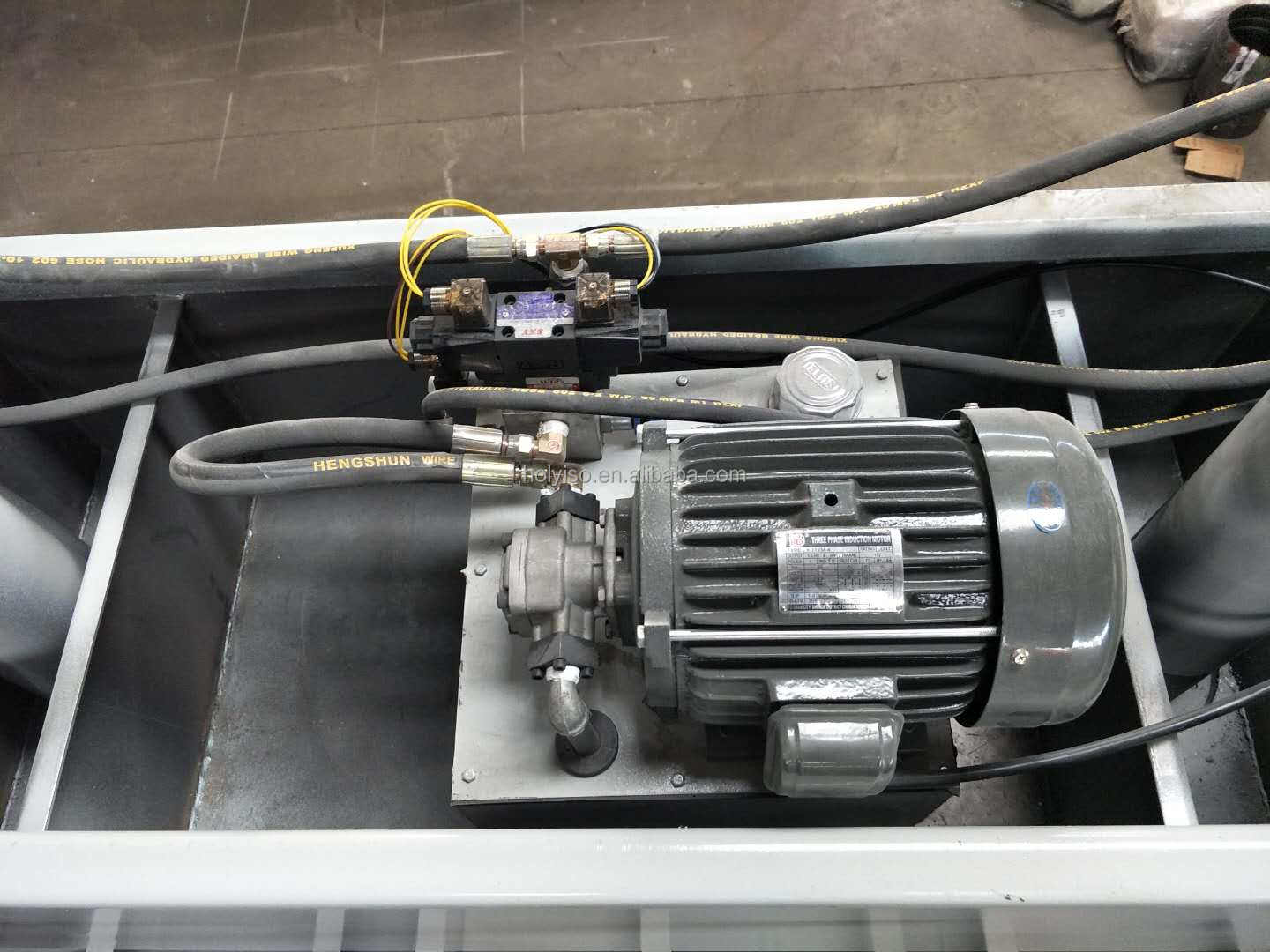

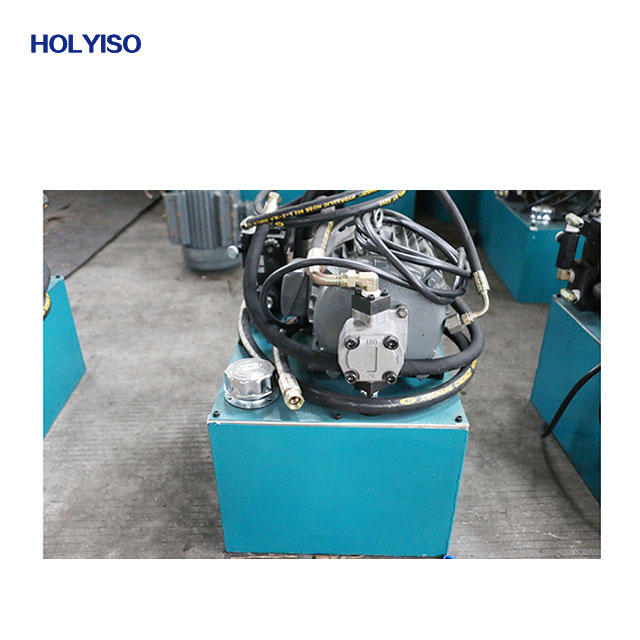

Best brand hydraulic station for reliable hydraulic pressure
Details 3

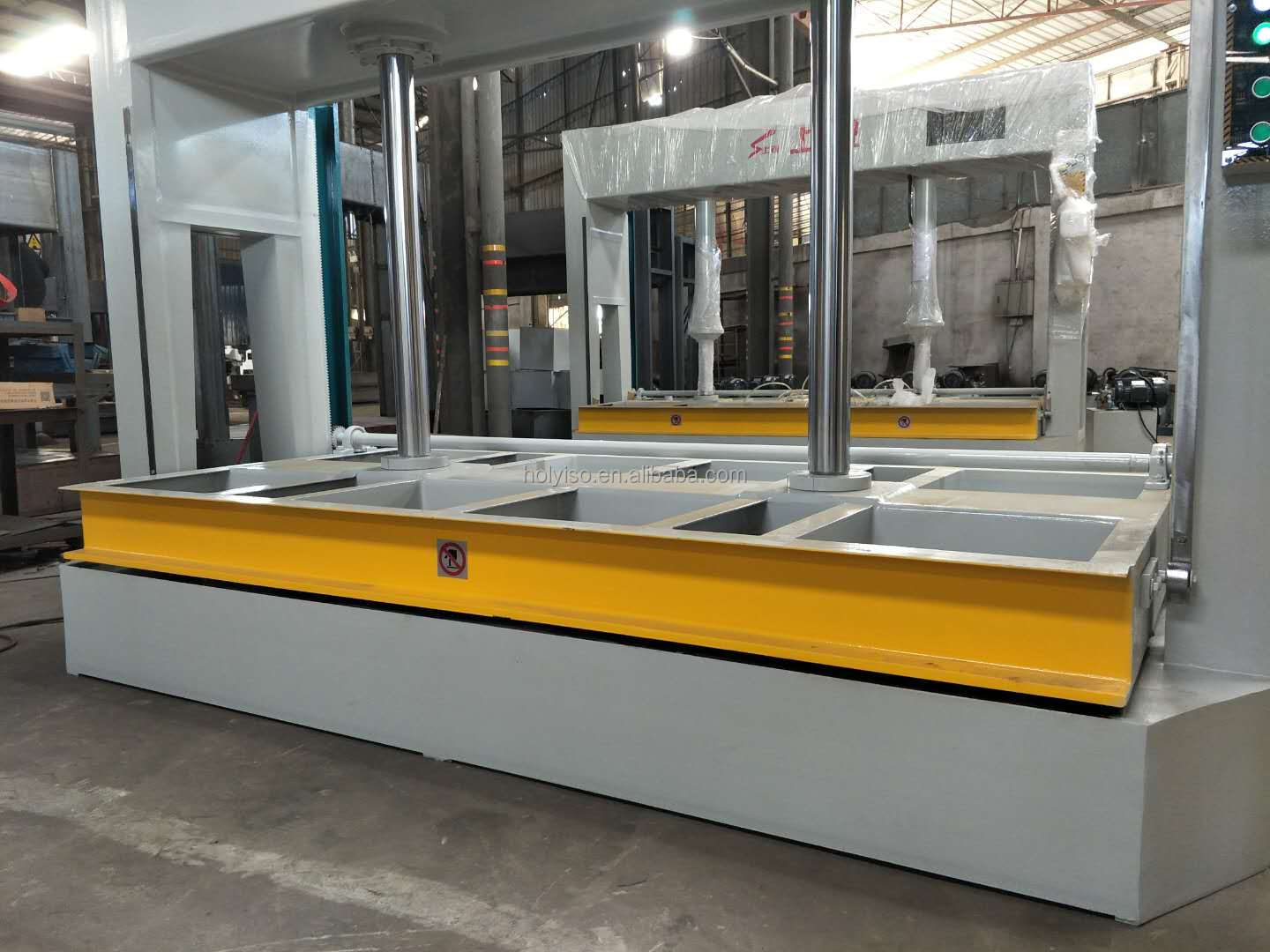

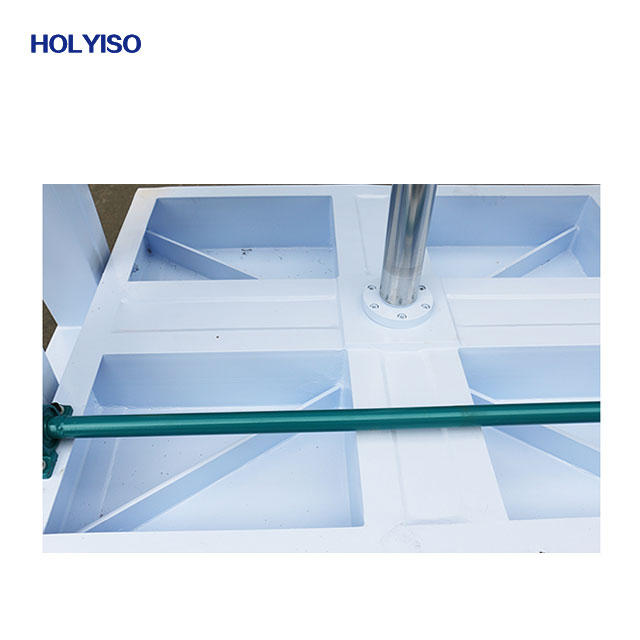

Precision platen workbench, flat and free of defects
Details 4

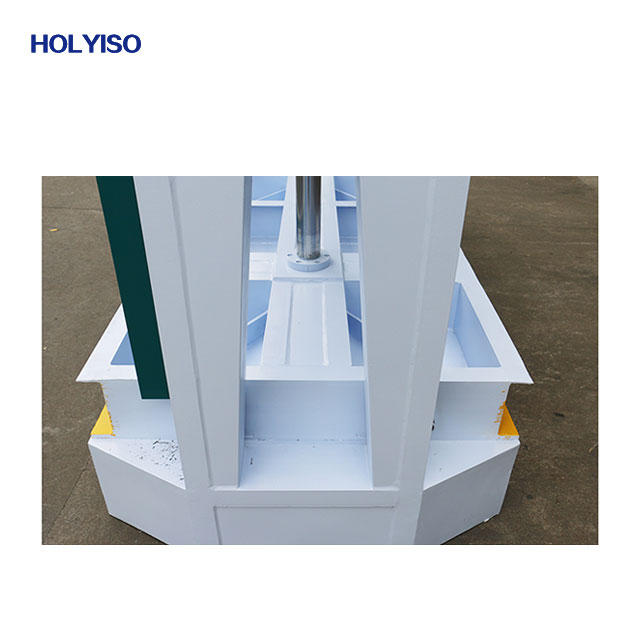

Thick steel plate, tough body, stable and durable

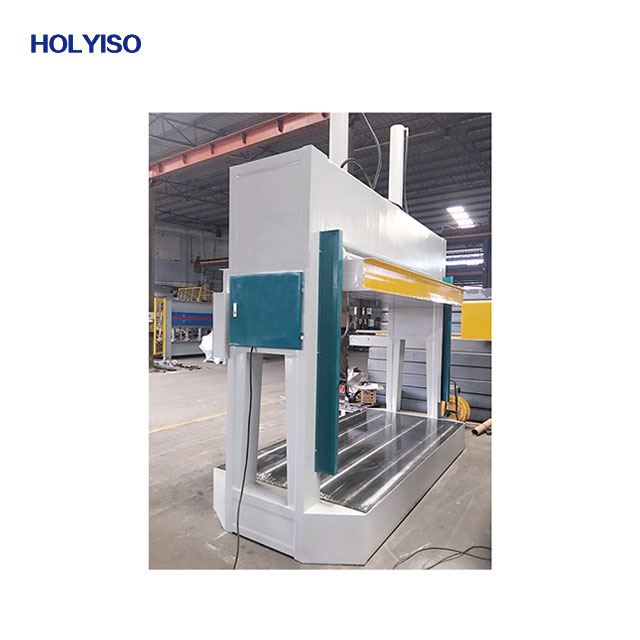

Products real shot

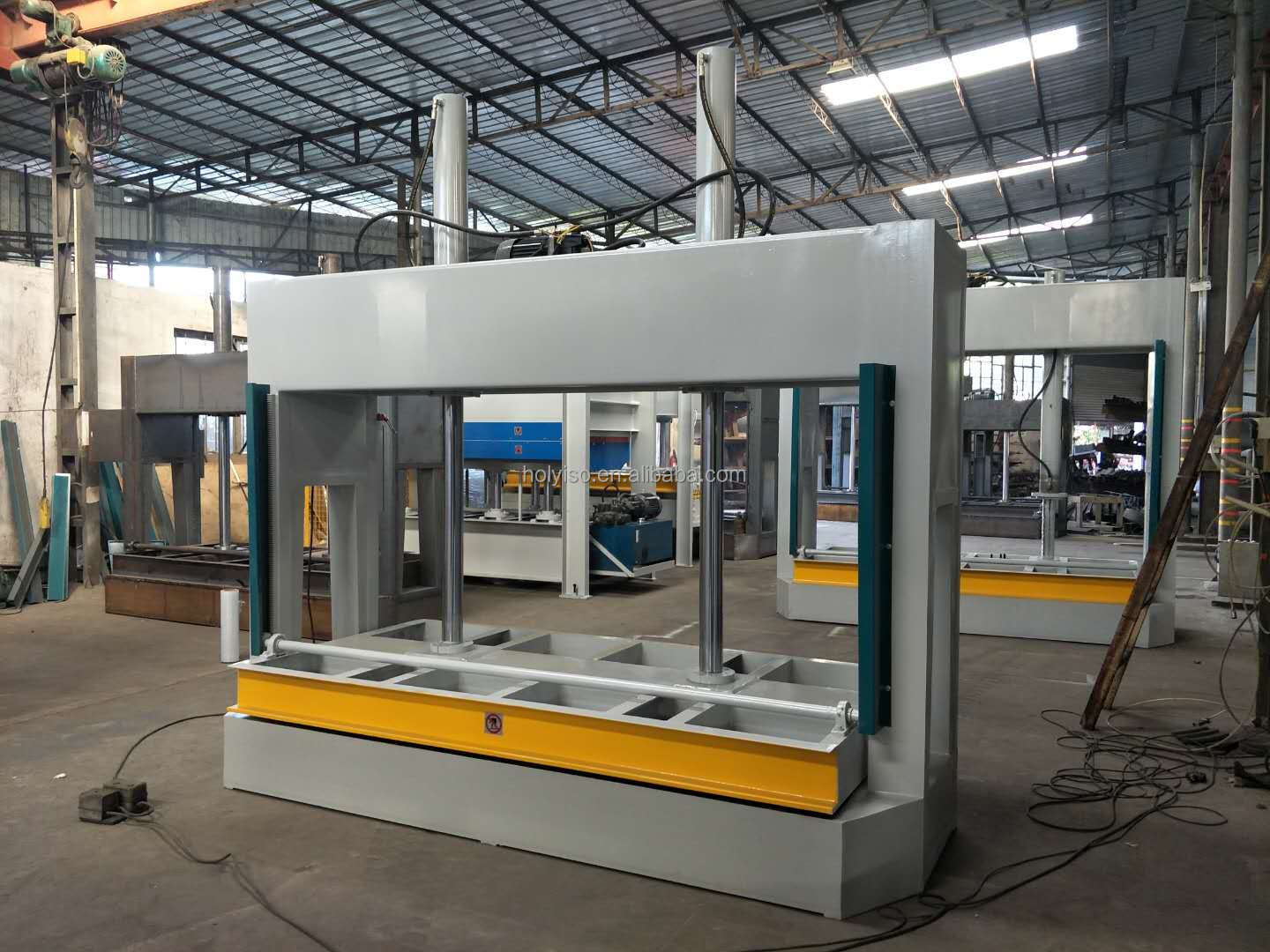

- Workshop -
