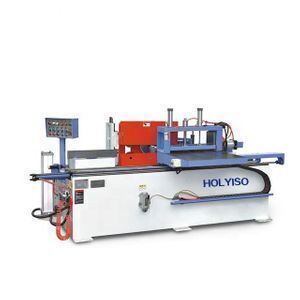

MXB3515T Wood Veneer Finger Joint Timber Machine

Supplier: Foshan Holyiso Machinery Co., Ltd.
Region: Guangdong, China
Contact: Mr Mike Lee
Price: $6000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Max working width:	600mm;	After-sales Service Provided:	Field maintenance and repair service;
Weight:	1400kg;	Max.working height:	150mm;
Power(W):	18.37kw;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,By discussing;
Supply Ability:	100 Set/Sets per Month wood finger joint machine;	Place of Origin:	Guangdong China (Mainland);
Shaper spindle speed:	7000r/min;	Voltage:	380V or your request;
Cut off saw speed:	2840r/min;	Brand Name:	HOLYISO;
Overall size:	320018001460mm;	Warranty:	12 Months;
Weight:	1400kg;	Shaper spindle diameter:	160x50mm;
Air Pressure:	as requested;	Packaging Detail:	By Stretch Film with Wooden Case for MXB3515T Wood Veneer Finger Joint Timber Machine;
Main saw blade speed:	2840r/min;	Name:	MXB3515T Wood Veneer Finger Joint Timber Machine;
After-sales Service Provided:	Engineers available to service machinery overseas;	Certification:	CE ISO;
Condition:	New;	Dimension(LWH):	320018001460mm;
Port:	Qingdao, Shanghai, Guangzhou or as Your Request;

Hot Sale Products 5

Computer Beam Saw

Four Sides Moulder/Planer

Edge Banding Machine

Precision Panel Saw

Finger Joint Machine

MXB3515T Wood Veneer Finger Joint Timber Machine

Product Description

Application:

Automatic finger joint shaper machine is mainly used for combing of medium and short wood.It is a mechanical processing equipment to improve the utilization rate of wood and the performance of wood.It is widely used in wood processing industry, especially suitable for construction company

Features:

1. Precision bearing is adopted in this machine for convenient operation.

2. Large area workbenches can effectively process and operate more wood

3. The machine is equipped with pneumatic clamping device, which can effectively reduce the error caused by manual operation and make it safer and more efficient

4.The machine adopts automatic feeding and stop function.

5.Automatic glue coating, the short wooden side of mortise and milling teeth, the long after glue application, the hydraulic pressure is tight, use this machine to connect the long square wood, the joint strength is greater than the strength of the wooden side itself.

6.The machine is equipped with motor overheat automatic protector and emergency stop switch to effectively protect the safety of operators.

7.Adopt imported PLC microcomputer control, simple operation, only one employee per set

Advantage:

1.The whole machine adopts automatic control system, which reduces human intervention and has higher efficiency

2.Equipped with dust-absorbing and dust proof system, free sawdust, long service life

3.The machine adopts an automatic system, and the accurate combing and combing wood waste little, which can save the labor cost and raw material cost for the enterprise

4.This machine has high precision, high combing efficiency and is the preferred machine for processing square wood and box board

Technical Parameter:

Max working width	600mm
Working thickness	150mm
Shaper blade size	Φ160xΦ50mm
Main saw blade size	Φ255xΦ30mm
Scoring saw balde size	Φ180xΦ19mm
Shaper spindle speed	5000rpm
Main saw blade speed	2840r/min
Scoring saw spindle speed	2840r/min
Shaper spindle power	11kw
Main saw blade power	4kw
Scoring saw power	0.75kwx2
Gluing power	0.37kw
Gluing pump power	1.5kw
Total power	18.37kw
Pressure of air system	0.6-0.8MPa
Overall dimensions(LxWxH)	320018001460mm
Weight	1400kg

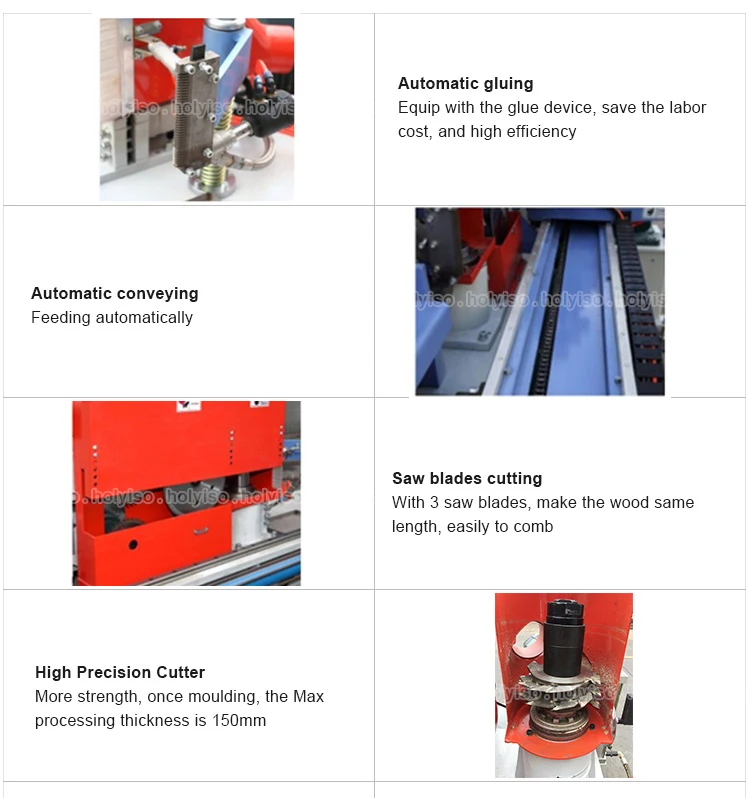

Detailed Images

Finished Products

Packing & Service

1.Delivery:

We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.

2.Package:

We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.

3.Guarantee:

The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.

4.Technical support:

Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
