Shepa woodworking automatic finger joint forming line, SHMB3515E

Product details
Main selling points:easy to operatePackaging Details:Plywood enclosure or plastic film
payment terms:L/C, Western Union, D/P, T/TMarketing Type:normal product
Warranty:1 yearPower (kW):43KW
brand:shootingCore component warranty:1 year
Video shipment inspection:ifair pressure:0.6-0.8MPa
Spindle speed:6300 rpmMaximum processing thickness:160mm
Supply capacity:100 pieces per monthScoring saw blade motor speed:2900 rpm
Dimensions (L*W*H):2400*1600*1500mm 2800*1600*1500mmApplicable industries:Woodworking furniture manufacturing
Health status:newWeight (kg):2500 kg
Showroom location:not anyMechanical test report:if
Core components:engineOrigin:Shandong China
Energy source:electricMaximum processing width:610mm
port:Qingdao PortVoltage:380V
Maximum processing length:800mm
Product Description

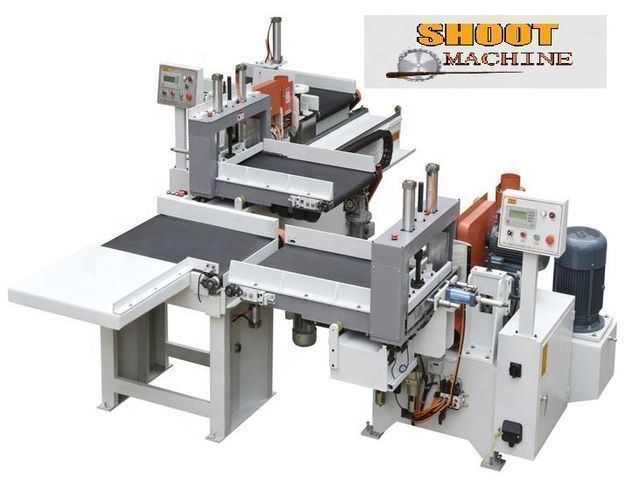

Automatic finger joint forming line
feature
The line includes 2 machines and other accessories working feed table. (1# and 2#), #2 finger joint with gluing function
Model SHMB3515E
Maximum processing width 610mm
Maximum Processing Thickness 160mm
Maximum processing length 800mm
Spindle speed 6300 rpm
Scoring saw blade motor speed 2900 rpm
Saw speed 2900 rpm
Jointing knife diameter 160mm
Spindle diameter 50mm
Spindle motor power 15kw*2
Saw blade motor power 4kw*2
Conveyor belt motor power 0.55kw*2
Servo motor power 0.75kw*2
Air consumption 0.6-0.8Mpa
Dimensions 2400x1600x1500mm 2800x1600x1500mm
total power 43kw
It has one set (21pcs) of knives and one set (7pcs) of circular saw with machine
Packaging and Shipping



Packing: plywood box or plastic film

Shipping: Qingdao Port

Delivery time: 30 days after payment received
