MX3515 wood finger jointing machine

Supplier: Shanghai Win Star Woodworking Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms cerol liu
Price: $2800.00 / 1 - 1 sets
$2500.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Mechanical test report:	if	Core component warranty:	1 year
Model:	MX3515	Video shipment inspection:	if
port:	Shanghai Port/Qingdao Port/Guangzhou Port	Packaging Details:	Each set of finger joint formers for sale will be packed in a wooden case.
weight:	650 kg	Weight (kg):	650 kg
Name:	Finger Joint Shaper	State of health:	new
brand:	Silver Star	Dimensions (LWH):	220015001700mm
Energy source:	hydraulic	Supply capacity:	100 knuckle shapers per month
air pressure:	0.6mpa	Applicable industries:	furniture workshop
Marketing Type:	New Products 2022	Maximum working width:	510mm
Voltage:	220V/380V	strength:	9.7kw
Spindle speed:	6500 rpm	Power (kW):	9.7
Blade diameter:	305mm	Dimensions:	220015001700mm
Core components:	motor, water pump	Spindle diameter:	35/40/50mm
Main selling points:	long lasting	Maximum working thickness:	120mm
Warranty:	1 year	Showroom location:	Vietnam, Indonesia, Malaysia
payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Finger Joint Cutting Machine	place of origin; place of origin:	China Shanghai

MX3515 woodworking wood finger joint cutting machine

Product Description

model	MX3515
working width	510mm
working thickness	120mm
Spindle diameter	35/40/50mm
blade diameter	305mm
Spindle speed	6500 rpm
total power	9.7kw
weight	650 kg
Dimensions	220015001700mm

feature

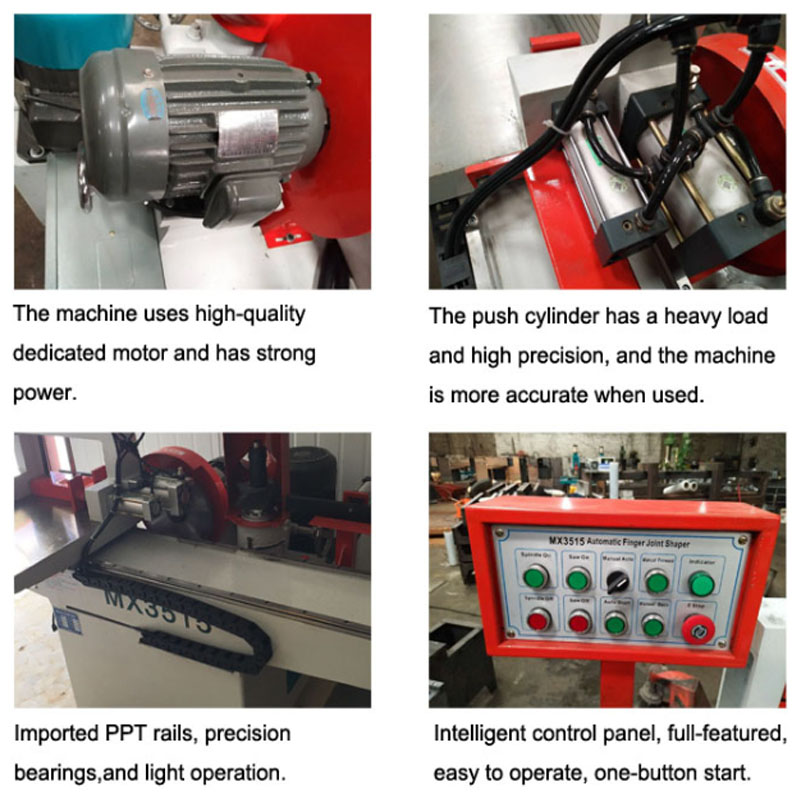

1. Intelligent control panel, complete functions, simple operation, one-button start.

2. The pushing cylinder has a heavy load and high precision, which makes the machine more accurate when used.

3. This machine adopts high-quality special motor with strong power.

4. Imported PPT guide rails, precision bearings, easy to operate.

Detailed description

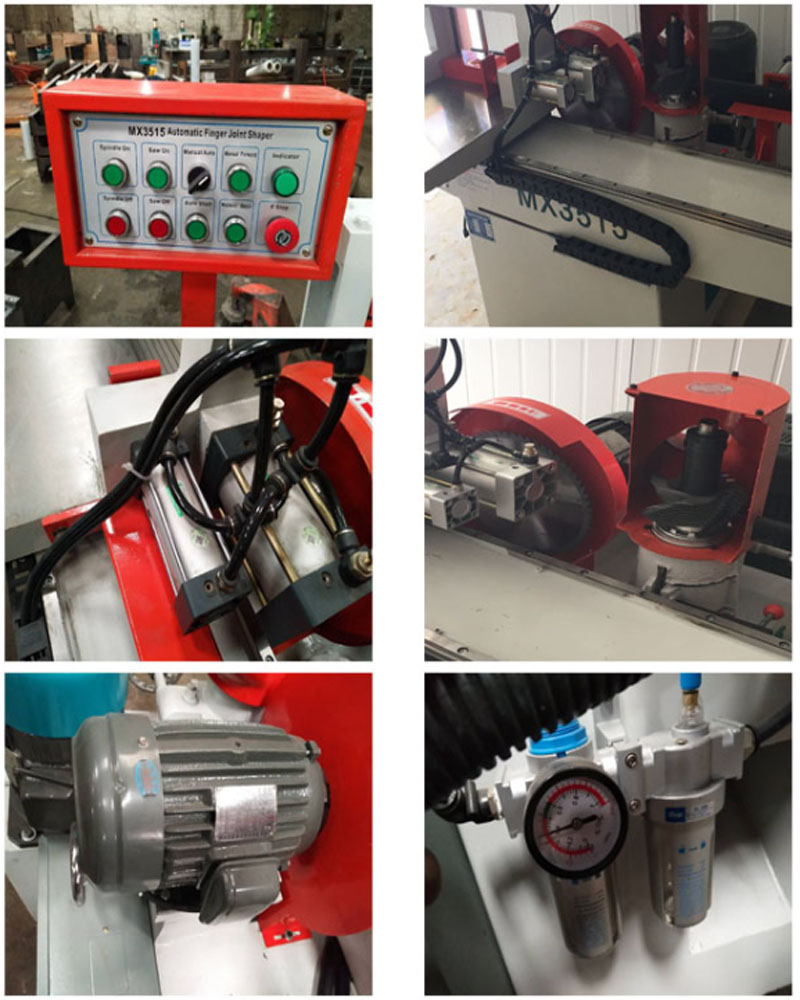

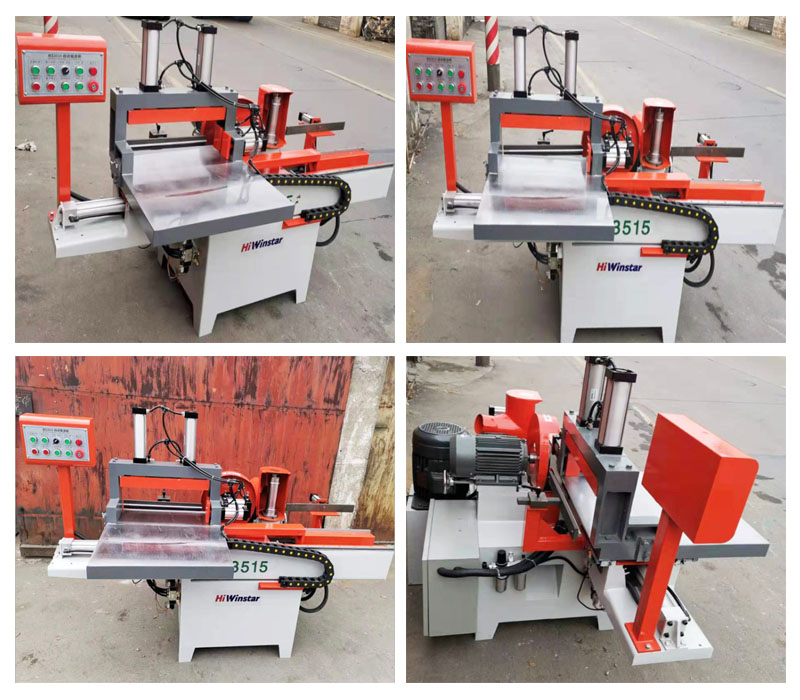

detailed picture

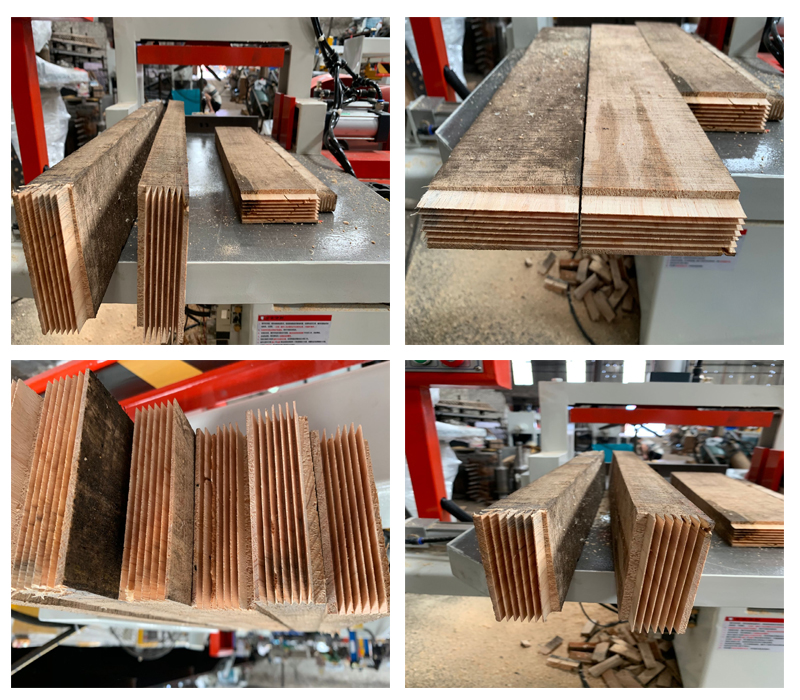

application

Finger joint cutting machine is a kind of mechanical processing equipment to improve wood utilization and wood performance, and is widely used in wood processing industry.
