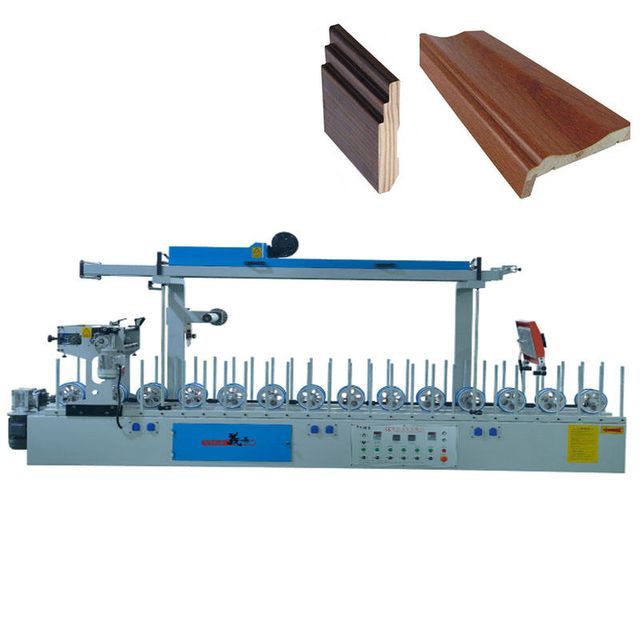

Woodworking wooden window door frame furniture MDF PVC veneer profile wrapping machine

Supplier: Shanghai Win Star Woodworking Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms cerol liu
Price: $4980.00 / 1 - 1 sets
$4180.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Maximum packaging width:	300 mm	Name:	Profile wrapping machine
Key selling points:	easy to use	Applicable industries:	Furniture workshop
Origin:	China Shanghai	brand:	Haiyingxing
Minimum working length:	600 mm	Voltage:	380 volts 50 Hz
application:	Wrapped wood veneer	Exhibition Hall Location:	Vietnam, Indonesia, Malaysia
strength:	11.5 kW	Packaging Details:	Each set of profile packaging machine is packed in wooden box
color:	Required	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, Hot Glue Profile Packaging Machine
Warranty:	12 months	Model:	BXW350C
Core components:	PLC, motor	Total Power:	11.5 kW
weight:	1350 kg	Supply capacity:	100 profile packaging machines per month
Mechanical test report:	if	Weight (kg):	1350
Feeding speed:	0-25 m/min	Video factory inspection:	if
Dimensions (LWH):	59007502100mm	Health status:	new
total measurement:	59007502100mm	Marketing Type:	New Products for 2021
port:	Shanghai Port/Qingdao Port/Guangzhou Port	Core component warranty:	1 year

Woodworking wooden window door frame furniture MDF PVC veneer profile wrapping machine

Product Description

model	BXW350C
Total Power	11.5 kW
Packaging speed	0-25 m/min
Maximum packaging width	300 mm
Minimum packaging length	600 mm
weight	1350 kg
Dimensions	59007502100mm

feature

The profile wrapping machine has the functions of automatic dust removal, gluing, profile heating, automatic scraping, and protective film application. The machine adopts frequency conversion speed regulation and worm gear transmission.

1. The surface, sides and bottom are completed at one time.

2. Adopt touch screen, programmable controller PLC and frequency converter control, easy to operate and high precision.

The 3.45# steel solid base, connectors and columns are durable and the error is less than 0.02mm.

4. The special unit system ensures that there will be no wrinkling, unstable pressure and other problems during the line coating process.

5. The rubber roller is made of silicone rubber wheel, which has the characteristics of high strength, good elasticity and not easy to separate from the metal surface.

6. The equipment is equipped with two sets of feeding shafts for alternately feeding PVC decorative materials to improve work efficiency.

7. Adopt precision metering pump, the feeding speed can be adjusted according to user needs.

8. It can be equipped with a substrate cleaner to automatically clean the substrate and put it into the machine.

detailed picture

application

This process is widely used in some developed countries in Europe and America. It is a new direction for the development of modern building materials. The products will not crack due to temperature changes and high temperatures. Moreover, the glue is very environmentally friendly and does not contain toxic solvents, making interior decoration materials safer. Due to the anti-aging, high bonding strength, moisture resistance and irreversibility of PUR glue, the finished products made by this equipment can be used in various conventional harsh environments.
