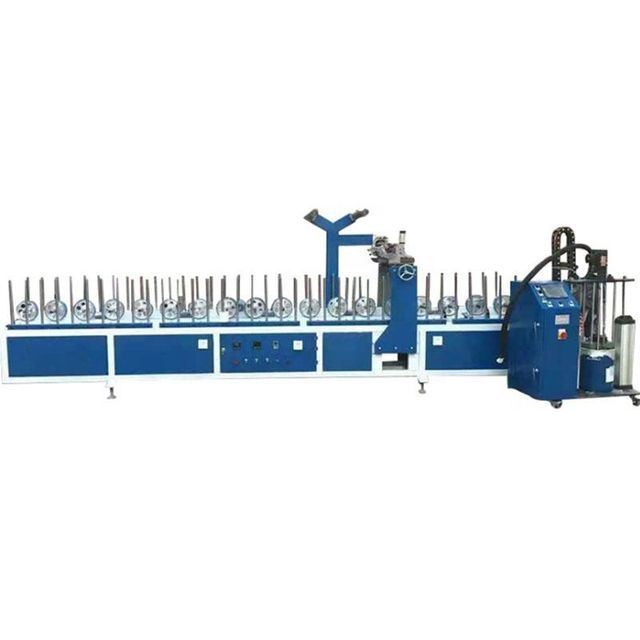

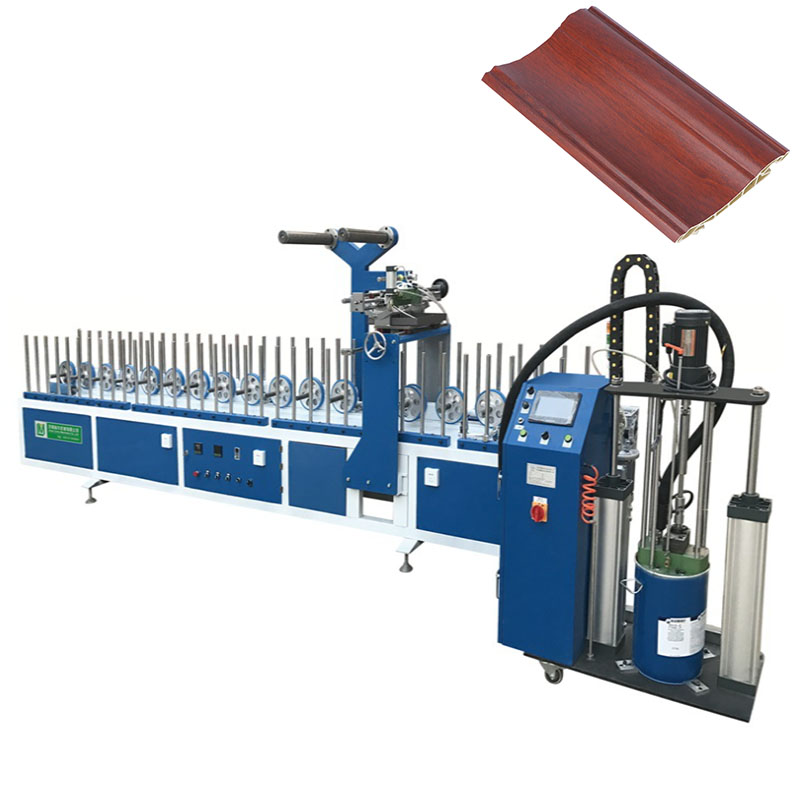

PUR Hot Melt Adhesive PVC and Veneer Laminated Profile Winding Machine

Supplier: Shanghai Win Star Woodworking Machinery Co., Ltd.
Region: Shanghai, China
Contact: Ms cerol liu
Price: $6000.00 / 1 - 1 sets
$5000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Origin:	China Shanghai	Health status:	new
Core component warranty:	1 year	Video outbound inspection:	if
Applicable industries:	furniture workshop	total measurement:	59007502100mm
Main selling points:	easy to operate	Model:	Polyurethane 350C
Dimensions (LWH):	59007502100mm	weight:	1350 kg
Feed rate:	0-25m/min	application:	wrapped wood veneer
Total power:	11.5 kW	Marketing Type:	New Products for 2022
strength:	11.5 kW	color:	necessary
port:	Shanghai Port	Minimum working length:	600 mm
maximum. Winding width:	300 mm	Showroom location:	Vietnam, Indonesia, Malaysia
brand:	Haiyinxing	Name:	PUR profile winding machine
Packaging Details:	Each set of profile winding machine is packed in wooden box	Core components:	Programmable controller, motor
Mechanical test report:	if	payment terms:	L/C, Western Union, D/P, D/A, T/T, MoneyGram, MDF Profile Packing Machine
Voltage:	380V 50Hz	Warranty:	12 months
Supply capacity:	100 profile winding machines per month	Weight (kg):	1350

PUR Hot Melt Adhesive PVC and Veneer Laminated Profile Winding Machine

Product Description

model	Polyurethane 350C
total power	11.5 kW
winding speed	0-25m/min
winding width	300 mm
Minimum winding length	600mm
weight	1350 kg
Dimensions	59007502100mm

feature

The profile winding machine adopts PUR hot melt polyurethane reactive glue and automatic scraper system. The machine has the functions of automatic dust removal, gluing, profile heating, automatic squeegeeing, and sticking protective film. The machine adopts frequency conversion speed regulation and worm gear transmission.

1. Complete the surface, side and bottom at one time.

2. It is controlled by touch screen, programmable controller PLC and frequency converter, which is easy to operate and has high precision.

3. 45# steel solid base, connectors, columns, strong and durable, the error is less than 0.02mm.

4. The special unit system can ensure the problems of wrinkling and unstable pressure during the line coating process.

5. The rubber roller adopts silicon rubber wheel, which has the characteristics of high strength, good elasticity, and is not easy to separate from the metal surface.

6. The equipment is equipped with two sets of feeding shafts, which are used to alternate PVC decorative materials and improve work efficiency.

7. Equipped with a precision metering pump, the feeding speed can be adjusted according to user needs.

8. It can be equipped with a substrate cleaning machine, which automatically cleans the substrate and puts it into the machine.

detailed picture

application

This process is widely used in some developed countries in Europe and America. It is a new direction for the development of modern building materials. The product will not be opened due to temperature changes, high temperature. Moreover, the glue is very environmentally friendly, does not contain toxic solvents, and the interior decoration materials are safer. Due to the anti-aging, high bonding strength, moisture-proof, irreversible and other factors of PUR glue, the finished product of this equipment can be used in various conventional harsh environments.
