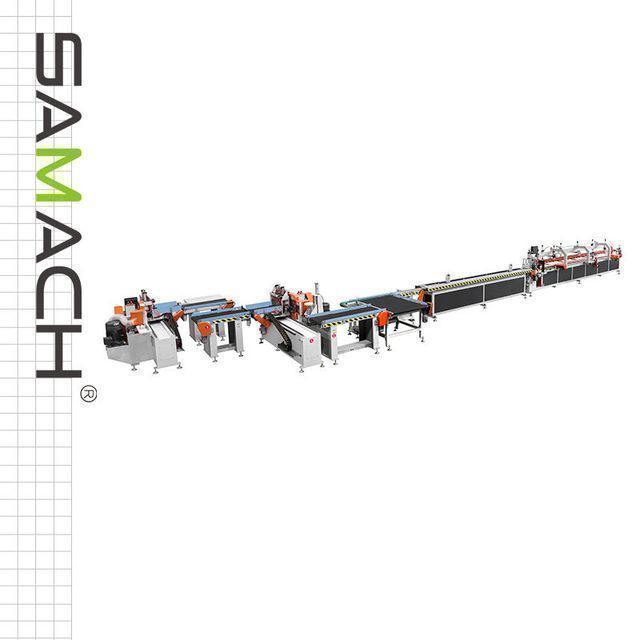

SAMACH high-efficiency finger joint automatic finger joint production line

Click here to contact
Product details
Main saw blade size:355mmSeam Width:30-150mm
Weight (kg):12000 kgSaw blade speed:3700 rpm
Rated power of saw motor:3 kWVoltage:OEM production
Mechanical test report:ifSupply capacity:80 sets per month
Package preview:maximum. Engagement force:7800 kg
payment terms:L/C, T/Tplace of origin; place of origin:Guangdong, China
maximum. Feed rate:30m/minVideo shipment inspection:if
Core component warranty:1 yearShowroom location:Vietnam, Brazil, Peru, Russia, South Korea
working pressure:0.5-0.8MpaWarranty:1 year
Connector length:2000-6000mmMarketing Type:2019 Hot Products
Main selling points:high productivityport:Shenzhen
Core components:Engines, Bearings, MotorsSeam Thickness:18-80mm
brand:Samahair pressure:0.8Mpa
State of health:newOil pump rated power:2.2kw
Energy source:electricPackaging Details:Flexible and plywood packaging
Applicable industries:Building materials store, machine repair shop, manufacturing plant, retail, construction, furniture, woodworking machinery
Product Description

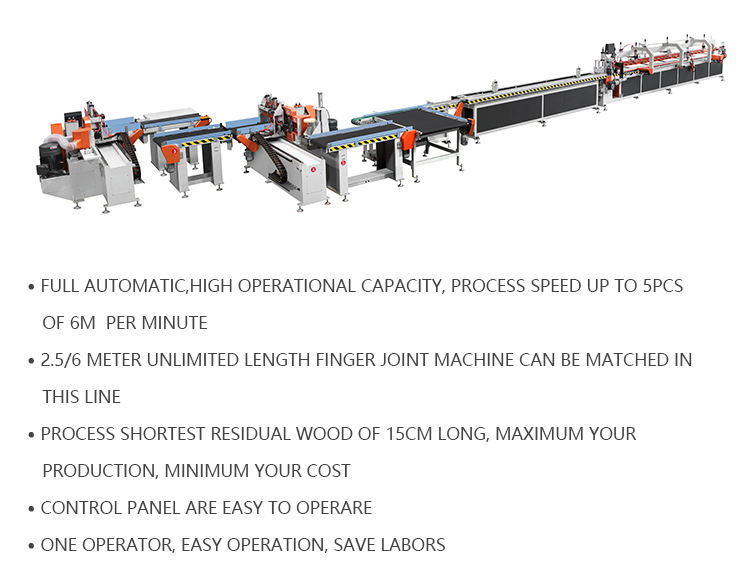

SAMACH high-efficiency finger joint automatic finger joint wire grinding machine
Product Details
scope
Finger joint former
Finger joint former (with glue)
Model
RSJ3515A
RSJ3515Ta
working desk size
850*600mm
850*600mm
maximum. working size
850*80*150mm
850*80*150mm
minute working size
150*20*30mm
200*30*20mm
Shaft diameter
Φ70mm
Φ70mm
Shaping blade diameter
Φ160mm
Φ160mm
Main saw blade size
Φ255mm
Φ255mm
Main saw shaft speed
2840 rpm
2840 rpm
Shaping spindle speed
6000 rpm
6000 rpm
working pressure
0.5-0.8MPa
0.5-0.8MPa
total power
16.12kw
18.74kw
Finger joint machine
Model
RZJ1560A
maximum. Inoculation time
2000-6250mm
maximum. Inoculation width
30-155mm
maximum. Inoculation thickness
18-80mm (15-100mm optional)
Saw blade speed
3700 rpm
Blade diameter
405mm
Rated power of saw motor
3 kW
Oil pump rated power
2.2kw
working pressure
0.5-0.8Mpa
maximum. Engagement force
7800 kg
Installed power
7.5kw
Dimensions
7650*1000*1420mm
Feed Belt Conveyor
Intermediate Belt Conveyor
Output Belt Conveyor
Model
MF756A
MF756B
MF756C
table length
1150mm
1150mm
1150mm
Table width
600mm
600mm
600mm
Motor rated power
0.375kw
0.375kw
0.375kw
work pressure
0.5-0.8Mpa
0.5-0.8Mpa
0.5-0.8Mpa
outer diameter
1180*1330*920mm
1180*725*920mm
1180*725*920mm
Horizontal Belt Conveyor
disruptor
Model
MF746
MF762A
Table width
150mm
150mm
Motor rated power
1.5 kW
1.5 kW
work pressure
0.6Mpa
0.6Mpa
outer diameter
1800*1200*1000mm
2600*650*1200mm
5m chain belt conveyor
Model
MF765
table length
5000mm
Working thickness
18-80mm
Table width
25-150mm
Motor Power
1.5kw*2pcs
Reducer power
1.5kw*2pcs
work pressure
0.6Mpa
outer diameter
5200*650*1200mm
