200 liter electric heating mixing tank with agitator

Supplier: Wenzhou Flowtam Light Industry Machinery Co., Ltd.
Region: Zhejiang, China
Contact: Mr Zhang Deli
Price: $500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Warranty of core components:	1 Year;	Application:	Medicine Processing,Chemicals Processing,Food Processing,Liquid with Suspended Solids;
After-sales Service Provided:	Overseas service center available;	Machinery Test Report:	Provided;
Additional Capabilities:	Milling;	Condition:	New;
Voltage:	110-600V;	Max. Loading Capacity:	50-50000L;
Supply Ability:	100 Set/Sets per Month electric heating mixing tank;	Brand Name:	Flowtam;
Packaging Detail:	ply wooden case;	Key Selling Points:	Easy to Operate;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Construction works ,Energy & Mining,Food & Beverage Shops;	Place of Origin:	Zhejiang China;
Layer:	single/double jacket/three jacket;	name:	electric heating mixing tank;
Material:	stainless steel 304 /316;	Weight (KG):	500 KG;
Port:	NINGBO;	Power (kW):	7.5 kW;
Max. Loading Volume (L):	20000 L;	speed:	0-2800rpm;
Range of Spindle Speed(r.p.m):	0 - 2800 r.p.m;	Warranty:	2 years;
Local Service Location:	None;	Dimension(LWH):	according to the type;
Marketing Type:	Ordinary Product;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Certification:	CE,ISO9001:2008;	Volume:	50-20000L;
Showroom Location:	None;	Mixer Type:	Agitator;
Product Type:	Cosmetic;	Barrel Volume (L):	20000;
Core Components:	Motor,Gear,Bearing;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Video outgoing-inspection:	Provided;

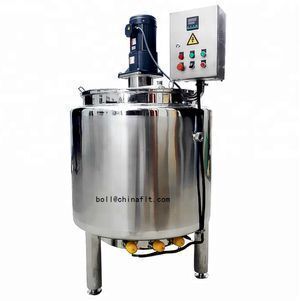

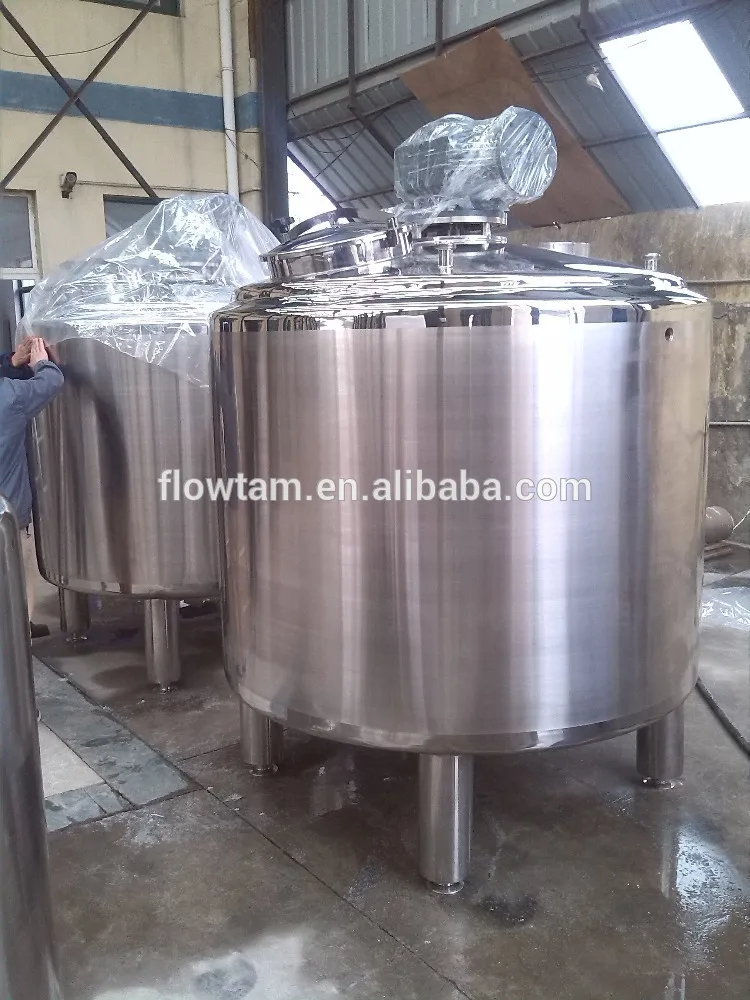

Electric heating Mixing Tank

Product Name:electric heating mixing tank
Brand: Flowtam
Material :304(L) 316(L)
Finish:Mirror or Matt Polish; Ra<0.4um
Certification: CE ISO9001:2000.

Used as mixing tank, blending tank etc.
Ideal in fields such as foods, dairy products, fruit juice beverages, pharmacy, chemical industry and biological engineering etc.

Structure characteristics:
Made of single-layer stainless steel structure.
Materials are all sanitary stainless steel.
Humanized structure design and easy to operate.Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

Configuration of tank:
Quick open manhole.
Various types of CIP cleaners.
Fly and insect resistant sanitary breathing cover.
Adjustable triangular bracket.
Dismountable materials input pipe assembly
Thermometer (According to customer requirements ).
Ladder (According to customer requirements).
Paddle blender.
Liquid level meter and lever controller (According to customer requirements).
Eddy-proof board.
Customized and Non-standard products also welcomed.

Work Volume	Dimension of tank	Total height	Insulated layer	Diameter of inlet&outlet
(L)	(mmxmm)	(mm)	(mm)	(mm)
500	840*1000	2300	60	38
600	920*1000	2400	60	38
700	990*1000	2400	60	38
800	950*1220	2550	60	38
900	1010*1220	2700	60	38
1000	1060*1220	2700	60	51
2000	1340*1500	2750	60	51
3000	1410*2000	3500	60	51
5000	1910*2000	3850	60	51
10000	2300*2440	4500	60	51
15000	2530*3000	5200	60	51
20000	2640*3660	5800	60	51
