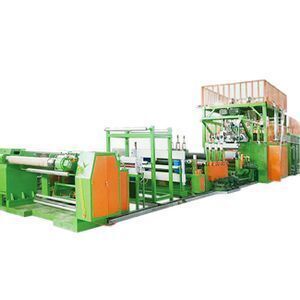

PE paper laminating machine a3 a4 paper laminator

Supplier: Nanjing Gs-Mach Extrusion Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Ms Nancy Li
Price: $150000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local Service Location:	None;	Package Preview:	;
Weight:	20 tons;	Core Components:	Bearing,Gearbox;
Applicable Industries:	Manufacturing Plant;	Key Selling Points:	Easy to Operate;
Voltage:	Customized;	After-sales Service Provided:	Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support;
Application:	Paper, cardboard;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Port:	Nanjing port;	Packaging Detail:	PE paper lamination machine roll to roll for polyester coating production line is packed by wooden case.;
Certification:	CE ISO9001;	Dimension(LWH):	17.5M5.5M4.6M;
Condition:	New;	Payment Terms:	L/C,T/T,Western Union;
Warranty of core components:	1 Year;	Machinery Test Report:	Provided;
Brand Name:	GSmach;	Marketing Type:	Hot Product 2019;
Place of Origin:	Jiangsu China;	Power:	180000;
Showroom Location:	None;	Wide usage:	Woven PP fabric;
Warranty:	1 Year;	Video outgoing-inspection:	Provided;
Foil:	Laminator;	Supply Ability:	10 Set/Sets per Year;

paper laminating machine Kraft paper automatic laminator

This type of machine is suitable for production: Kraft Paper series and other industrial living materials, material is widely used in printing and packaging factory, carton factory, garment factory, food packaging and other packaging paper.

The main process process

Material rewinding→ Corona→ Traction→roller coated→Traction→ Drying→Deflection→Flip→Spray→Drying→ Edge→Four cylinder thermal shaping→ Winding

The characteristics of the machine

1, The rewinding volume using the upper and lower cutting mode, can adapt to the requirements of different process coating level.

2, Speed 150m/min, change the winding non-stop machine, do not slow down, tension stability.

3, The bottom coating using three-roller transfer coating, coating amount by precision ball screw quasi-adjustment, accurate and reliable. Can be adapted to a relatively wide range of coating changes.

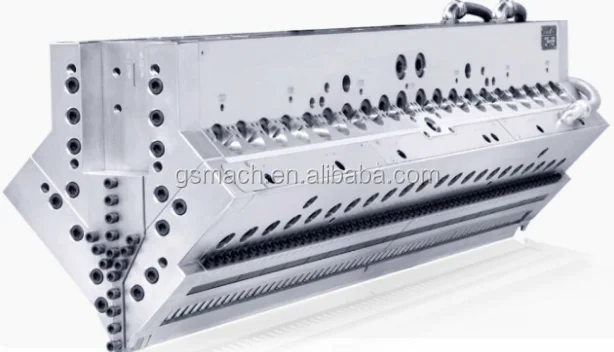

4, surface coating using extrusion spraying coating head, uniform coating, clean and clean coating, coating quality is stable.

5, the oven adopts the step mussel design structure, the installation is convenient, the paper is on the transition roller. The package angle does not change due to installation errors and the structure is stable. Special septum of the inner gall. Thermal design, low energy consumption.

Machine Details

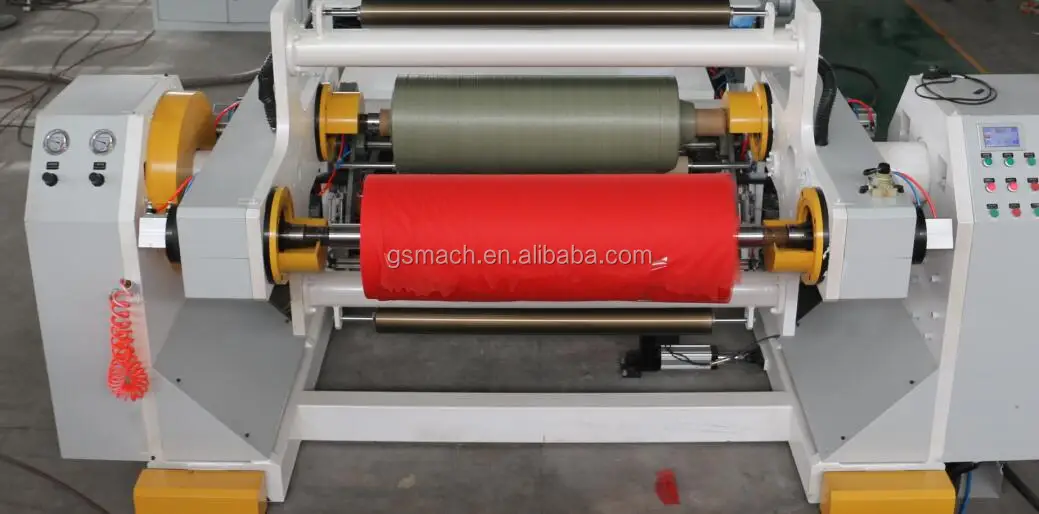

Unwinding system
