Power: | custom made; | After-sales Service Provided: | Online support; |
Packaging Detail: | Plastic film wrapping, cotton fixing and wooden box packing.; | Material: | Stainless Steel 304/316L; |
Condition: | New; | Voltage: | custom made; |
Weight: | custom made; | Port: | Shanghai; |
Package Preview: | ; | Certification: | custom made; |
Dimension(L*W*H): | custom made; | Processing: | Concentrator; |
Applicable Industries: | Food & Beverage Factory,Pharmaceutical, chemical engineering; | Supply Ability: | 30 Set/Sets per Month; |
Processing Types: | Juice; | Warranty: | 1 Year; |
Payment Terms: | L/C,D/P,T/T; | Brand Name: | Bingyu; |
Place of Origin: | China; |
Application:
The spherical concentrator is mainly suitable for the concentration and distillation of heat sensitive materials and the concentrated concentration extraction of organic solvents (such as alcohol) in Chinese and Western medicine, starch sugar, dairy food, bio-pharmaceutical, chemical and other industries, which can effectively reduce the active ingredients of heat sensitive materials. damage.
Characteristics:

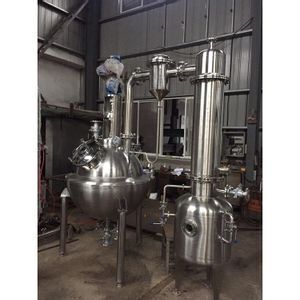

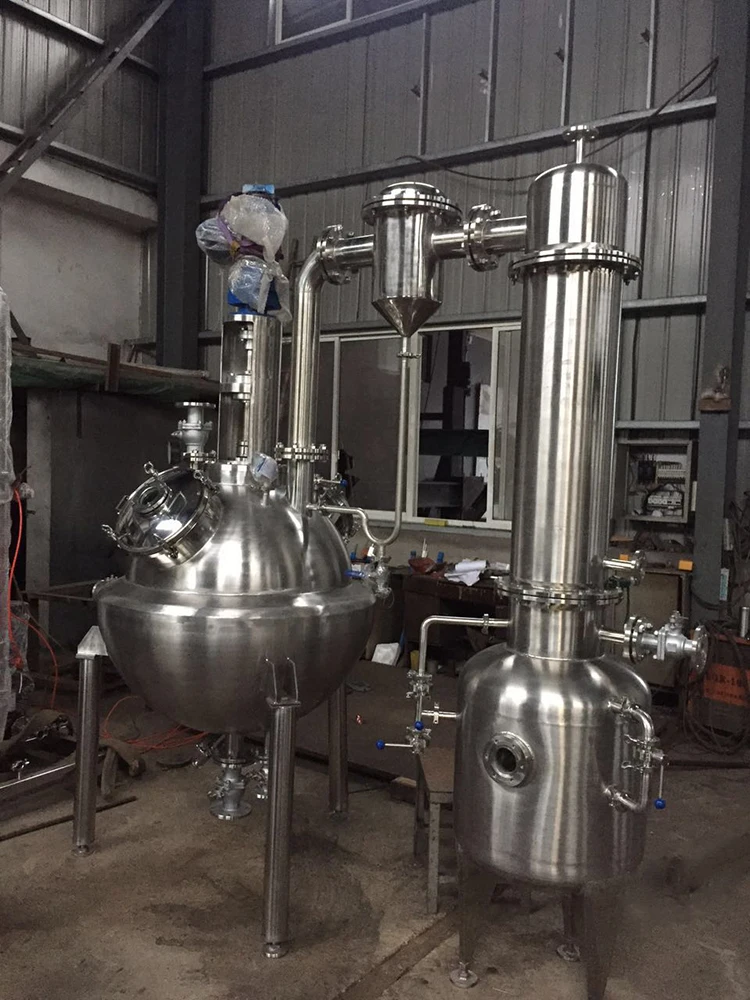

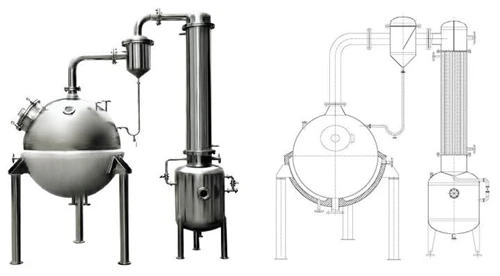

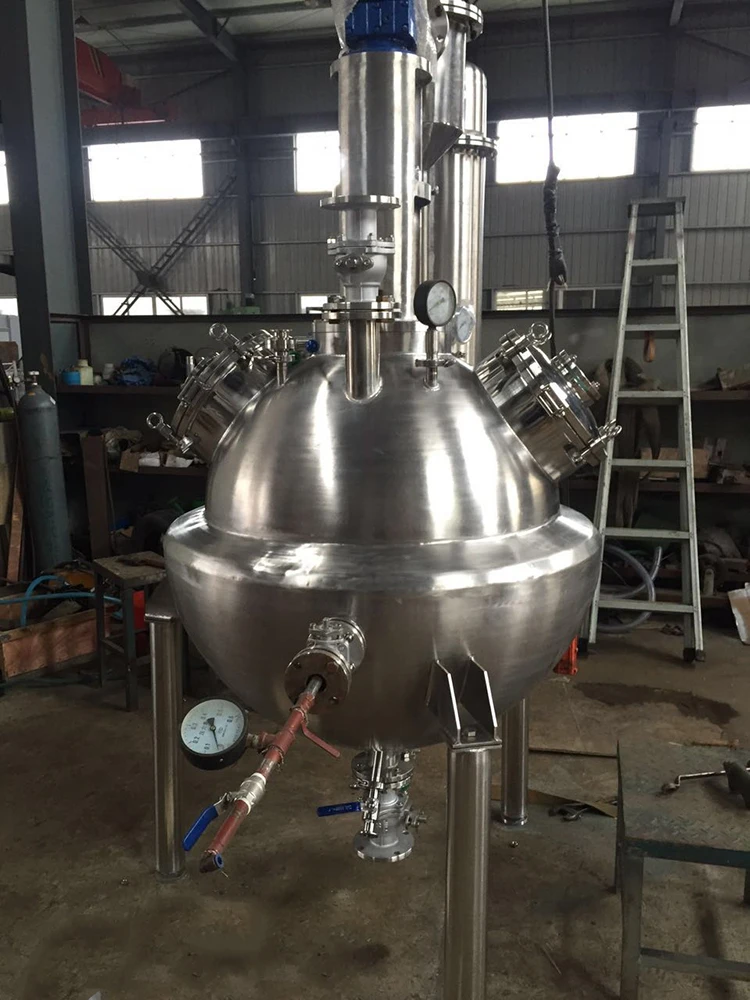

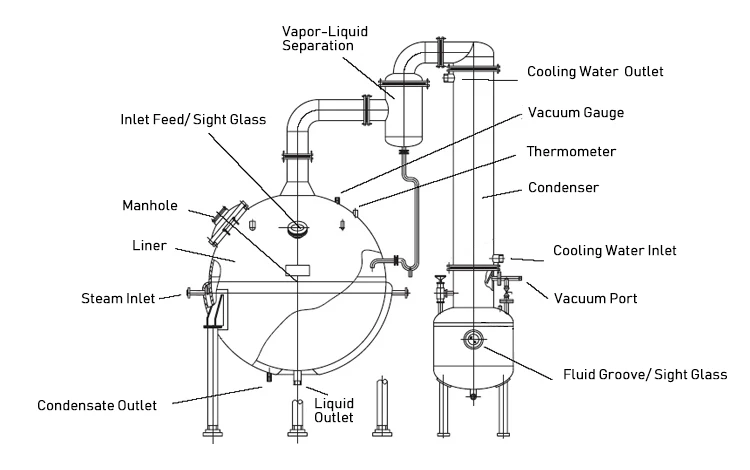

Concentrator totally contain beautiful material manufacturing of all adoption stainless steels of five specification parts concentration tank, condensator, gas-liquid separator, cooler and liquid receiving barrel. Concentration tank is of cilp sleeve structure. The condensator is of line pipe typr and the cooler is of tray pipe type, which can descend the adoption to mix blend to mix with such as the higher circumstance of concentrated degree or the development withdraw, and its result is better.
NO. | QN-300 | QN-500 | QN-700 | QN-1000 |
Evaporation Capacity(Kg/h) | 70 | 120 | 145 | 195 |
Voulume(L) | 300 | 500 | 700 | 1000 |
Pressure of jacket(Mpa) | 0.09 | |||
Vaccum Degree(mmHg) | 500-620 | |||
Heating area (sq.m) | 1.3 | 1.8 | 2.2 | 2.8 |
Condensing area (sq.m) | 4 | 5 | 6 | 8 |
Weight (kg) | 380 | 450 | 630 | 950 |
Dimension (L*W*H mm) | 1900*1100*2300 | 2030*1200*2500 | 2100*1300*2600 | 2335*1520*2760 |
The actual technical parameters of the equipment will be changed due to the needs of the equipment. The specific technical solutions we provide for you will prevail. |

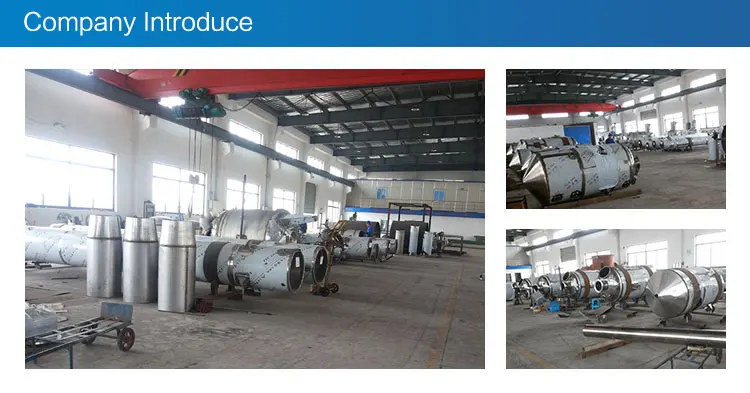

Shanghai Bingyu Technology Co. , Ltd. is a technology-oriented enterprise specializing in the design, manufacture, sales, and service of high-end equipment in the chemical, pharmaceutical, and environmental protection industries.The company has its own factory in shanghai, which has more than 8 years experience in production and it has the manufacturing workshop. Our products are sold in the United States, New Zealand, Germany, South Korea and other countries.The products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.The products are widely recognized and trusted by users and can meet continuously changing economic and social needs. We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
