Packaging Detail: | on spool, outside package by carton; | Supply Ability: | 10000 Meter/Meters per Day 10000; |
Model Number: | KHEC; | Feature: | heat shrink end cap; |
Port: | Guangzhou/Shenzhen; | color: | Black; |
Service: | OEM service; | Place of Origin: | Guangdong China; |
operation temperature: | -50 ℃ to 110℃; | Material: | PE; |
Payment Terms: | L/C,T/T,T/T in advance; | Min.full shrink temperature: | 120℃; |
Brand Name: | KOSOO; |

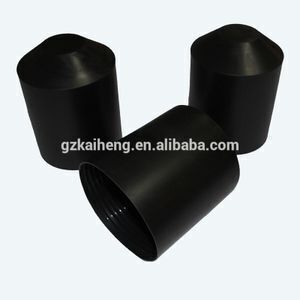

Heat shrinkable cable spiral adhesive coating end cap
Feature/Applications:
HSEC offers an economical means of sealing the end of power cable with a completely Watertight seal.The internal surface of the end cap has a layer of spiral coated hot melt adhesive,which retains its flexible properties after recovery.HSEC is recommended for application both in open air and on underground power distribution cables with PVC.Lead or XLPE sheaths.
Effectively offering protection against oxidation,Ozone,UV-rediation etc.
Coated with hot melt adhesive to ensure environment seal
Easily to fit into the cable end
Minimun fully shrink temperature :120℃.
Technical Data
Property |
Test Method |
Typical Data |
Operating temperature |
IEC 216 |
-55 to +110 ℃ ℃ |
Tensile strength |
ASTM D 638 |
>14MPa |
Elongation at break |
ASTM D 638 |
>400% |
Density |
ASTM D 792 |
1.05 |
Elongation at break after aging |
150 /168hrs.℃ |
>300% |
Dielectric strength |
IEC 243 |
>15kV/mm |
Volume resistance |
IEC 93 |
>1014 Ω. cm |
Product Dimension (standard length end caps)
Order ref.No. |
As supplied (mm) | After recovery(mm) |
Cable Diameter (mm) |
||||
D(Min) |
D(Max) |
A(±10%) |
L(±10%) |
DW(±5%) |
|
||
EC-12/4 |
12 |
4.0 |
15 |
40 |
2.6 |
4 -10 |
|
EC-14/5 |
14 |
5.0 |
18 |
45 |
2.2 |
5 -12 |
|
EC-20/6 |
20 |
6.0 |
25 |
55 |
2.8 |
6 -16 |
|
EC-25/8.5 |
25 |
8.5 |
30 |
68 |
2.8 |
10 - 20 |
|
EC-35/16 |
35 |
16.0 |
35 |
83 |
3.3 |
17 -30 |
|
EC-40/15 |
40 |
15.0 |
40 |
83 |
3.3 |
18- 32 |
|
EC-55/26 |
55 |
26.0 |
50 |
103 |
3.5 |
28 48 |
|
EC-75/36 |
75 |
36.0 |
55 |
120 |
4.0 |
45 -68 |
|
EC-100/52 |
100 |
52.0 |
70 |
140 |
4.0 |
55 -90 |
|
EC-120/60 |
120 |
60.0 |
70 |
150 |
4.0 |
65-110 |
|
EC-145/60 |
145 |
60.0 |
70 |
150 |
4.0 |
70-130 |
|
EC-160/82 |
160 |
82.0 |
70 |
150 |
4.0 |
90-150 |
|
EC-200/90 |
200 |
90.0 |
70 |
160 |
4.2 |
100-180 |
Extended length enc cap
KOSOO EC110L-14/5 |
14 |
5.0 |
30 |
55 |
2.2 |
5 -12 |
KOSOO EC130L-42/15 |
42 |
15.0 |
40 |
110 |
3.3 |
18 - 34 |
KOSOO EC140L-55/23 |
55 |
23.0 |
70 |
140 |
3.8 |
25 -48 |
OSOOK EC145L-62/23 |
62 |
23.0 |
70 |
140 |
3.8 |
25 -55 |
KOSOO EC150L-75/32 |
75 |
32.0 |
70 |
150 |
4.0 |
40 -68 |
KOSOO EEC150L-75/36 |
75 |
36.0 |
70 |
170 |
4.2 |
45 -68 |
KOSOO EC160L-105/45 |
105 |
45.0 |
65 |
150 |
4.0 |
50 -90 |

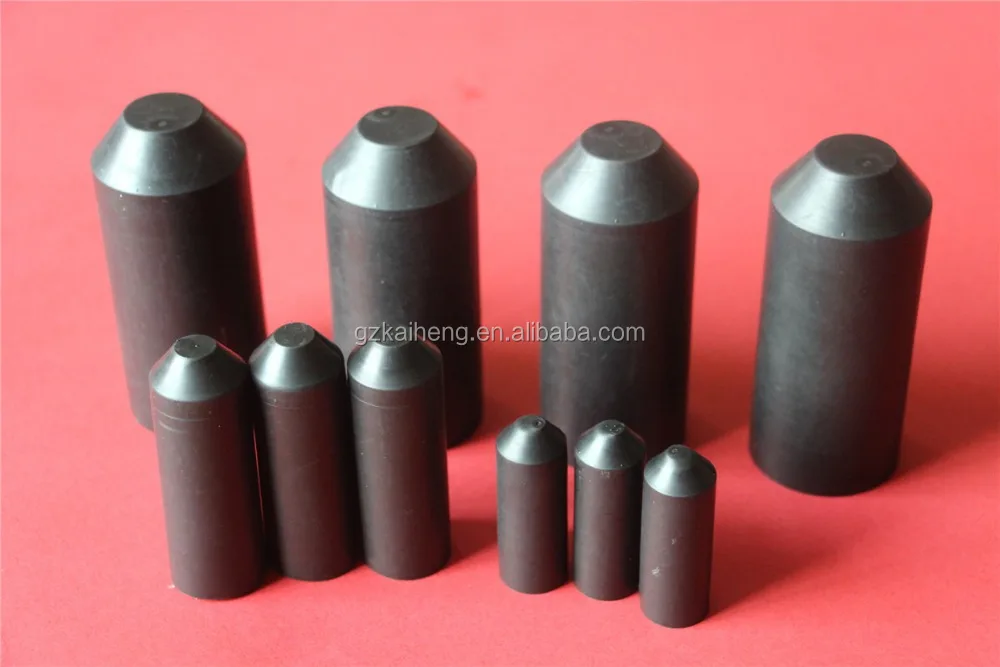

Pictures
