FISHER Old Brand ev charger manufactures SAE J1772 type 1 16A 5m level2 charging station for electric car

Supplier: Fisher Electonic Technology Co.,Ltd.
Region: Jiangsu, China
Contact: Mr Bill Yuan
Price: $98.00 / >=5 pieces
Min. Order: 5 pieces

Click here to contact

Product details

Packaging Detail:	Carton packing;	Single package size:	35X35X12 cm;
Voltage:	110-240V;	Contact Resistance:	0.5mΩ Max;
Plug model:	NEMA 10-30;	Single gross weight:	3.4 KG;
OEM:	OK;	Place of Origin:	Jiangsu China;
Insulation resistance:	>1000MΩ(DC500V);	Terminal temperature rise:	<50K;
Current:	16A;	Operating temperature:	-30℃~+50℃;
Charging standard:	SAE J1772;	Selling Units:	Single item;
Package Preview:	;	Cable length:	25FT;

16A

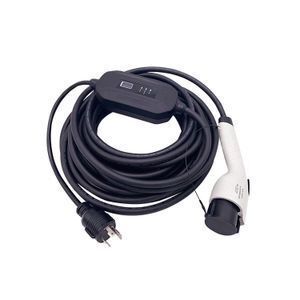

Product Name:16A single phase SAE J1772 Type1 LEVEL2 portable EV charger
Current:16A	Voltage:110V-240V/240V
Withstand voltage:2000V	*Mechanical life: No-load plug in/pull out>10000times
Material:High strength flame retardant nylon/PC UL94V-0	Usage:tesla ,leaf ,BMWi3i8,bolt ,volt ,golf,Zoe,Kona,outlander
Impat of external force:can afford 1m drop and 2t vehicle run over pressure	*Coupled insertion force:>45N<80N
Insulation resistance:>1000MΩ(DC500V)	Terminal temperature rise:<50K
Charging standard:SAE J1772	Contact Resistance:<0.5mΩ Max
contact bush:Copper alloy, silver plating	Operating temperature:-30℃~+50℃
Cable specification:3G2.5mm²+2*0.5mm²	Cable color:black or other
Certificate:CE FCC TUV ROHS	OEM:OK

Fisher Electronic Technology Co., LTD., founded in 2007, located in the beautiful scenery of the Jiangnan water village - Changzhou, Jiangsu province, our company is a high tech enterprises research, development, production and sales as a whole, Always with a strong sense of responsibility and mission committed to technology research and development and manufacturing of electric vehicles and charging, battery connection system. Industrial chain mature and complete, from product design, mold design and manufacturing, plastic molding, machining, precision casting and assembly line, on-line testing capabilities fully complete; product line covers: AC EV charging cable, AC portable EV charger(charging box).EV charging stations.
