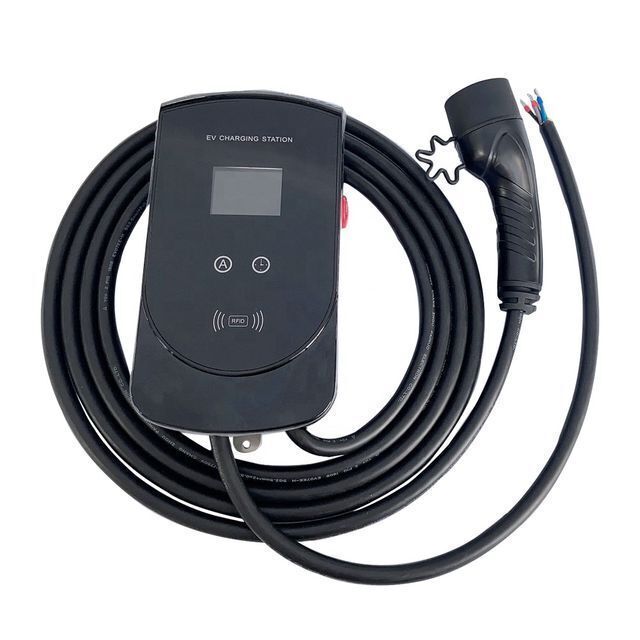

Factory OEM Type 1 Type 2 Vehicle Car Charging Station Pile Wallbox Ev Charger Station for Car Wallbox 7KW

  • Supplier: Fisher Electonic Technology Co.,Ltd.
  • Region: Jiangsu, China
  • Contact: Mr Bill Yuan
  • Price: $270.00 / 1 - 4 pieces
    $240.00 / 5 - 49 pieces
    $220.00 / 50 - 499 pieces
    $198.00 / >=500 pieces
  • Min. Order: 1 piece
Click here to contact
Product details
Rated Current:32A;Brand Name:Fisher;
Selling Units:Single item;Coupled insertion force:>45N<80N;
Charging standard:IECIEC62196-2,IEC62752,IEC61851-1;Operating temperature:-30℃~+50℃;
Package Preview:;Single package size:45X45X17 cm;
Withstand voltage:2000V;Place of Origin:Jiangsu China;
Operating Voltage:250V;Insulation resistance:>1000MΩ(DC500V);
Mechanical life:>10000times;Packaging Detail:Carton packing;
Single gross weight:6.0 KG;Contact Resistance:0.5mΩ Max;
Model Number:FE-AM3-32;Terminal temperature rise:<50K;

 EV Charger Cable Wall Holder with Hook For Type2 EVSE IEC 62196-2 Connector Station Waterproof



Product Description







name
wallbox
Socket Type
IEC 62196
Rated Voltage
250V AC
RFID User Access Control
Integrated
LED Status Indication
14.1 ounces
Certificate
 CE
Degree of Protection
IP65
Operating Temperature
-25°C ~ +50°C
Cable length
5 meters
Max Output Power
7KW

Power
7.2 kW/11KW/22kw
Start method
plug and charge, RFID card
Power Supply
110-250V

For more accessories check here

Apply to Vehicle



Nissan LEAF, Nissan eNV-2000, VW eGolf Chevy Volt, Chevy Bolt, Chevy Spark Toyota Prius Plug-In, Prius Prime,Toyota Rav4 EV Hyundai Ioniq,Kia Soul EV, Mercedes B Class Electric Drive,BMW i3 and i8 Ford Focus Electric, Ford C-Max Energy, Ford Fusion Energy, Fiat 500e ZERO motorcycle , Brammo motorcycle ,Smart Electric Drive, Karma Fisker, Mitsubishi iMiev, Cadillac ELR Porsche Cayenne S-E, Porsche Panamera S-E ,Honda Accord Plug-In Hybrid, Honda Fit EV ,Smart ,Honda

Tesla Model S, Tesla Model X (* need to use with Tesla charging adapter)

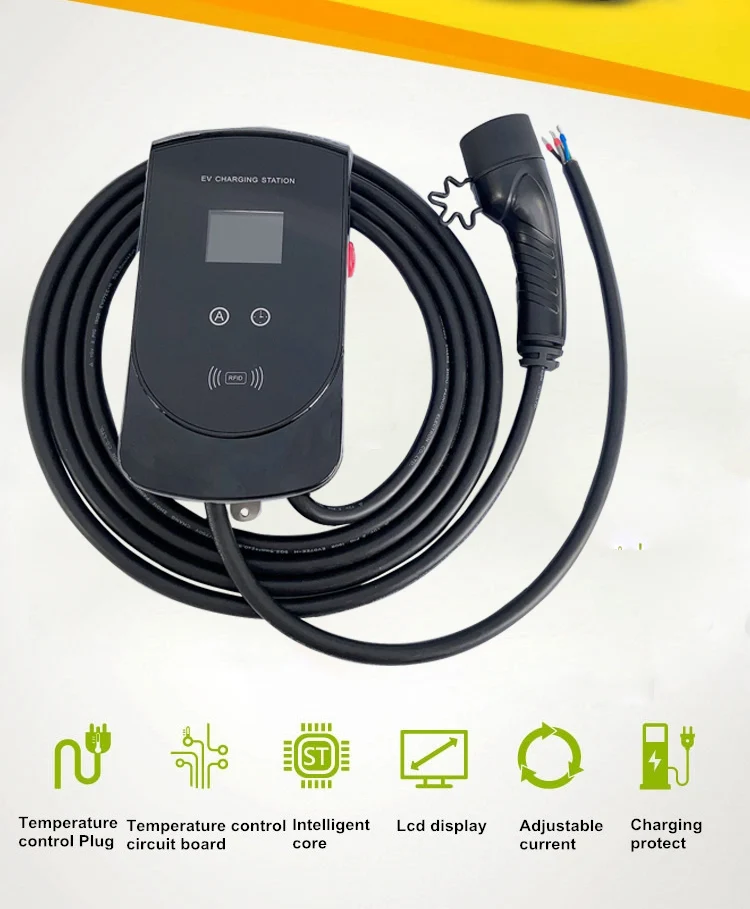

Product Feature



1.Conform to the provisions and requirements of  IEC 62196-3.

2.High compatibility. It can charge all EVs with Type 1 inlets, correctly and effectively

3.Easy operation. Simply connect the plug with the EV’s inlet, then the charger will automatically detect the connection status and handshaking protocol automatically, and starts charging

4.Switchable currents. Customers can choose an appropriate charging current according to the demand

5.High security. It has passed all tests of TUV. There are all kinds of protective measures to ensure the safety for every user

6.Containing the intelligent chip. It can automatically repair minor charging problems while charging. When a fault occurs, the lights will 7.blink in different ways to indicate different problems.

8.You are able to install the charger indoor or outdoor. Firmly locking the charger on the installation backplane can prevent theft.

9.We are a factory providing OEM/ODM services





application



How to use  EV wallbox

1. Firstly, the most important step is to make sure the charger is well connected to the power.
2. Secondly, use the integrated Type 2 charging cable plug to connect the charging station with your electric vehicle.
3. Once the charging cable has clicked in place you are ready to start the charge.
4. Also, there is the option to activate the charging station with RFID cards.
How to stop the charging
1. Firstly, disconnect the Type 2 plug from the electric vehicle’s side when you finish charging.
2. If you wish to manually stop the charging you can do this by pressing the Emergency Button (the red button on the side of the charger) in case of an emergency.
How to check the charging status
1. You can monitor the charging process in real time from the LED screen display.







How to maintain the station



The charging station is the lifeline of your electric vehicle and is important to keep it protected. Install the charging station in a dry area. Moisture in the contacts will result in the cable not working. If this happens let the cable to dry for 24 hours. Avoid to have the station outside in direct sunlight. Dust and dirt also will result in the cable not charging. For longevity, ensure that your charging cable is not twisted or excessively bent when not in use.




Company Information



About the factory









What Advantage of our












 Our certificate





Our Services



We will reply you in 12 hours
T/T,Paypal,and Western Union payment terms all accepted.

Shipment:By air,By sea,By International express (DHL,Fedex,)

Delivery time:Normally 15 days after payment received.

Port of loading: jiangsu

Guarantee Period: Within 12 months after shipment.

Provide operating guide (instruction)

Customized design,sample and packing according to clients requirement, If have special request







FAQ

Q1. What is your terms of packing?

A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of delivery?

A: FOB, CFR, CIF, DDU.

Q4. How about your delivery time?

A: Generally, it will take 3 to 25 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you produce according to the samples?

A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery

Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
