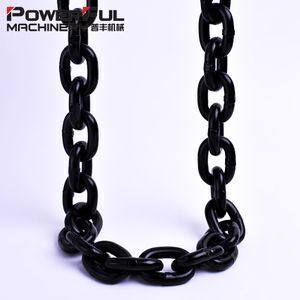

DIN EN 818-2 g80 lifting alloy steel heavy duty industrial lifting chain

Click here to contact

Product details

Port:	QINGDAO;	Brand Name:	POWERFUL;
Place of Origin:	Shandong China (Mainland);	Packing:	Packed in iron drums then on pallets;
Mark:	G80;	Grade:	80;
Standard:	DIN EN 818-2;	Model Number:	DIN EN 818-2;
Material:	Alloy;	Structure:	Welded Chain;
Delivery date:	20days;	Machine:	Made by automatic machine;
Function:	LIFTING;	Surface:	self color, painted,galvanized, electorphoric;
Dia:	6MM-45MM;	Material:	Alloy;
Standard or Nonstandard:	Standard;	Packaging Detail:	DIN EN 818-2 alloy steel industrial heavy duty g80 lifting chain KEYWORDS g80 lifting chain PACKING: 1.nude packed :packed in bundles 2.packed in iron drums then on pallets 3.packed in woodencase 4.requied by the cllent DELIVERY: 15-30days according to the quantity of order.;
Supply Ability:	100 Ton/Tons per Month;	keywords:	lifting chain;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,negotiate;

Product Description

1.Material: alloy
2.Surface: self color, painted,galvanized, electorphoric

3.Grade:80

4.Made by automatic machine

5.Standard: DIN EN 818-2

Specifications

1.Commodity description	DIN EN 818-2 alloy steel industrial heavy duty g80 lifting chain
2.Category	Chain
3.Standard	G80 lifting chain, DIN EN 818-2
4.Material	Alloy steel
5.Keywords	g80 lifting chain
6.Surface treatment	self colored, black oxide finish, yellow painted, red painted
7.Technology	welded, made by full- automatic machine
8.Size	6mm-45mm
9.MOQ	100meter
10.Supply ability	100Ton per month
11.Packing	1.nude packed :packed in bundles 2.packed in iron drums then on pallets 3.packed in woodencase 4.requied by the client
12.Delivery time	as the quantity in order, 15-30days
13.Payment term	30% deposit prepaid after confirmed PI, the balance against copy of BL before cargo arrival. Or negotiated with clients

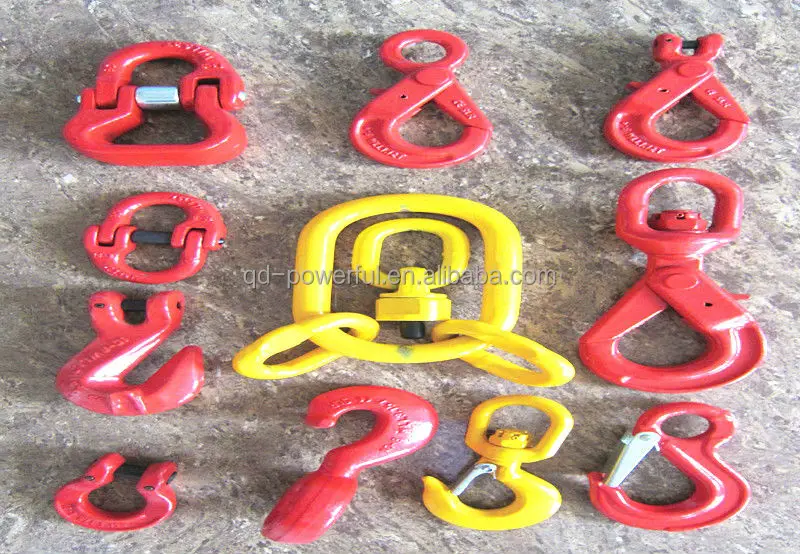

14.Main products	anchor chains, NACM standard chains, G80 lifting chains, G100 lifting chains, DIN5685 /DIN766/DIN763 chains decoretive chains. shackles , turnbuckles, wire rope clips, pulley blocks, load binders, bolts and nuts, quick links , snap hooks, swivels, wire rope thimbles, ferrules and sleeves
15.Company name	QINGDAO POWERFUL MACHINERY CO.,LTD
16.Experience	17years experience in the area of chains and rigging hardware
17.Main market	the United States, Europe, Mid East, Southeast Asia
18.our advantage	1)more than 15 years experience in the area of chains and rigging hardware
	2)quick react to your inquiry and email at the first time
	3)provide best price, good quality and my team will supply best seivice

Product Illustration

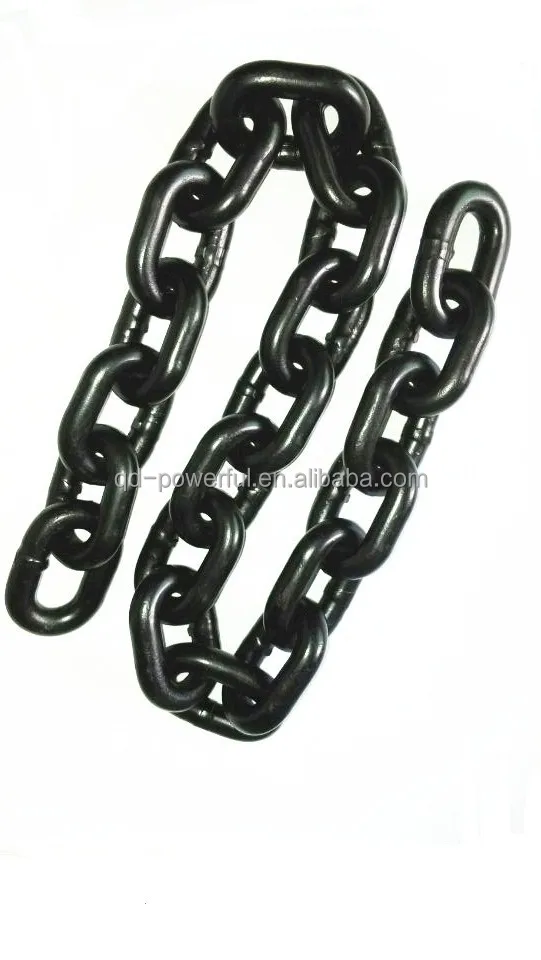

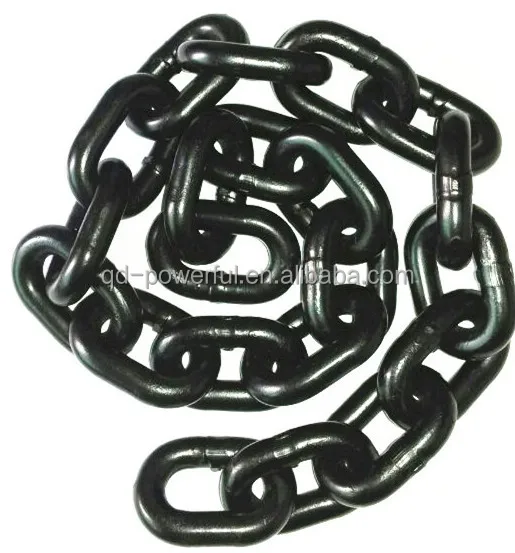

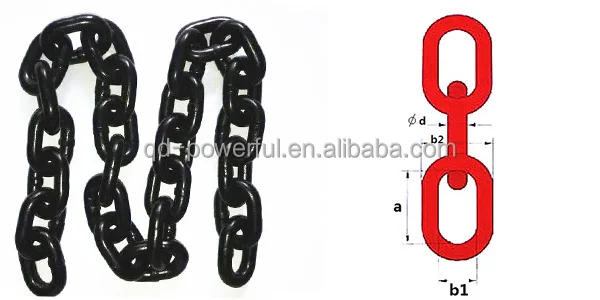

DIN EN 818-2 alloy steel industrial heavy duty g80 lifting chain
SIZE	INSIDE LENGTH	INSIDE WIDTH	WLL	BREAKING PROOF FORCE		WEIGHT
MM	MM	MM	TON	MPF(KN)	BF(KN)	KG/M
6	18	7.8	1.12	28.3	45.2	0.8
7	21	9.1	1.5	38.5	61.6	1.1
8	24	10.4	2	50.3	80.4	1.4
10	30	13	3.15	78.5	126	2.2
13	39	16.9	5.3	133	212	3.8
16	48	20.8	8	201	322	5.7
18	54	23.4	10	254	407	7.3
20	60	26	12.5	314	503	9
22	66	28.6	15	380	608	10.9
26	78	33.8	21.2	531	849	15.2
28	84	36.4	25	616	985	17.6
32	96	41.6	31.5	804	1290	23
36	108	46.8	40	1020	1630	29
40	120	52	50	1260	2010	36
45	135	58.5	63	1590	2540	45.5
