Supply Ability: | 50 Set/Sets per Month; | Warranty: | 1 Year; |
Core Components: | Bearing,Motor; | Machinery Test Report: | Provided; |
After Warranty Service: | Video technical support,Online support,Spare parts; | Style: | GXF-; |
Product Name: | industrial steam heated dyeing machine selling; | Power: | 1.5KW-11KW; |
Showroom Location: | None; | Brand Name: | TONGYANG; |
Local Service Location: | None; | Voltage: | 220V/380/415V; |
Automatic Grade: | Automatic; | Certification: | CE and ISO,CE and ISO 9001; |
Place of Origin: | Jiangsu China; | Material: | 304,316SS; |
Dimension(L*W*H): | 2300X1300X1800MM; | Packaging Detail: | the package of :industrial steam heated dyeing machine selling Export standard packing; |
Weight: | 300KG-3000KG; | Payment Terms: | L/C,T/T,Western Union; |
Applicable Industries: | Other; | After-sales Service Provided: | Free spare parts,Video technical support,Online support; |
Condition: | New; | Video outgoing-inspection: | Provided; |
Marketing Type: | New Product 2020; | Function: | washing and dyeing; |
Port: | Shanghai; | Heating: | steam.electric; |
Warranty of core components: | 1 Year; |

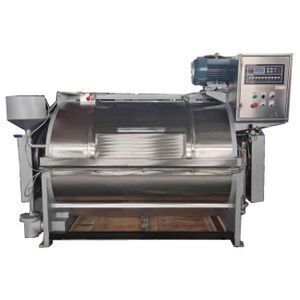

industrial steam heated dyeing machine selling
Type |
Max.washing capacity |
Drum Dimensions | Rotate speed | Power | steam pressure | Overall dimensions |
GXF-30 | 30kg | φ660x800mm | 36r/min | 1.1kw | 0.4-0.6Mpa | 1520x1100x1300mm |
GXF-50 | 50kg | φ800x980mm | 36r/min | 1.5kw | 1750x1200x1500mm | |
GXF-70 | 70kg | φ950x1220mm | 34r/min | 2.2kw |
2050x1300x1700mm |
|
GXF-100 | 100kg | φ960x1420mm | 34r/min | 3kw | 2300x1300x1800mm | |
GXF-150 | 150kg | φ1060x1650mm | 33r/min | 4kw | 2500x1400x1800mm | |
GXF-200 | 200kg | φ1080x2000mm | 32r/min | 5.5kw | 2900x1400x1900mm | |
GXF-300 | 300kg | φ1300x2280mm | 28r/min | 7.5kw | 3200x1930x2200mm | |
GXF-400 | 400kg |
φ1220x3360mm |
28r/min | 11kw | 4300x1900x2100mm |
