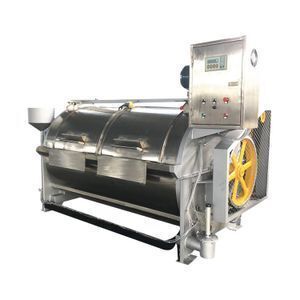

professional 400kg dyeing machine with good price

Product details
Dimension(L*W*H):2300X1300X1800MM;After Warranty Service:Video technical support,Online support,Spare parts;
Automatic Grade:Automatic;Packaging Detail:the package of :professional 400kg dyeing machine with good price Export standard packing;
Style:GXF-400;Port:Shanghai;
Marketing Type:New Product 2020;Condition:New;
Machinery Test Report:Provided;Weight:300KG-3000KG;
Certification:CE and ISO,CE and ISO 9001;Supply Ability:50 Set/Sets per Month;
Brand Name:TONGYANG;Product Name:professional 400kg dyeing machine with good price;
Function:washing and dyeing;Showroom Location:None;
Core Components:Bearing,Motor;Warranty of core components:1 Year;
Material:304,316SS;Warranty:1 Year;
Place of Origin:Jiangsu China;Heating:steam.electric;
Payment Terms:L/C,T/T,Western Union;Local Service Location:None;
Applicable Industries:jeans factory;After-sales Service Provided:Free spare parts,Video technical support,Online support;
Power:1.5KW-11KW;Voltage:220V/380/415V;
Video outgoing-inspection:Provided;

professional 400kg dyeing machine with good price

Type

Max.washing

capacity

Drum Dimensions Rotate speed Power steam pressure Overall dimensions
GXF-30 30kg φ660x800mm 36r/min 1.1kw 0.4-0.6Mpa 1520x1100x1300mm
GXF-50 50kg φ800x980mm 36r/min 1.5kw 1750x1200x1500mm
GXF-70 70kg φ950x1220mm 34r/min 2.2kw

2050x1300x1700mm

GXF-100 100kg φ960x1420mm 34r/min 3kw 2300x1300x1800mm
GXF-150 150kg φ1060x1650mm 33r/min 4kw 2500x1400x1800mm
GXF-200 200kg φ1080x2000mm 32r/min 5.5kw 2900x1400x1900mm
GXF-300 300kg φ1300x2280mm 28r/min 7.5kw 3200x1930x2200mm
GXF-400 400kg

φ1220x3360mm

28r/min 11kw 4300x1900x2100mm
